1,000 Litre High Shear Mixing Vessel








1,000 Litre High Shear Mixing Vessel
Specification
Description

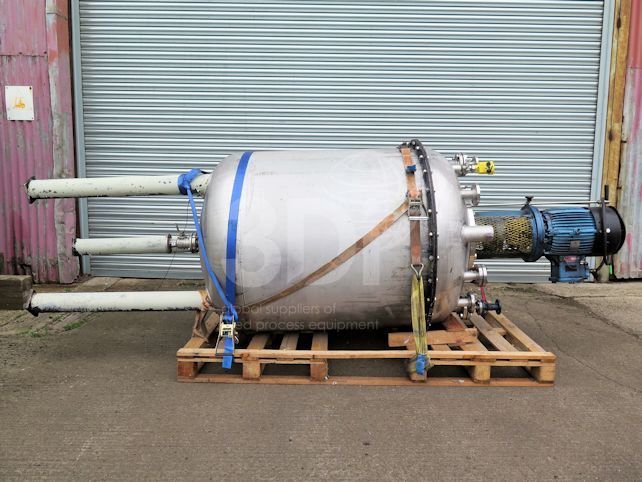

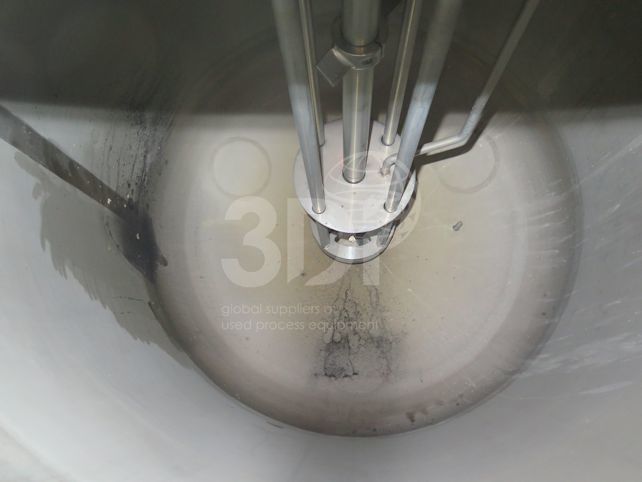

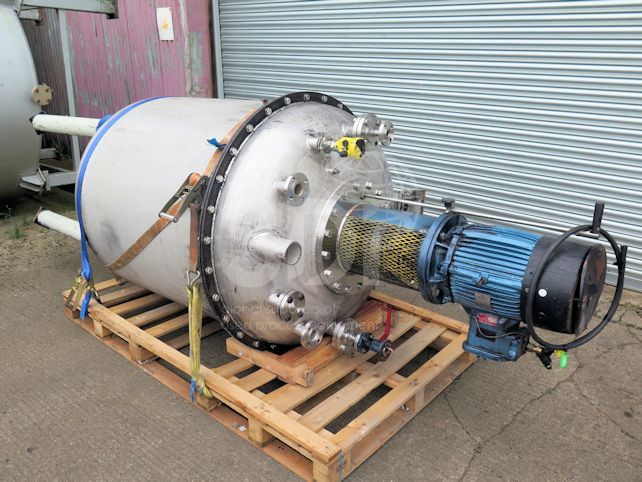

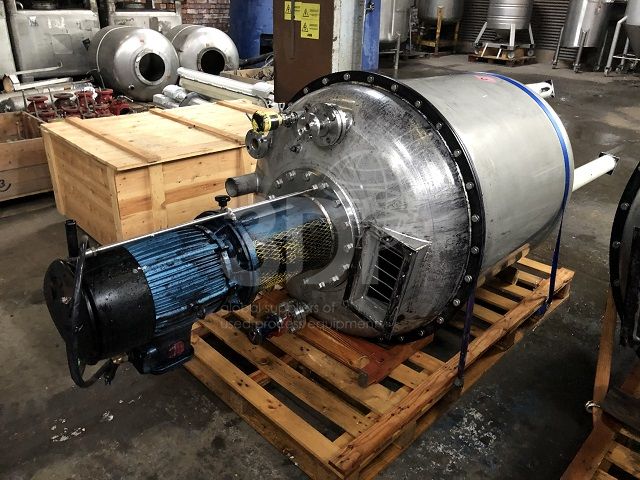

Used 1,000 Litre High Shear Mixing Vessel, manufactured by Ai Process Systems Ltd, 1998. Material of construction vessel 304 stainless steel. Orientation vertical, cylindrical, dishes ends. Support on legs. Dimensions 1100mm diameter, 1000mm on the straight, 300mm dished ends, 3600mm overall height. Tank is fitted with a top mounted Ai Mixing Systems high shear batch mixer, model GM15, powered by a 11kw Brook Hansen flameproof electric motor (3ph, 415v, 50hz, 2940rpm, EEx d 11B T4). Previously used to mix inks.
