10,000 Litre Stainless Mixing Tank #2473

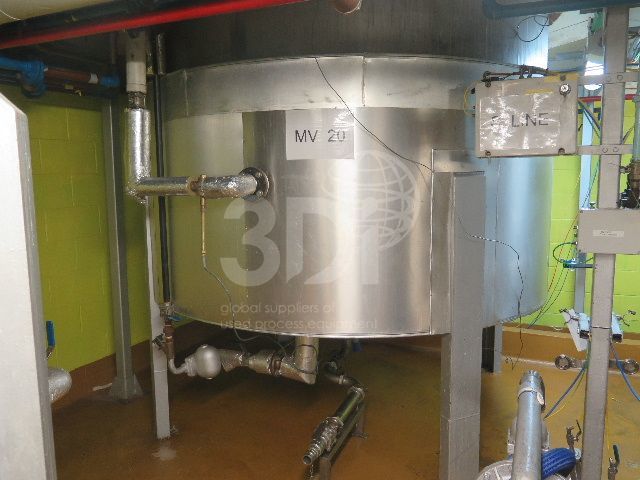

Used 10,000 Litre Stainless Mixing Tank, manufactured by Northern Fabrications. Material of construction 304 stainless steel. Orientation: vertical, cylindrical, flat top and dished bottom. Supported on 4 steel legs. Dimensions: 2100mm internal diameter, 2200mm on the straight, 2550mm overall diameter, 4450mm overall height. Tank is fitted with 9 wraps of 3 inch stainless steel internal coil. The tank has a top mounted off centre twin flighted 6 blade turbine agitator model, which is powered by a 7.5kw CEMP ATEX variable speed electric motor (3ph, 50hz, 400/690v, 1460rpm).
