10,000 Litre Stainless Mixing Tank #2474

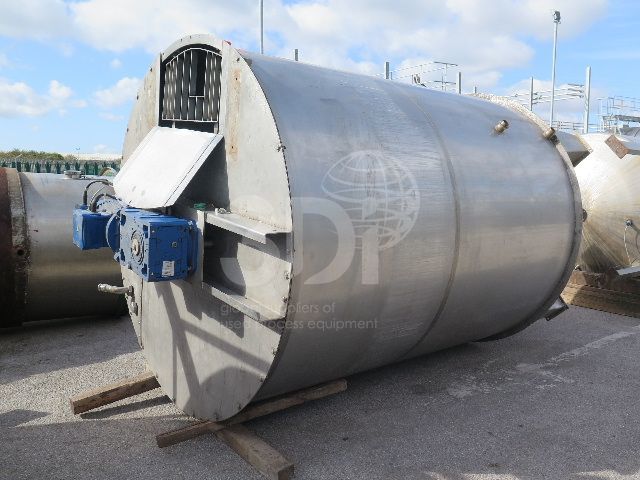

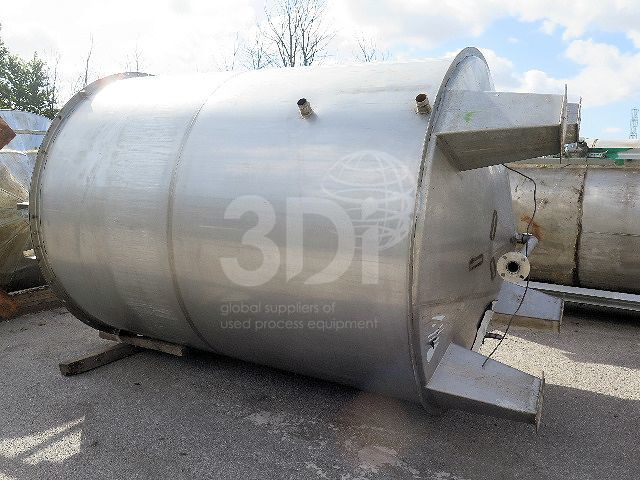

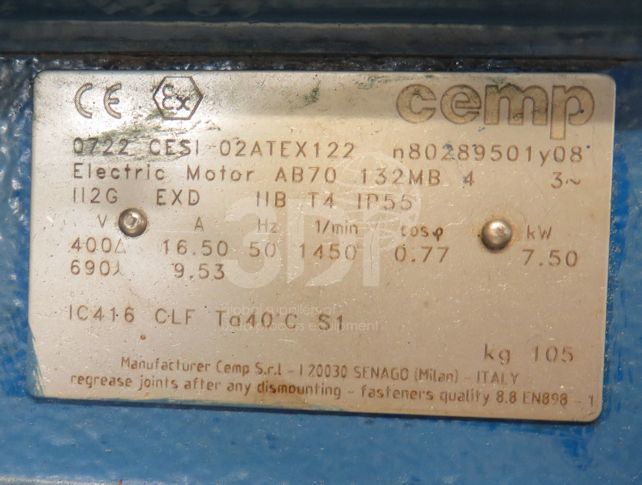

10,000 Litre Stainless Mixing Tank, manufactured by Vesseltec UK Ltd, 2008. Material of construction 316 stainless steel. Orientation vertical, cylindrical, flat bolted top, dished bottom. Supported 4 stainless steel legs. Dimensions: 2200mm internal diameter, 2700mm on the straight, 300mm bottom dish, 3900mm overall height. Design code PD5500, work pressure atmospheric, coil working pressure 3bar. Tank is fitted with 6 wraps of 2.5inch internal heating/cooling coil, coil is bracketed internally. Tank has a hinged opening lid with internal safety grid. Above the lid is an extraction hood. Tank is fitted with mounting bridge upon which the agitator, gearbox and motor sits. The tank has a top mounted off centre twin flighted 6 blade disc turbine agitator, powered by a 7.5kw CEMP variable speed ATEX electric motor. Agitator has bottom steady bearing fitted. Previously used on personal care products.
