10,000 Litre Stainless Steel Mixing Tank

10,000 Litre Stainless Steel Mixing Tank

Stock #2748
Out of stock

Contact us about your equipment needs

Specification

Capacity: 10000 litres
Condition Used
Material 316 Stainless Steel

Description

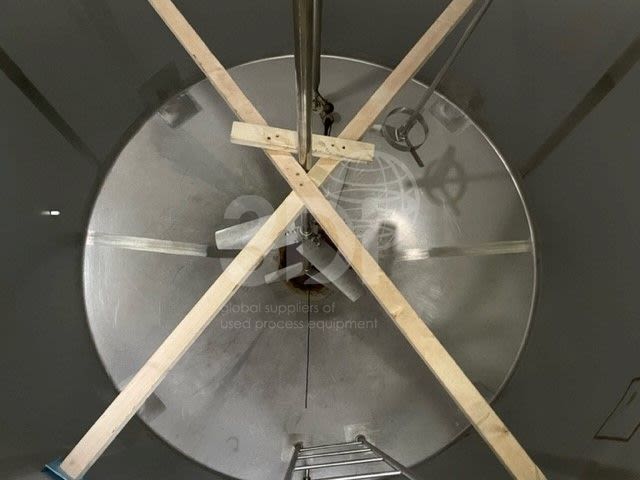

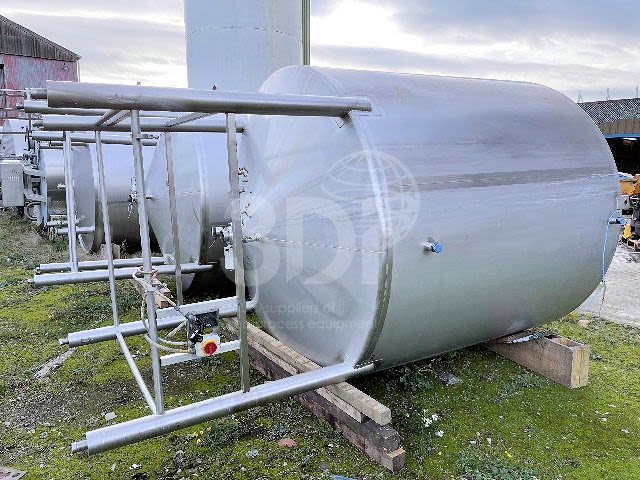

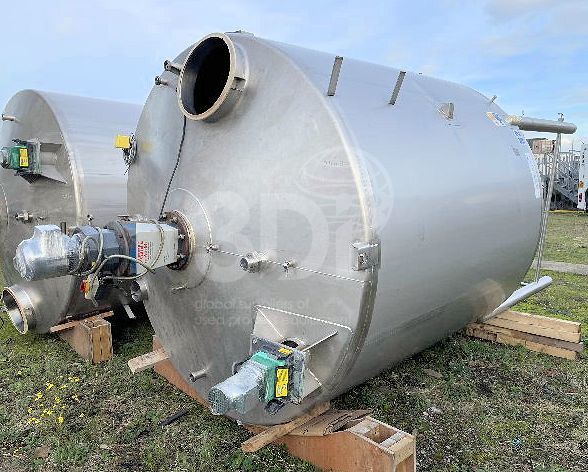

Used 10,000 Litre Stainless Steel Mixing Tank, manufactured by Moody PLC, 1999. Material of construction 316 stainless steel. The mixing tank is vertical, cylindrical, dished top and bottom and supported on 4 stainless steel legs. Dimensions 2500mm diameter, 2250mm on the straight, 5100mm overall height. The tank is fitted with a top mounted centre twin flighted 3 blade Mixertech turbine agitator powered by a 1.1kw electric motor (88 rpm). The tank also has a top mounted off centre 3 blade Lightnin turbine agitator which is powered by a 0.37kw Brook Crompton electric motor.  Connections 1 x 70mm RJT centre bottom outlet, 2 x 2 inch high level spray ball, 1 x 2 inch high and low level spray ball, 1 x 2 inch top inlet, 1 x top man way, 1 x 6 inch top vent. Tank was previously used to mix beverages.
