10,000 Litre Stainless Steel Mixing Vessel

Stock #1224
1 in stock

Specification

Capacity: 10000 litres
Condition Used
Material 316 Stainless Steel
Industry Food and Beverage

Description

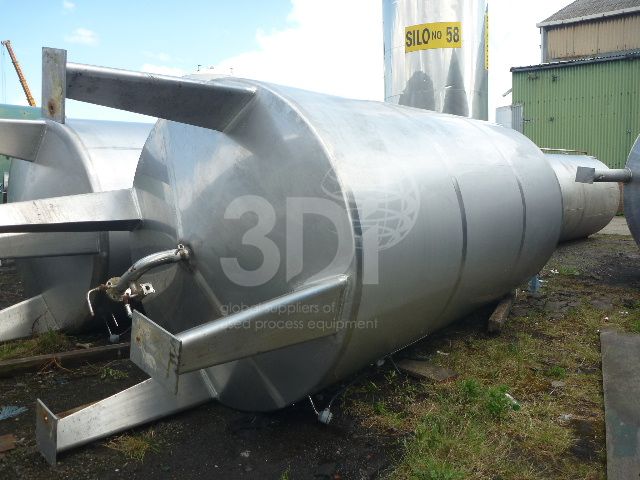

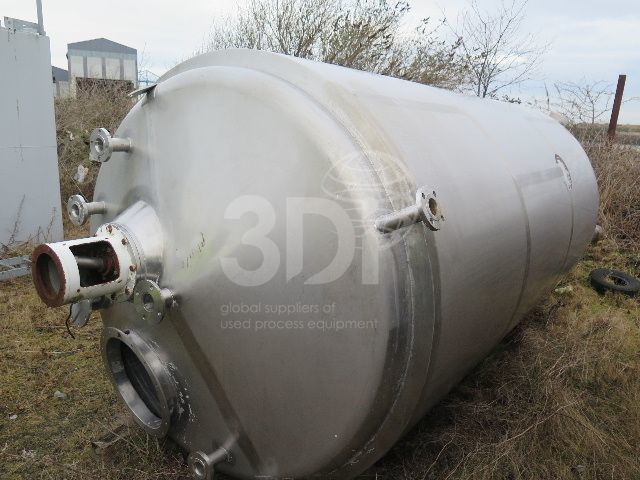

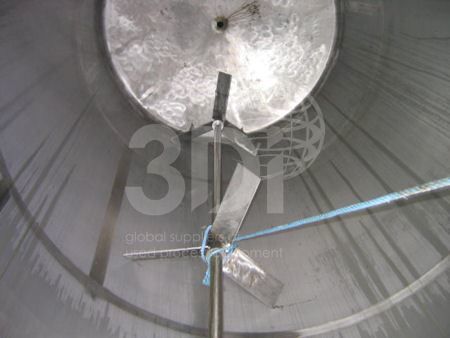

Used 10,000 Litre 316 Stainless Steel Mixing Vessel. Orientation: vertical, cylindrical. dished top, coned bottom, on 4 legs. Electrically heated, lagged & clad. Dimensions: 1900mm internal dia, 3800mm on the straight, 150mm coned bottom and dished top, 600mm bottom ground clearance, 6500mm overall length, 2100mm overall diameter. Complete with top mounted twin flight triple blade turbine agitator driven by 1.5kw electric motor and drive, 1400rpm/55rpm. Connections: (1) 500mm top man way, (1) 50mm bottom outlet, (5) 50m top inlets, (1) 80mm centre top inlet. Previously used on a food process.
