10,590 Litre Stainless Jacketed Mixing Vessel

Stock #2543
2 in stock

Specification

Capacity: 10590 litres
Condition Used
Manufacturer Prominox
Build Year 1996
Material 316 Stainless Steel

Description

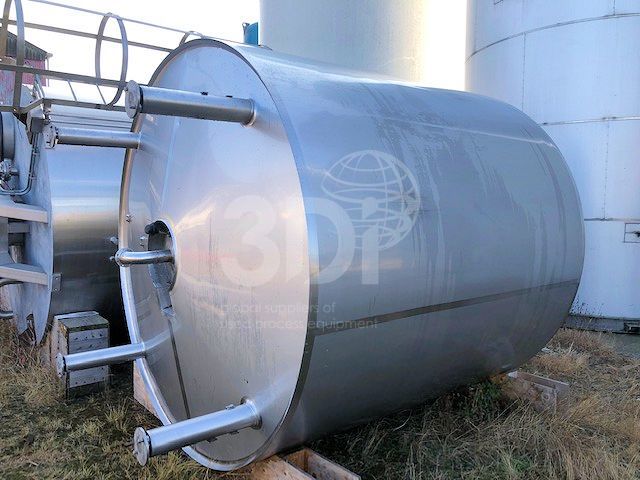

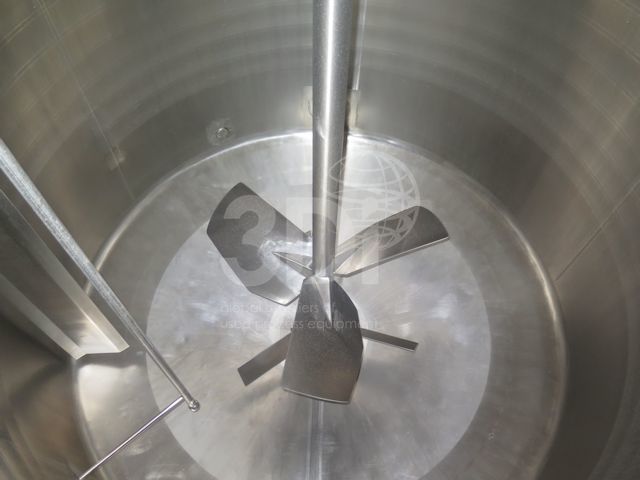

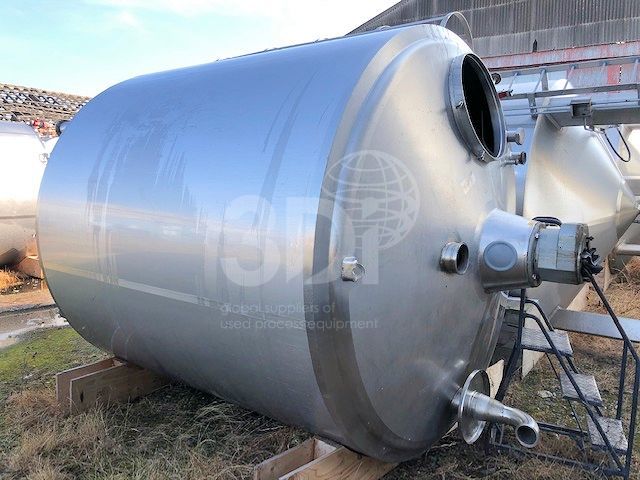

Used 10,590 Litre Stainless Jacketed Mixing Vessel, manufactured by Prominox, 1996. Material of construction 316 stainless steel. Orientation vertical, cylindrical, dished top and bottom, supported on stainless steel legs. Dimensions 2400mm diameter, 4400mm tall. Vessel is externally jacketed and insulated in stainless steel with a jacket working pressure of 3 bar. Jacket test pressure 4.5 bar. Vessel working pressure is atmospheric. Vessel is fitted with a top mounted twin flighted turbine agitator and driven by a 3kw SEW Eurodrive electric motor (55rpm). Previously used in the food and beverage industry.
