1,117 Litre Jacketed Mixing Vessel








1,117 Litre Jacketed Mixing Vessel
Specification
Description

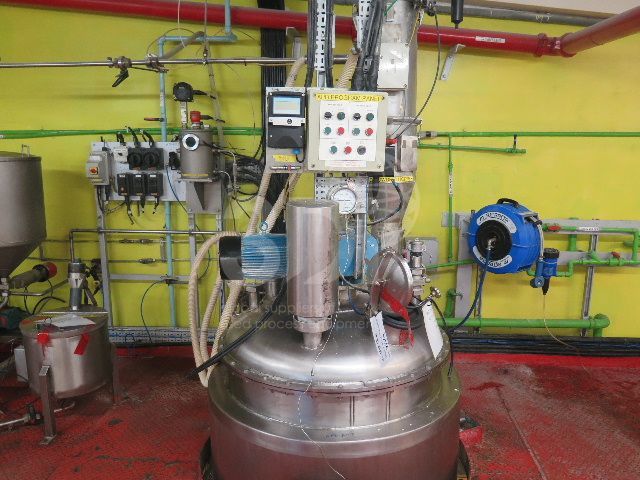

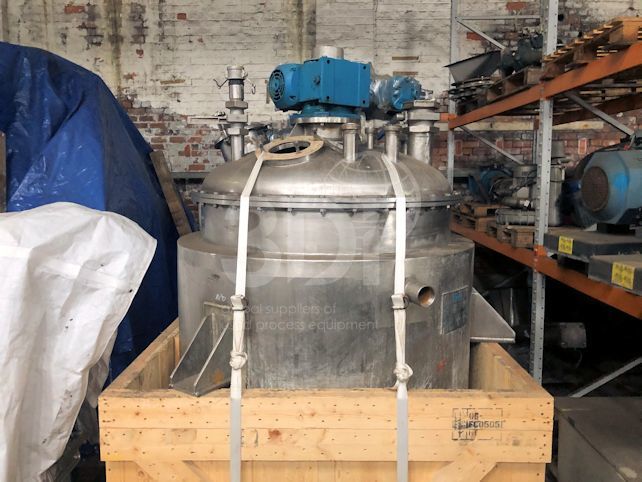

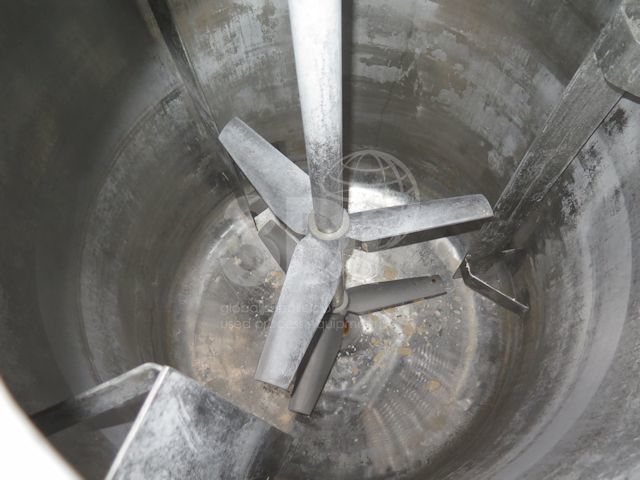

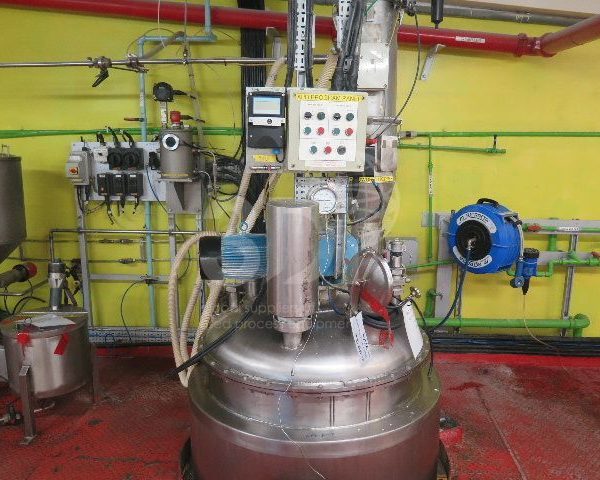

Used 1,117 Litre Jacketed Mixing Vessel, manufactured by Longclose, 1998. Material of construction 316 stainless steel. Orientation vertical, cylindrical, dished top and bottom. Support on 3 side supports. Dimensions 1000mm internal diameter, 1190mm overall diameter, 1300mm on the straight. Design code GMP, design pressure static, jacket design pressure 3.3bar, design temperature 50degC. Vessel is fitted with a top mounted twin flighted 3 blade turbine agitator, powered by a 3kw electric motor. Previous used in the production of antiperspirant deodorants.
