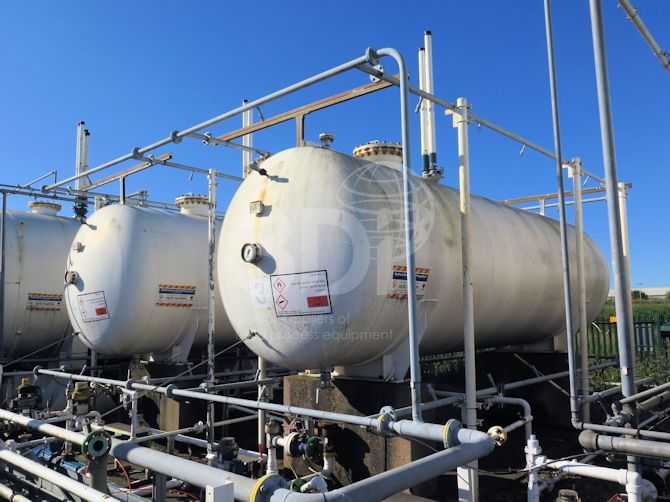

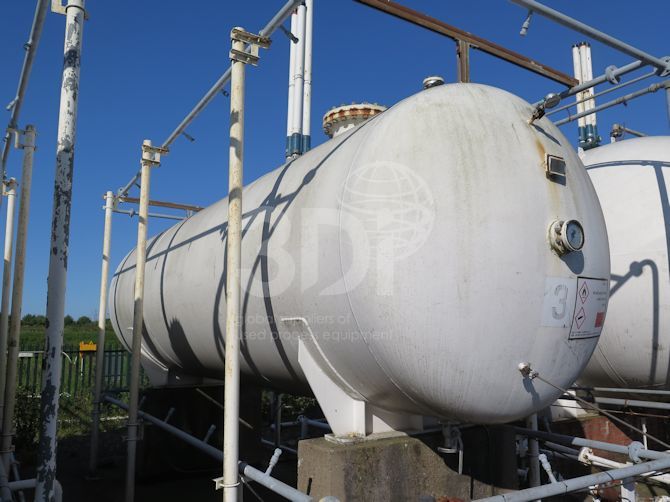

12 Tonne LPG Storage Vessel
Used 12 Tonne LPG Storage Vessel, manufactured by A.J.Dijksman B.V, 1988. Serial no. F-1423-4. Water capacity 29,000 Litres. Design code BS5500: 1988 Cat 2, operating pressure 14.5bar, test pressure 18.1bar, design temp -40/+42degC. Dimensions 2200mm internal diameter, 6350mm tan to tan, 590mm dished ends, 7530mm overall length. Tank is supported on two cradles. Previously used to store unstenched Hydrocarbon aerosol propellant grade 40 (Butane, Isobut, Propane). Vessel is currently in test till 2022.
