12,000 Litre Stainless Steel Reactor

Stock #2025
Not in stock

Contact us about your equipment needs

Specification

Capacity: 12000
Condition Used
Manufacturer Stainless Steel Plant
Material Stainless Steel
Industry Chemical

Description

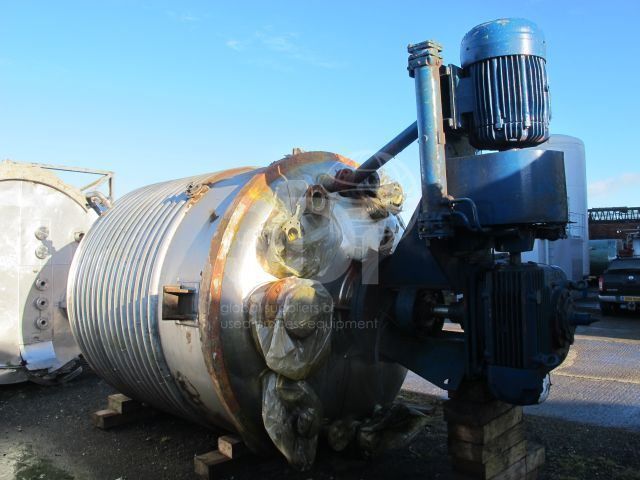

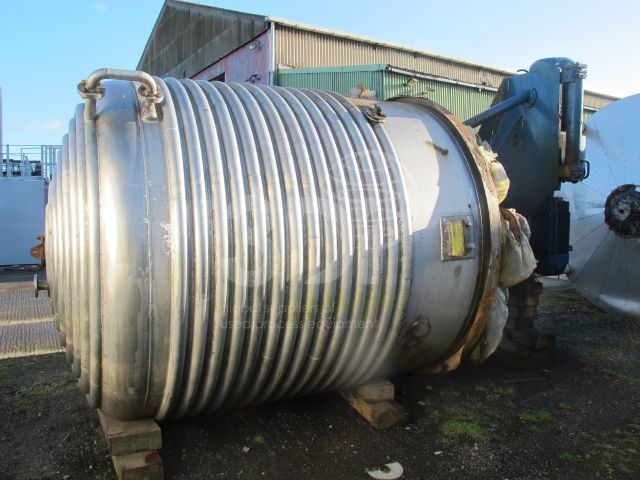

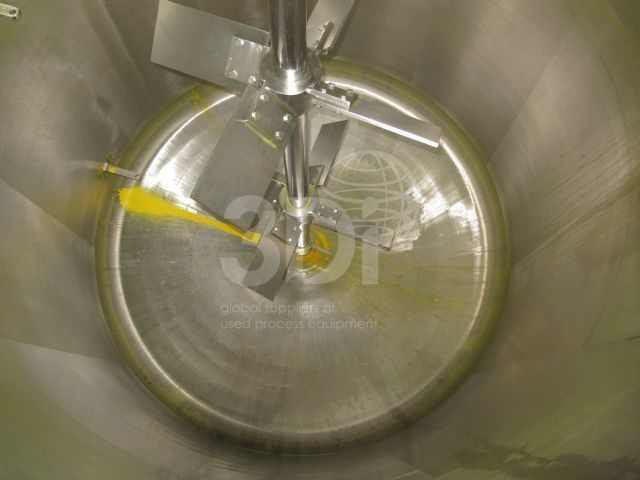

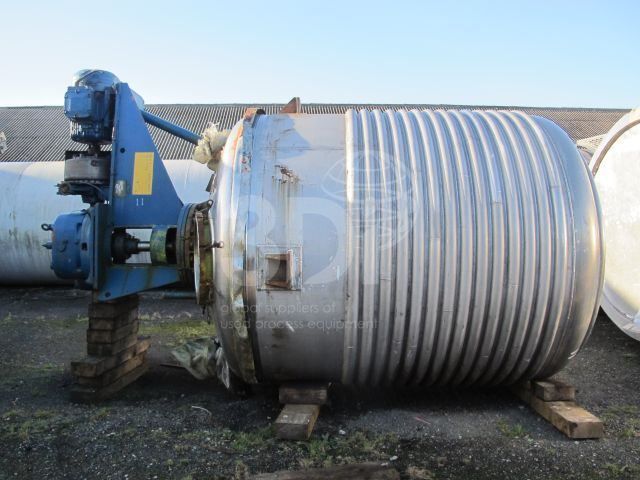

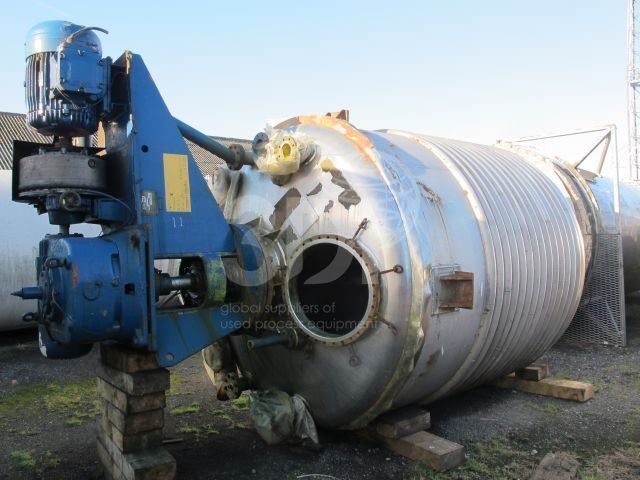

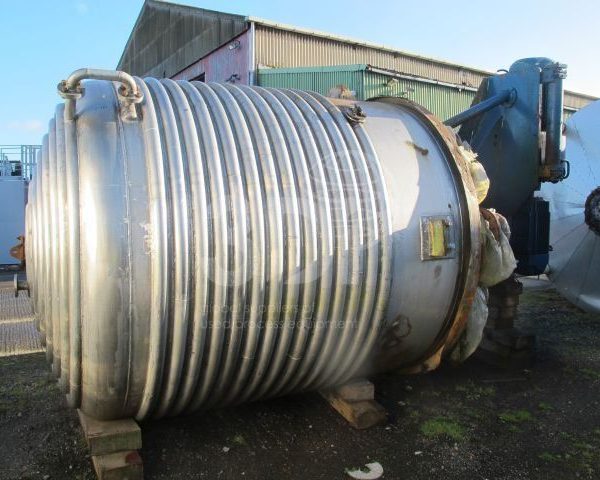

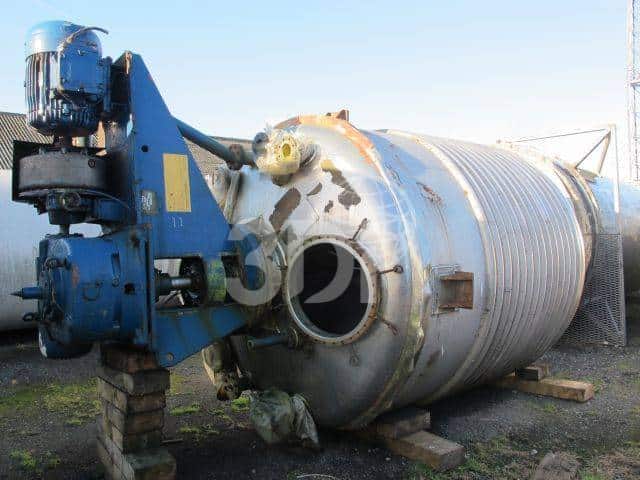

Used 12,000 Litre 321 Stainless Steel Reactor Vessel, manufactured by Stainless Steel Plant Ltd.  Orientation: vertical, cylindrical, dished top and bottom with side supports. Dimensions: 2440mm diameter, 2340mm on the straight, 520mm dished ends. Overall height 4980mm. Vessel is jacketed with (15) wraps of limpet coil on the side wall and (7) wraps of limpet coil on the bottom dish. Design data: 2.4bar/FV vessel design pressure, 5.2bar coil design pressure, 3.6bar vessel test pressure, 9.3 bar coil test pressure. Vessel is complete with a Transkem top centre mounted twin flighted (4) blade turbine agitator, type GDTE MT variable speed drive 30/145 rpm. Previously used on chemicals.
