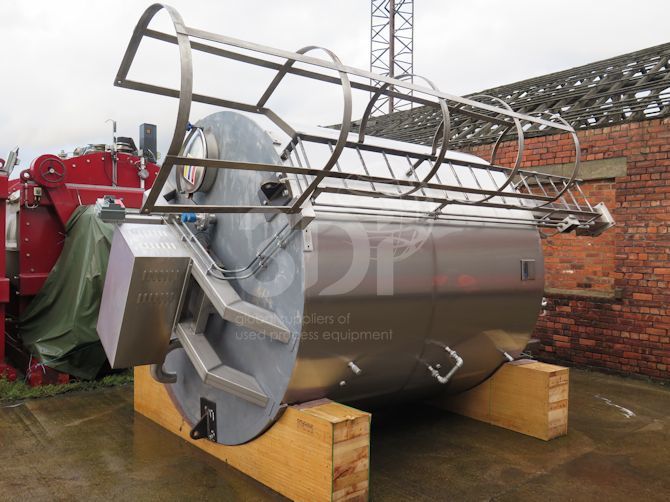

13,500 Litre Jacketed Mixing Vessel

Specification

Weight	4000 kg
Dimensions	500 × 300 × 325 cm
capacity	13500
Capacity Type	Litres
manufacturer	Able Engineering
Build Year	2002
material	316 Stainless Steel
industry	Food and Beverage

Description

Used 13,500 Litre Jacketed Mixing Vessel, manufactured by Able Engineering, 2002. Material of construction 316 grade stainless steel. Orientation: vertical, cylindrical, flat top, conical bottom. Dimensions: 2500mm internal diameter, 2500mm tan to tan, overall height 5000mm. Design code GEP, working pressure atmospheric, working temperature 60degC, jacket design pressure 5bar. Vessel is fitted with a top mounted Transkem gate paddle agitator with which is powered by a 2.2kw Electric motor (1420rpm, 415v, 3ph, 50hz). Vessel thickness is 5mm. The vessel is supported on 3 stainless steel legs with load cells and comes with side ladder and top handrail. Previously used in the food and beverage industry to mix chocolate.
