15,000 Litre Stainless Mixing Tank


15,000 Litre Stainless Mixing Tank
Specification
Description

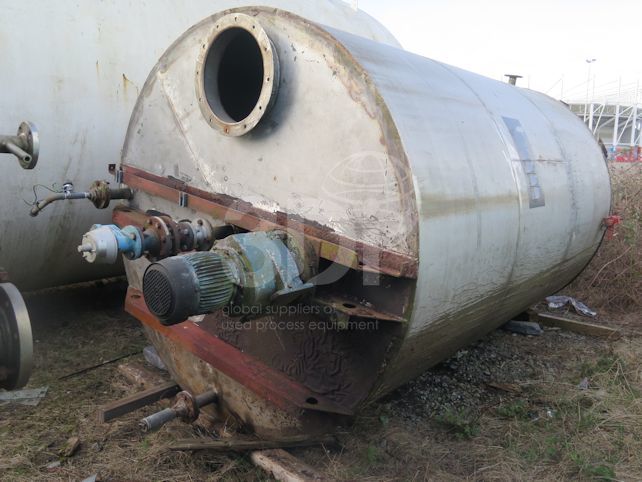

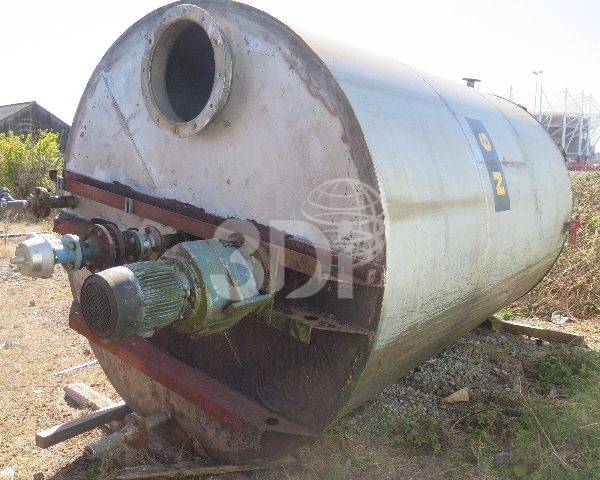

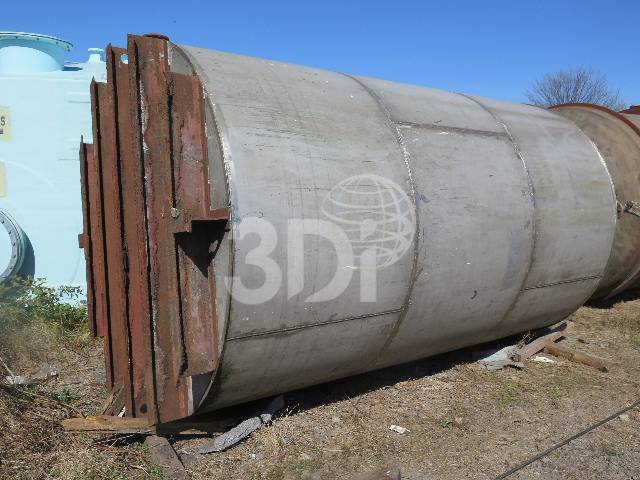

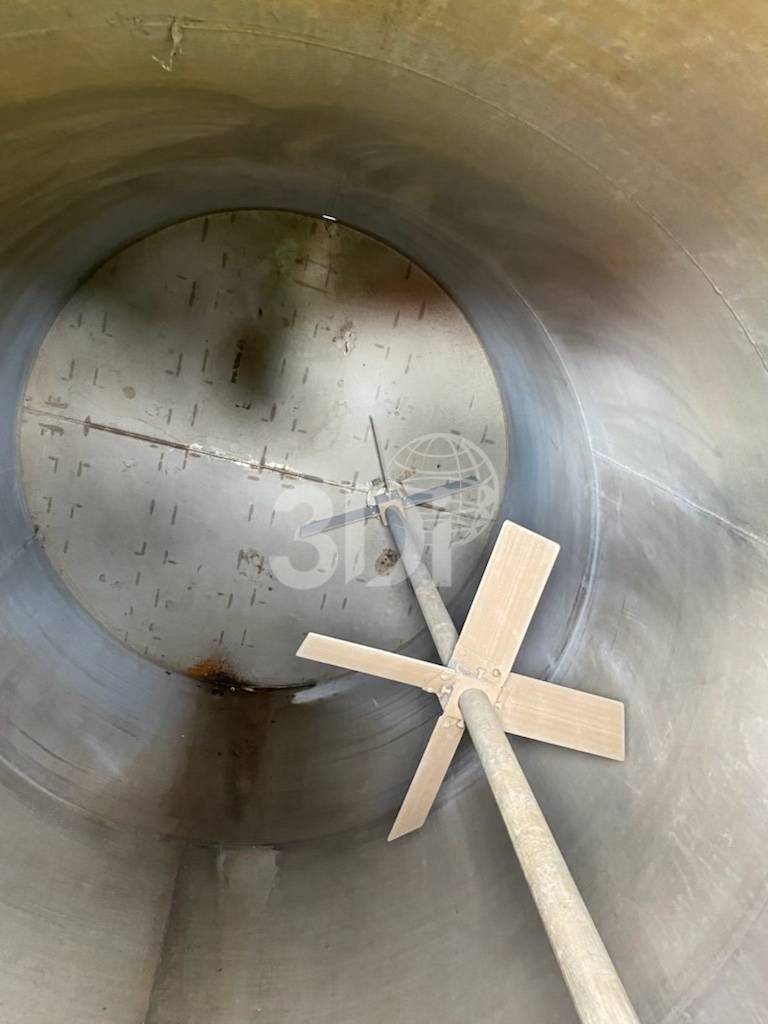

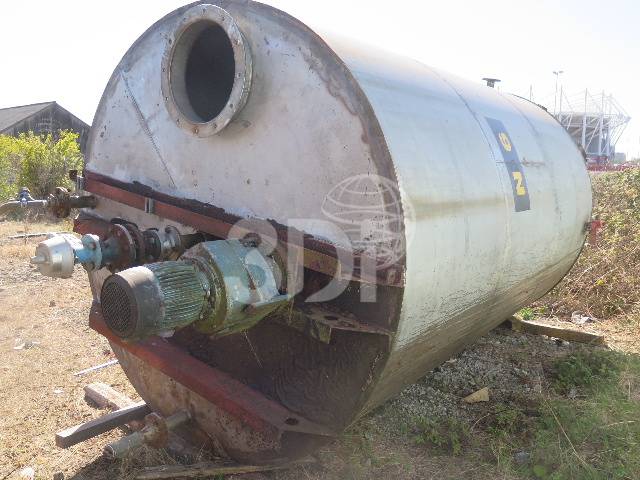

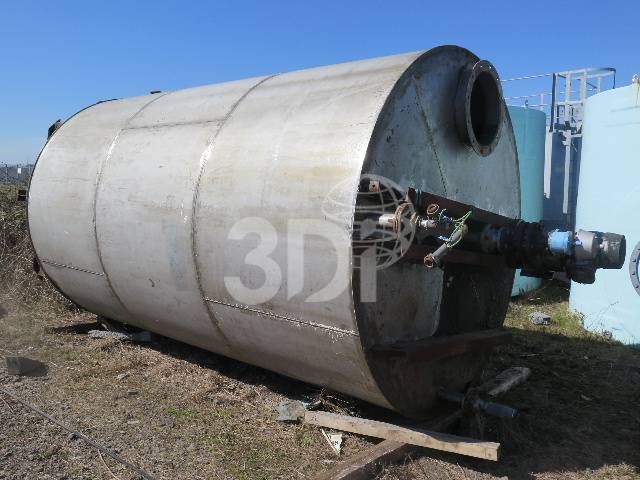

Used 15,000 Litre Stainless Mixing Tank. Orientation vertical, cylindrical, flat base, tented top. Material of construction 304 stainless steel. Dimensions 2300mm internal diameter, 3670mm on the straight, 4800mm overall height, 2350mm overall width. Connections (1) 2 inch flanged side bottom outlet, (2) 2 inch top inlets, (1) 2 inch top inlet fitted with flame arrestor and pressure relief valve, (1) 460mm top manway. Fitted with an top mounted offset twin flighted turbine agitator, powered by a 4 kw Brook Crompton FLP Electric Motor. Previously used to store solvents.
