16,000 Litre Stainless Steel Mixing Tank

16,000 Litre Stainless Steel Mixing Tank

Stock #2825
2 in stock

Specification

Capacity: 16000 litres
Condition Used
Manufacturer Fairfield Hytec
Build Year 1996

Description

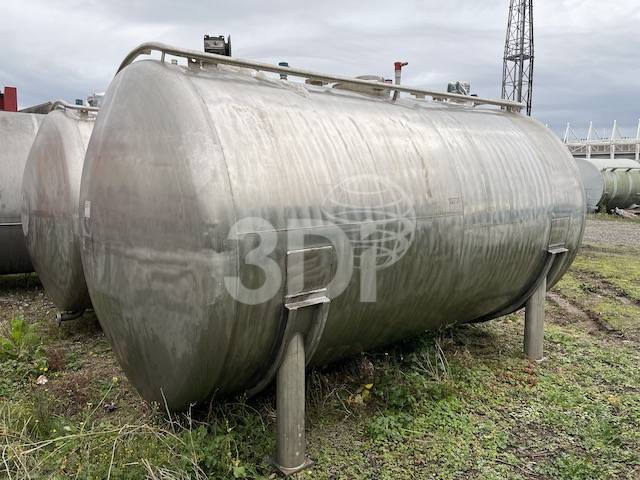

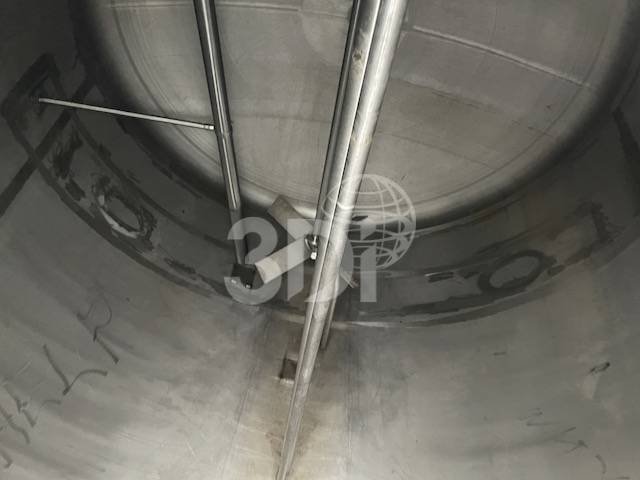

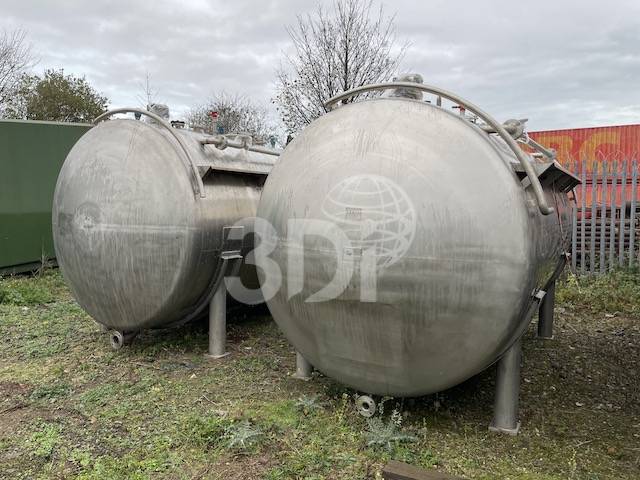

Used 16,000 Litre Stainless Steel Mixing Tank, manufactured by Fairfield Hytec Ltd, 1996. Material of construction stainless steel. Orientation horizontal, cylindrical, dished ends. Tank is supported on 4 x stainless steel legs. Dimensions 2200mm diameter, 3650mm on the straight, 400mm dished ends, 270omm overall height. Connections 2 x 50mm top flanged inlet, 1 x 50mm fill pipe, 2 x 80mm top flanged inlet, 1 x 50mm flanged side bottom outlet, 1 x 80mm flanged side bottom outlet. Tank is fitted with two top mounted Greaves 4 blade turbine agitator, powered by 0.55kw CEMP electric motor.
