16,970 Litre Stainless Steel Storage Tank

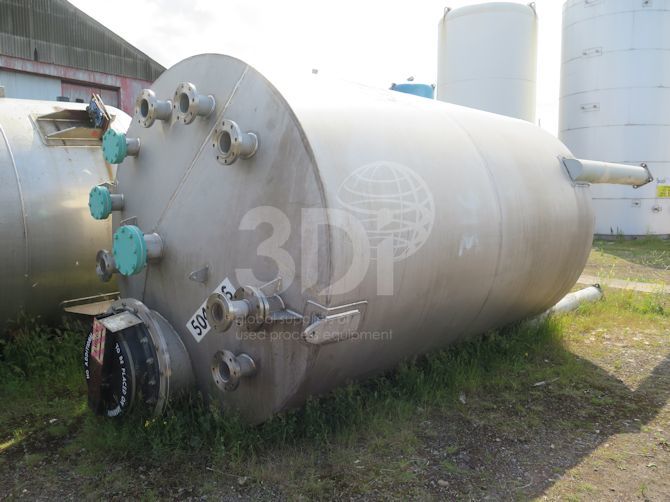

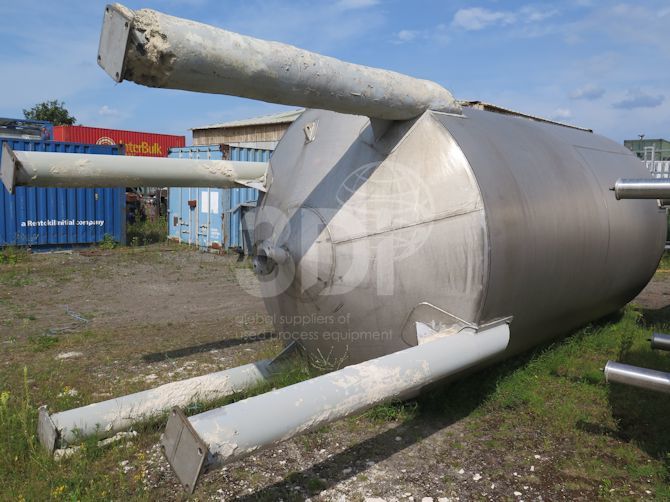

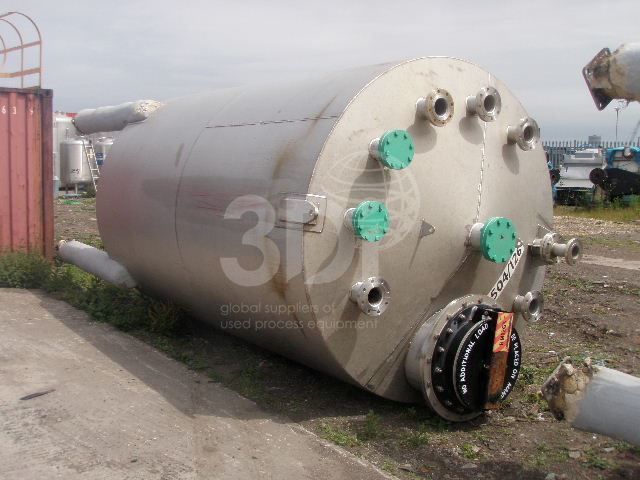

Used 16,970 Litre 316L Stainless Steel Storage Tank, built by Bibbys of Halifax, 2007.  Material of construction: 316L Stainless Steel.  Vessel thickness: 5mm base/cone, 4mm shell.  Orientation: vertical, cylindrical, coned top and bottom, on legs.  Dimensions: 2300mm internal diameter, 3750mm on the straight, 635mm bottom cone, 6180mm overall height.  Connections: 150mm (6″) top centre inlet, 100mm (4″) bottom centre outlet, 600mm (24″) top manway.  Design Data: design pressure: +0.05/-0.01 barg, design temperature: +30/-10degC.  Working volume: 16,500 Litres.  Previously used on chemicals.
