18,000 Litre Jacketed Storage Tank

18,000 Litre Jacketed Storage Tank

Stock #2439
1 in stock


Capacity: 18000 litres
Condition Used
Material 316L Stainless Steel

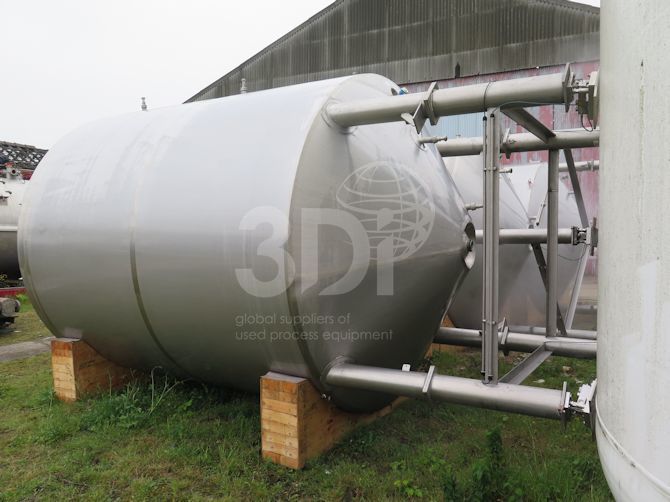

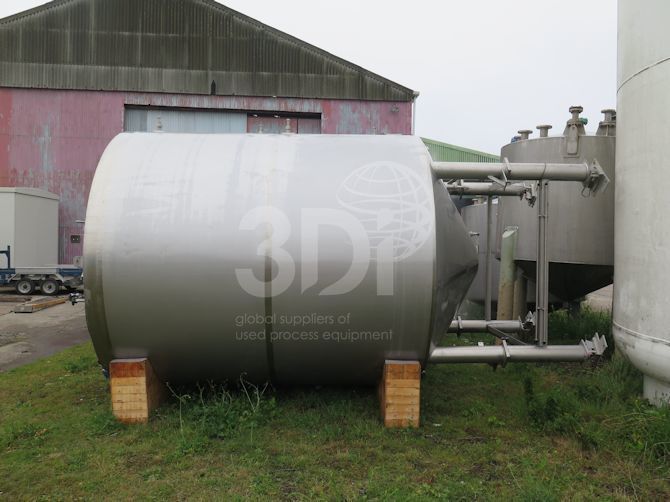

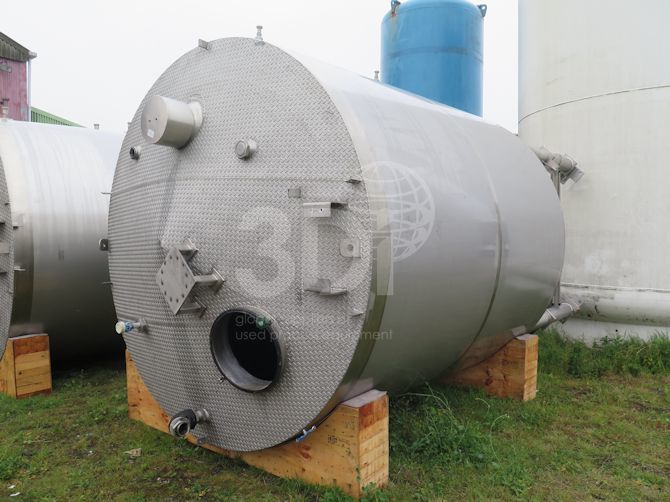

Used 18,000 Litre Jacketed Storage Tank, manufactured by Diesenvale Eng. Co. Ltd, 1998. Material of construction 316L stainless steel. Orientation vertical, cylindrical, coned bottom and bottom. Vessel is supported on 4 stainless steel legs with load cells. Dimensions 5300mm overall height, 2800mm overall width, 2750mm internal diameter, 3140mm on the straight. RJT type connections (4) 76mm top inlets, (1) 500mm top man way, (1) 300mm top vent, (1) 76mm bottom outlet. Design code GEP, vessel design pressure 15mbar, jacket design pressure is 45 psi, design temperature is 100 degC. Tank is fitted with a top handrail. Previously used in the food and beverage industry.
