25,400 Litre Mild Steel Pressure Vessel

25,400 Litre Mild Steel Pressure Vessel

Stock #2749
1 in stock

Specification

Capacity: 25400 litres
Condition Used
Manufacturer Conway Vickers
Build Year 2000
Material Mild Steel

Description

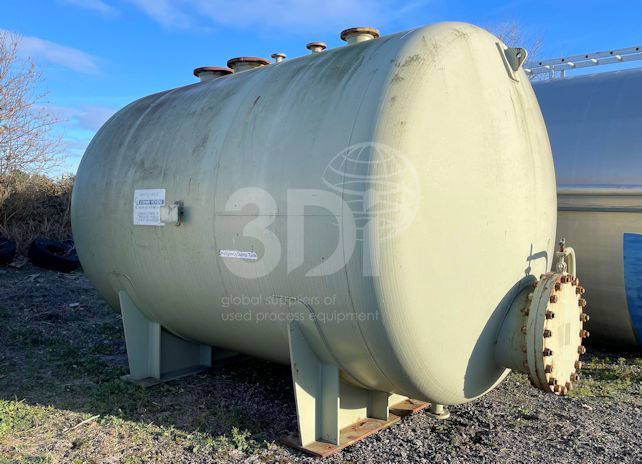

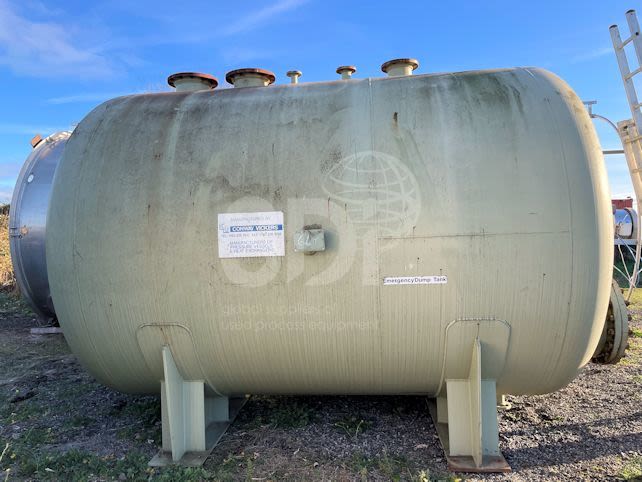

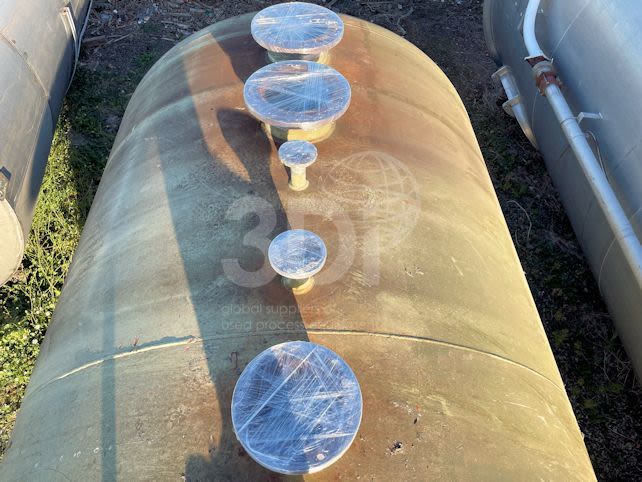

Used 25,400 Litre Mild Steel Pressure Vessel, manufactured by Conway Vickers, 2000. Material of construction mild steel BS.1501-224 GR.490 B.LT.50. Orientation horizontal, cylindrical, dished ends, supported on two saddles. Dimensions 2800mm internal diameter, 3400mm tan to tan, overall length 5500mm. Connections 1 x 3inch bottom outlet, 1 x 2 inch top inlet, 1 x 8 inch relief vent, 1 x 24 inch end man way, 2 x 12 inch top inlet, 1 x 3 inch top outlet,  Design code BS5500 1994 Cat 2, design pressure 3.5 bar full vacuum, design temp -10 degC/+200 degC. Empty weight 6458kg.
