30,000 Litre Stainless Steel Storage Tank

30,000 Litre Stainless Steel Storage Tank

Stock #2804
2 in stock


Capacity: 30000 litres
Condition Used
Material Stainless Steel
Industry Chemical

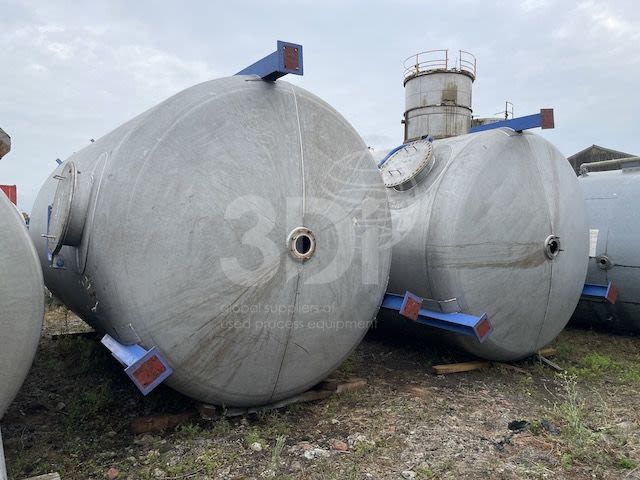

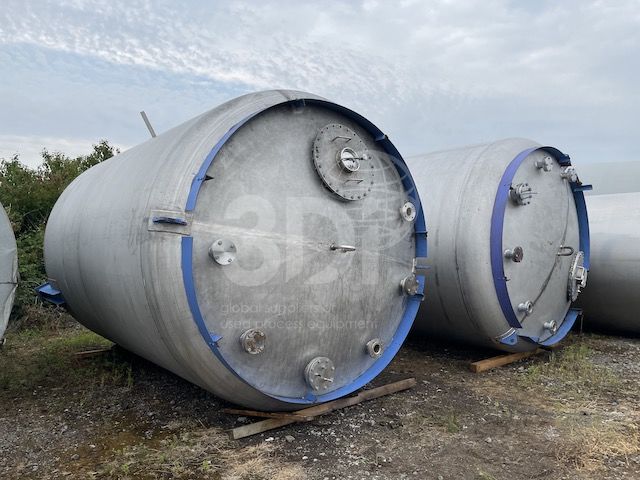

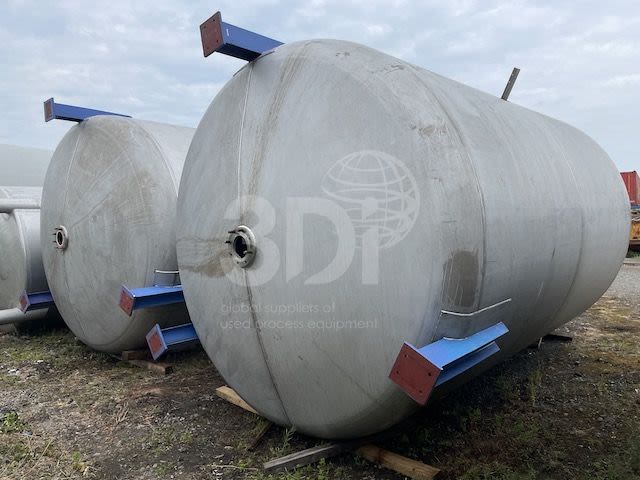

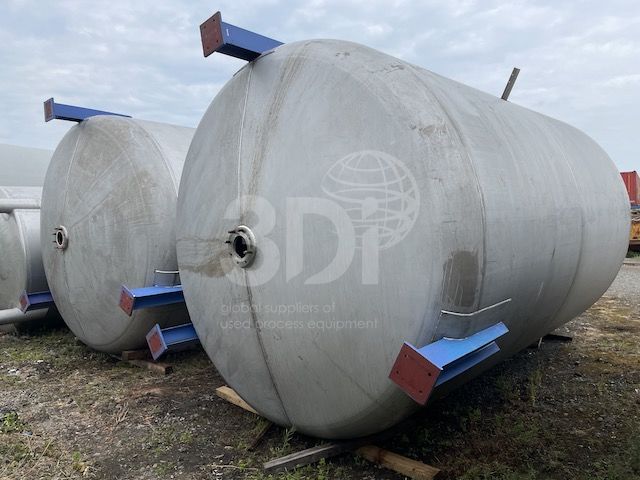

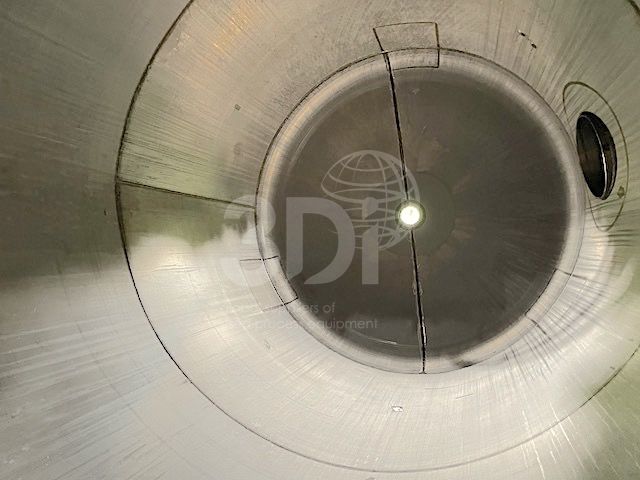

Used 30,000 Litre Stainless Steel Storage Tank. Orientation vertical, cylindrical, dished ends. Material of construction stainless steel. Dimensions 2850mm internal diameter, 4000mm on the straight, 600mm bottom dish, 500mm top dish. Overall dimensions 5400mm overall height, 3200mm overall width.  Tank is supported by 3 steel legs, with legs extensions and load cells which are 600mm tall. Tank connections are 2 x 600mm side and top man way, 1 x 160mm centre bottom outlet, 5 x 80mm top flanged inlet, 1 x 150mm top connection. Tank shell thickness 5.29mm, tank dish thickness 6.24mm. Previously used to store chemicals.
