35,000 Litre Jacketed Stainless Storage Tank

35,000 Litre Jacketed Stainless Storage Tank

Stock #2541
Out of stock

Contact us about your equipment needs


Capacity: 35000 litres
Condition Used
Manufacturer Musk
Material 316L Stainless Steel

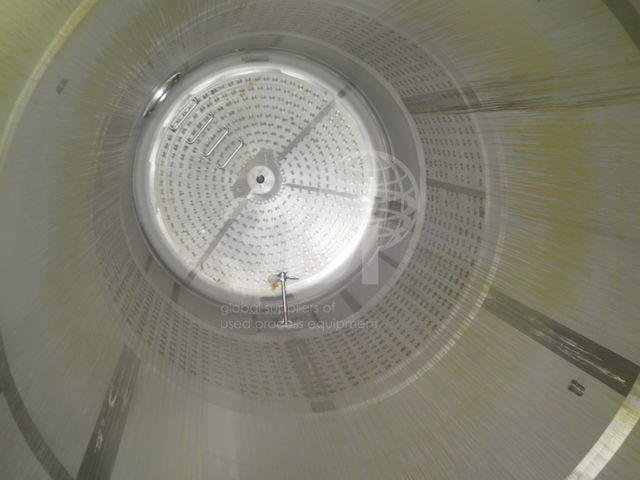

Used 35,000 Litre Jacketed Stainless Storage Tank, manufactured by Musk, 2005/2011. Material of construction 316 stainless steel. Orientation vertical, cylindrical, coned bottom, dished top. Supported by a skirted base on 4 load cells. Dimensions 2850mm internal diameter, 5000mm on the straight, 8755mm overall height. Tank is fitted with dimpled and fluted heating jacket panels on cone and shell. The tank is insulated with 100mm thick mineral wool and clad with smooth plastisol cladding.  Tank working pressure is atmospheric, jacket working pressure 2 bar, design pressure 2.2bar, test pressure 3.3bar. Tank design temp 135degC. Tank has a top mounted gantry and hand rail. The storage tank is fitted with a bottom side entry Transkem 3 blade propeller agitator, powered by a 0.75kw ABB electric motor. Tank comes with O&M manual. Previously used in the food industry storing food oil.
