35,000 Litre Stainless Storage Tank

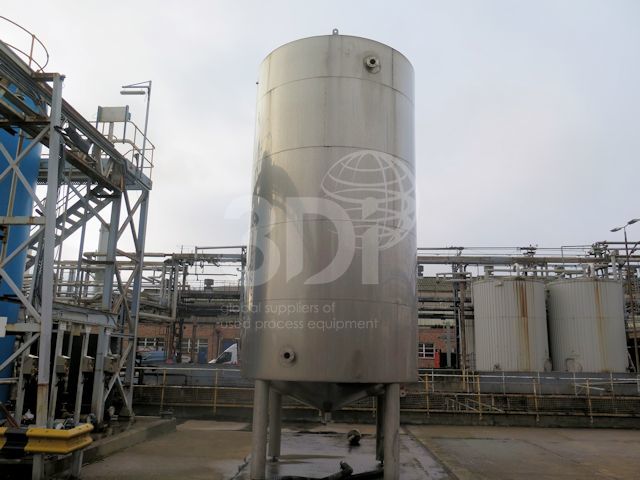

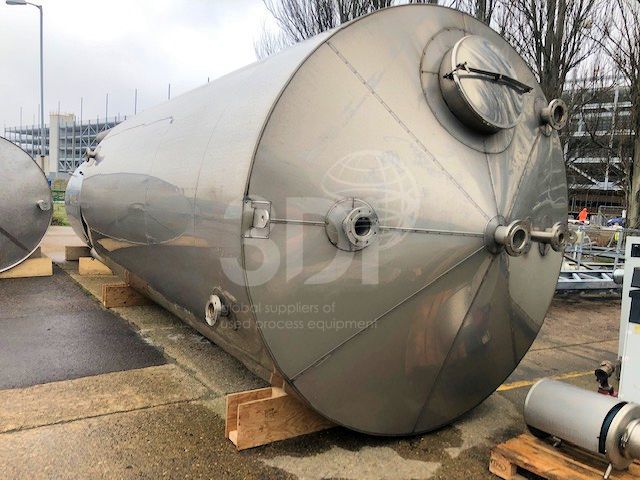

Used 35,000 Litre Stainless Storage Tank, manufactured by TVI, 2011. Material of construction 316L stainless steel. Orientation vertical, cylindrical, coned top and bottom. Supported on 4 stainless steel legs. Dimensions 2860mm internal diameter, 3000mm overall diameter, 5250mm on the straight, 7500mm overall height. Tank is externally insulated with 50mm rockwool and clad in stainless steel riveted cladding. Tank is fitted with 3 inch internal pipework for heating/cooling. Tank working pressure is atmospheric, internal coil working pressure 2bar, coil test pressure 3 bar. Previously used in the food industry.
