4,000 Litre Stainless Steel Pressure Vessel

4,000 Litre Stainless Steel Pressure Vessel

Stock #2751
1 in stock

Specification

Capacity: 4000 litres
Condition Used
Manufacturer Atack Fabrications
Build Year 2001
Material 304L Stainless Steel

Description

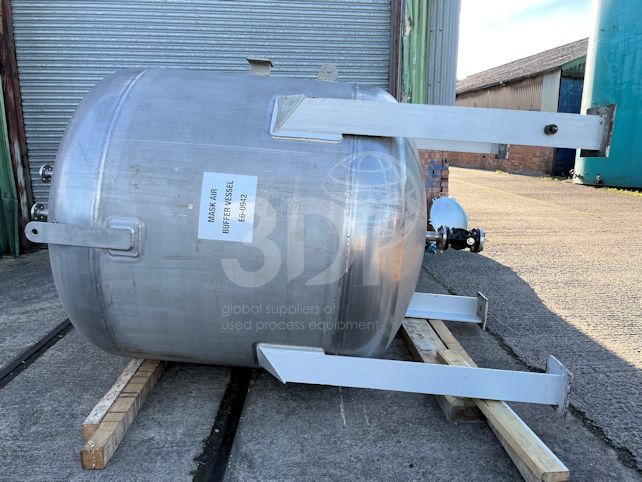

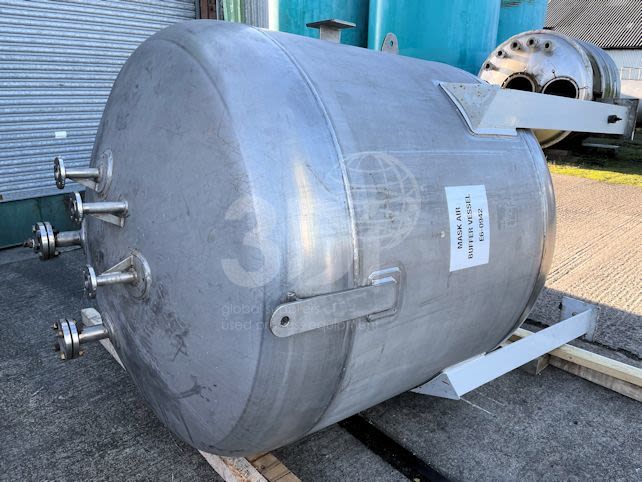

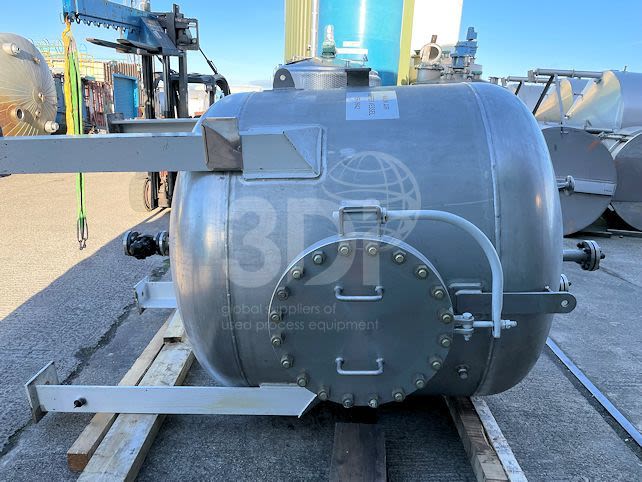

Used 4,000 Litre Stainless Steel Pressure Vessel, manufactured by Atack Fabrications Ltd, 2001. Material of construction 304L stainless steel. Orientation vertical, cylindrical, dished ends. Vessel is supported on 4 x steel legs. Dimensions 1700mm internal diameter, 1200mm on the straight, 2835mm overall height. Vessel design code PD5500 : 2000 CAT2, design pressure 10 bar g, design temperature -15/+50degC. Vessel connections 3 x 1inch top inlet, 2 x 2 inch top inlet, 1 x 20 inch side bottom manway, 1 x 2inch bottom outlet. Empty weight 1525kg.
