4,200 Litre Stainless Steel Reactor Vessel

4,200 Litre Stainless Steel Reactor Vessel

Stock #2831
1 in stock


Capacity: 4200 litres
Condition Unused
Manufacturer Brooker Wellman
Build Year 2018
Material 316L Stainless Steel

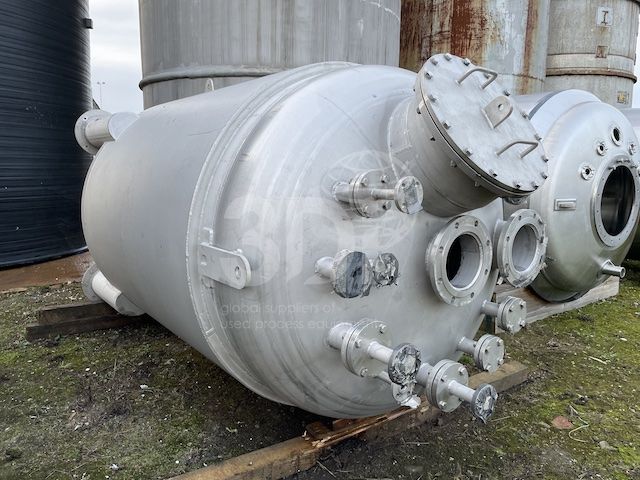

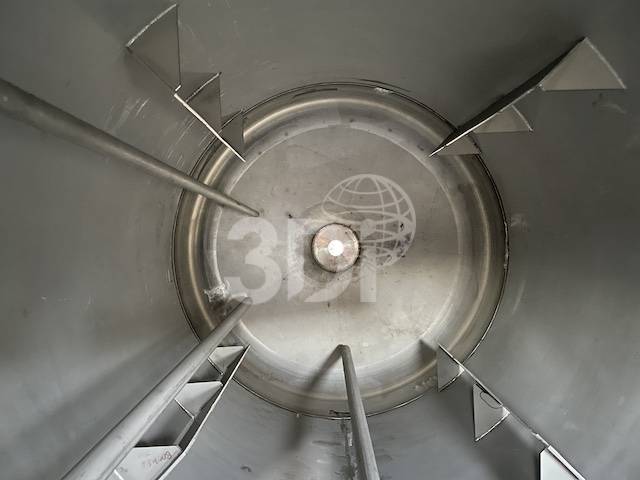

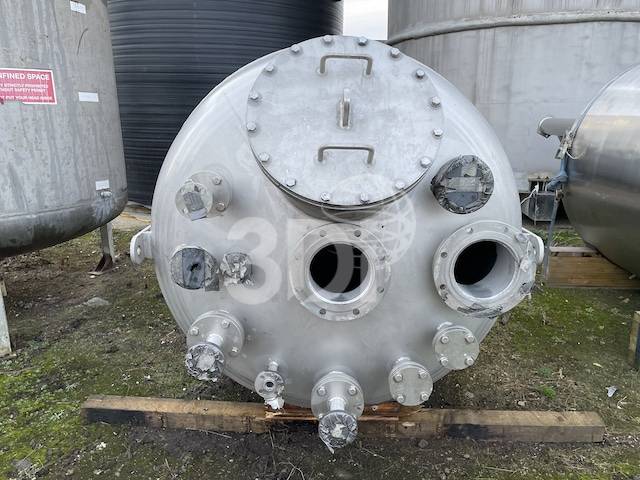

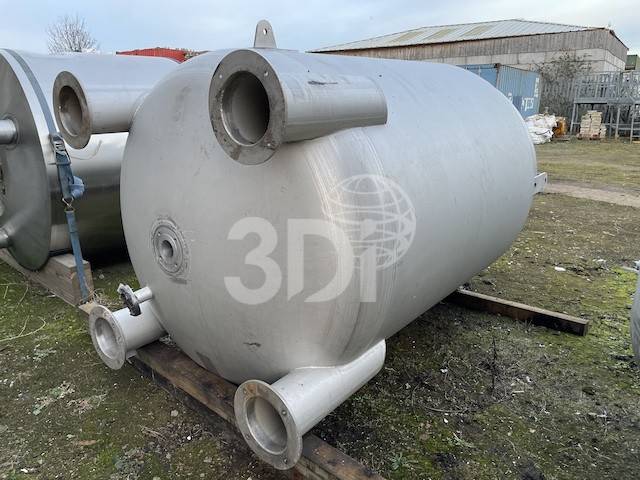

Unused 4,200 Litre Stainless Steel Reactor Vessel, manufactured by Booker Wellman Ltd, 2018. Material of construction 316L stainless steel. Orientation vertical, cylindrical, dished top an bottom. The reactor is supported on 4 stainless steel legs. Dimensions 1500mm internal diameter, 1875mm tan to tan, overall height including leg supports and agitator 4457mm. Design code PD 5500: 2015 CAT 2, design pressure 1.5 bar, design temperature 40degC, jacket design pressure 4bar, jacket design temperature 50degC. The reactor vessel is fitted with a top mounted Ekato four blade turbine agitator, powered by a 2.2kw HEW ATEX rated electric motor.
