500 Litre High Shear Mixing Tank








500 Litre High Shear Mixing Tank
Contact us about your equipment needs
Specification
Description

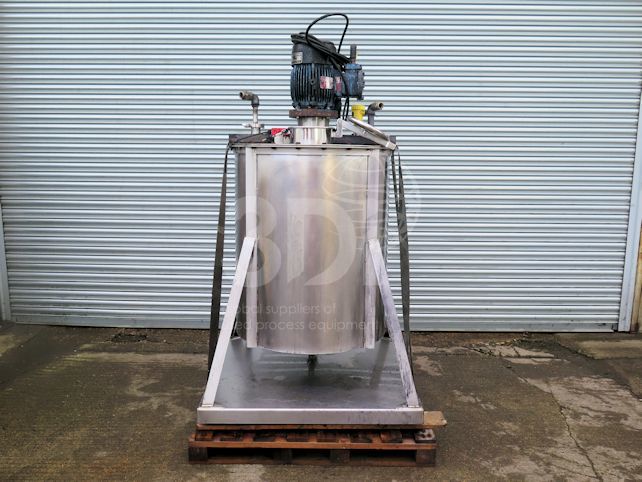

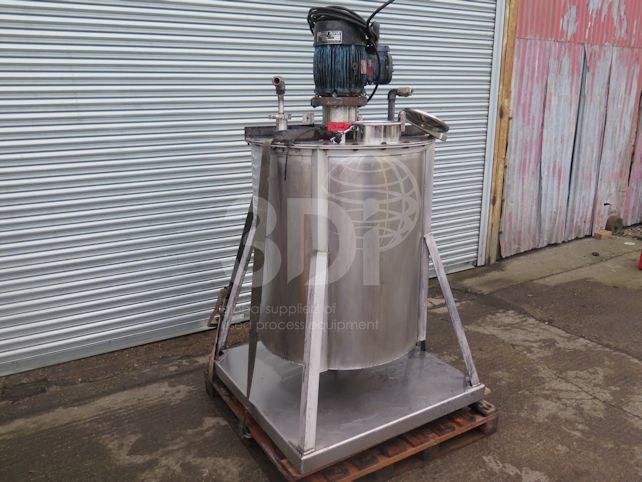

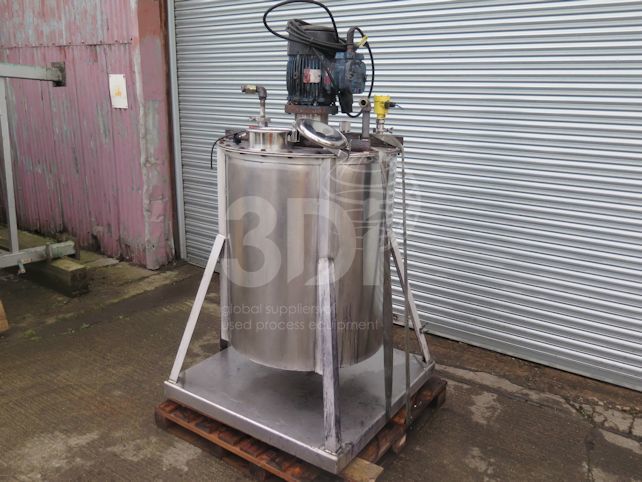

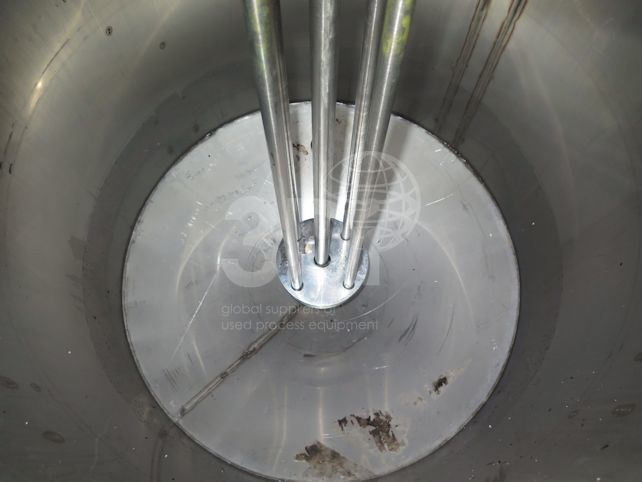

Used 500 Litre High Shear Mixing Tank, manufactured by Joshua Greaves & Sons, 1995, Model GM-5 F. Material of construction vessel 304 stainless steel, mixer shaft 316 stainless steel. Orientation vertical, cylindrical, coned base, flat bolted top. Supported by 4 legs onto base. Dimensions 800mm diameter, 950mm on the straight, 150mm coned base, overall height 1800mm. Tank is fitted with a top mounted Greaves high shear batch mixer, Model GM-5 F, powered by a 4kw Brook Crompton Flameproof electric motor. Previously used to mix inks.
