5,000 Litre Jacketed Pressure Vessel

5,000 Litre Jacketed Pressure Vessel

Stock #2779
1 in stock

Specification

Capacity: 5000 litres
Condition Used
Manufacturer Cherry-Burrell
Material Stainless Steel

Description

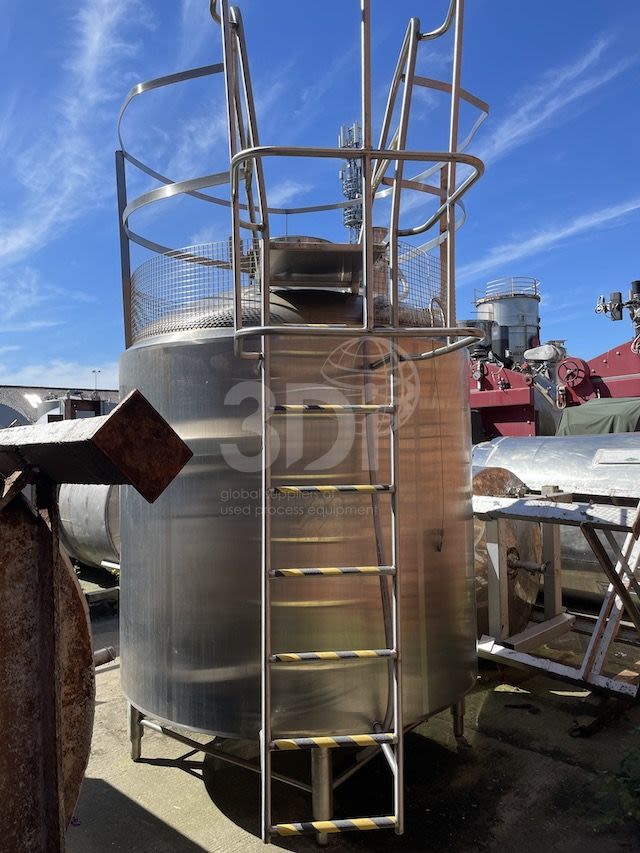

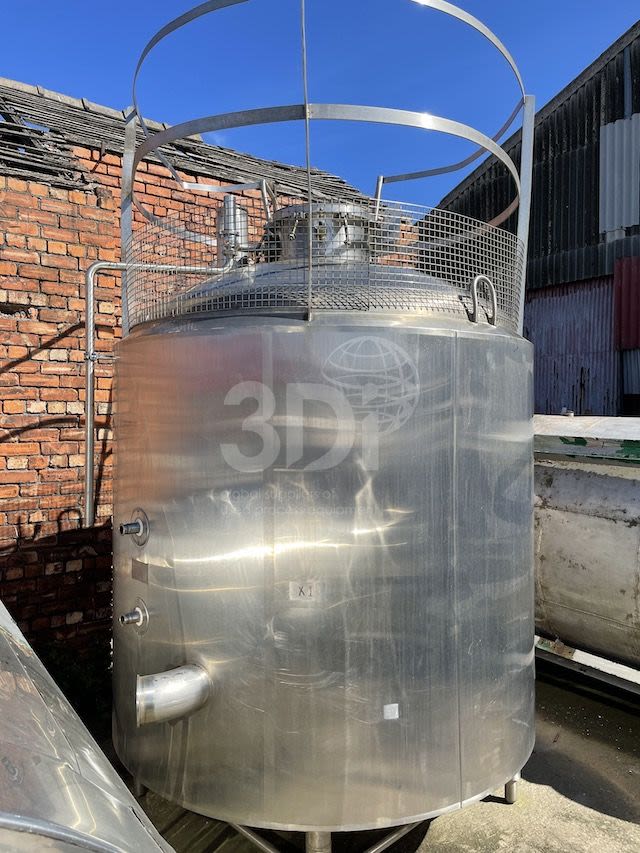

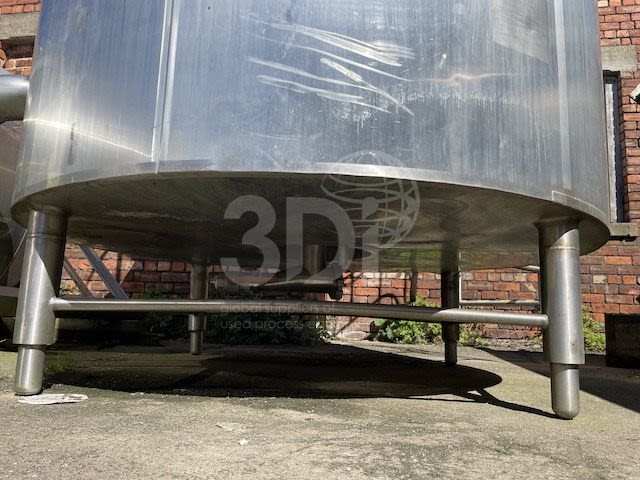

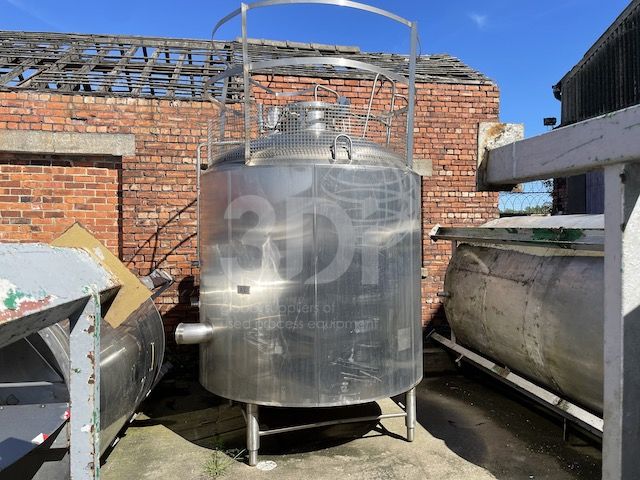

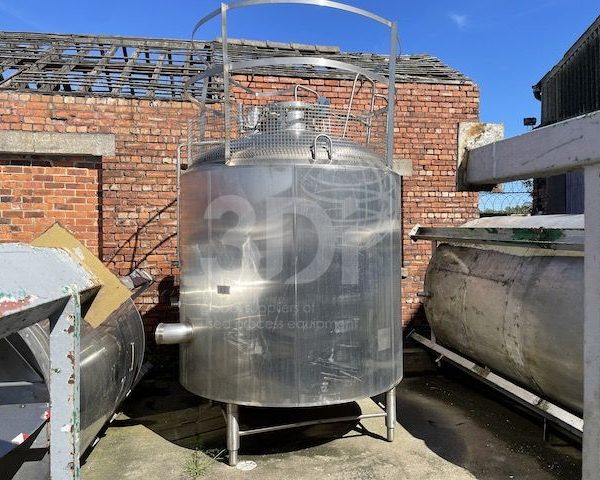

Used 5,000 Litre Jacketed Pressure Vessel, manufactured by Cherry-Burrell, 1984. Serial no. 84E-38. Orientation vertical, cylindrical, dished top and bottom. Material of construction stainless steel. Dimensions 1800mm diameter, 1800mm on the straight, 3400mm overall height. Connections 1 x 6 inch top inlet, 1 x 6 inch side bottom outlet, 1 x 4 inch bottom outlet reduced to a 2 inch, 1 x top centre 450mm diameter man way fitted with spray ball. Vessel is jacketed, insulated and clad in stainless steel. Vessel and jacket maximum working pressure 60 PSI, 300 degF maximum working temperature. Vessel is fitted with a stainless steel access ladder and top hand rail. This pressure vessel was previously used to store process water.
