5,000 Litre Stainless Mixing Vessel

5,000 Litre Stainless Mixing Vessel

Stock #2478
Out of stock

Contact us about your equipment needs

Specification

Capacity: 5000 litres
Condition Used
Material Stainless Steel

Description

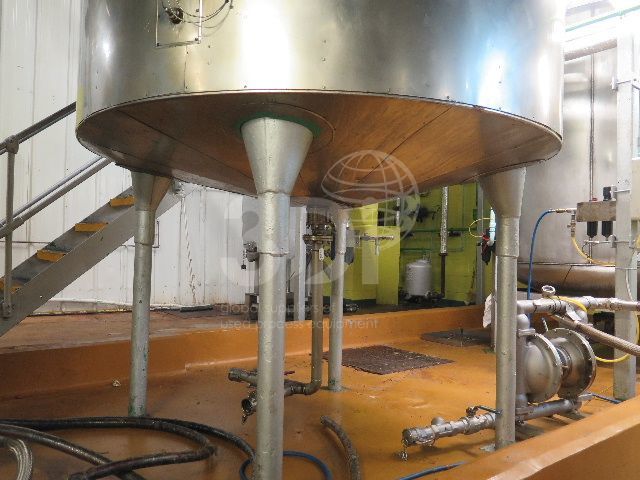

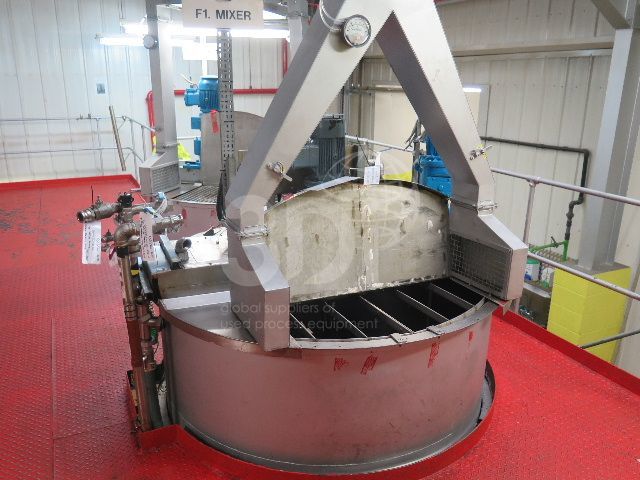

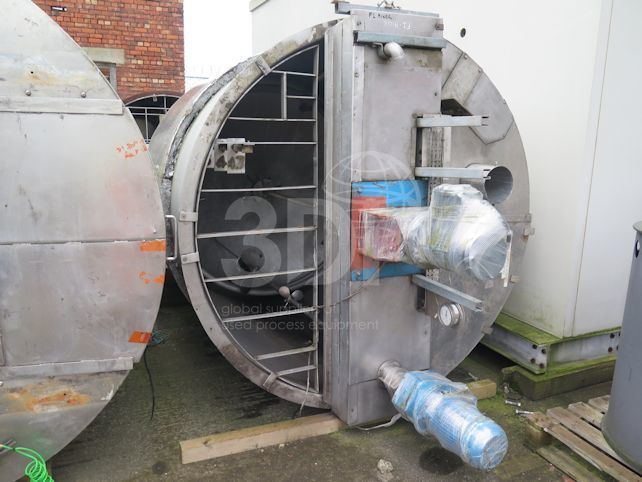

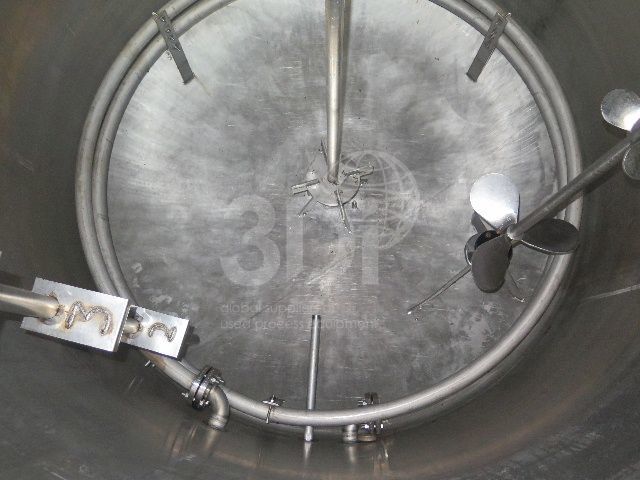

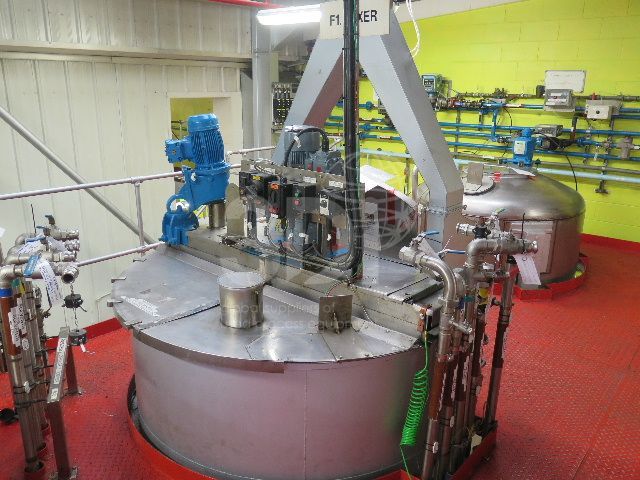

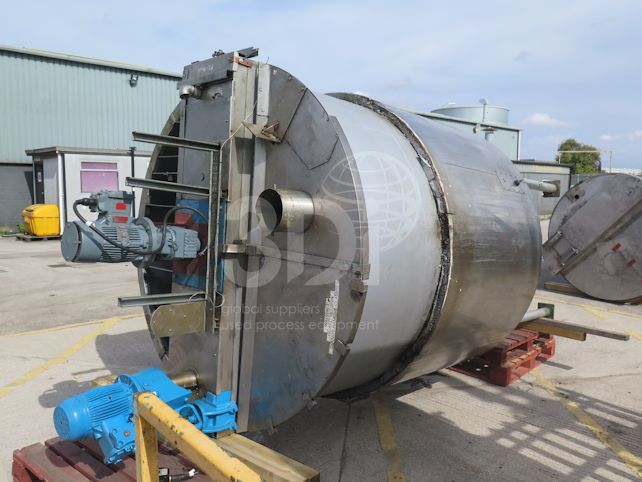

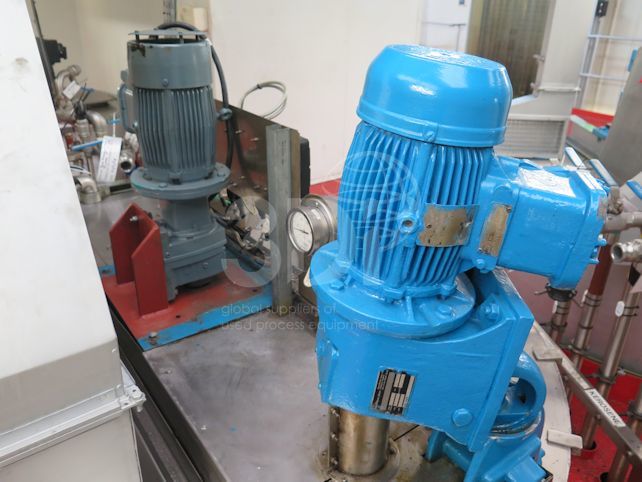

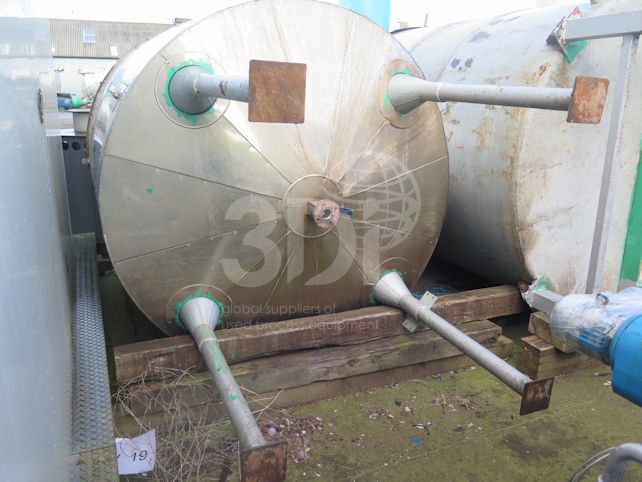

Used 5,000 litre Stainless Mixing Vessel. Material of construction 316 stainless steel. Orientation vertical, cylindrical, flat top, dished base. Supported on 4 steel legs. Dimensions 1800mm internal diameter, 1800mm on the straight. Vessel is fitted with a top centre mounted 4 blade disc turbine agitator powered by a 1.93kw Brook Crompton ATEX motor and an off centre twin flighted 3 blade Greaves type PGD 3 propellor agitator, powered by 2.2kw Brook Crompton flameproof electric motor (3ph, 50hz, 415v, 377rpm, 5.0amps). Vessel is fitted with 2 wraps of stainless steel internal coil and externally insulated.
