6,000 Litre Giusti Mixing Vessel

6,000 Litre Giusti Mixing Vessel

Stock #2823
1 in stock

Specification

Capacity: 6000 litres
Condition Used
Manufacturer Giusti
Build Year 2006
Material Super Duplex Stainless Steel

Description

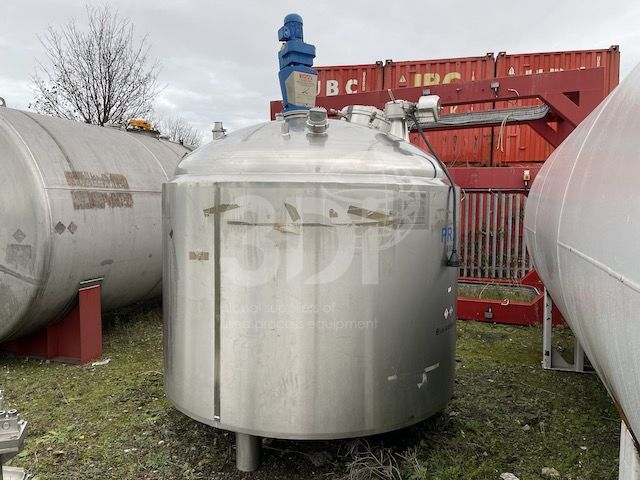

Used 6,000 Litre Giusti Mixing Vessel, manufactured by T. Giusti Ltd (Briggs), 2006. Design code PD5500 2003 CAT 2. Serial no. TM2329. Gross Volume 6900 litre. Vessel design pressure 0.5 barg at 150degC. Jacket design pressure 3.3 barg at 150degC. Material of construction super duplex stainless steel UNS S32760. Orientation vertical, cylindrical, dished top and base. The vessel is supported on 3 stainless steel legs, as well as load cells and stainless steel mounting fame. Dimensions 2100mm internal diameter, 1500mm on the straight, 3300mm overall height including mixer, mounting frame is 950mm high. Vessel is 5mm thickness. Vessel is externally jacketed, insulated and clad in stainless steel. The vessel is fitted with a top mounted Mixertech twin flighted 3 blade turbine agitator powered by a 0.75kw electric motor, 3ph, 415v, 50hz, 123rpm.
