6,000 Litre Jacketed Stainless Mixing Tank

6,000 Litre Jacketed Stainless Mixing Tank

Stock #2760
1 in stock

Specification

Capacity: 6000 litres
Condition Used
Manufacturer Ahrens & Bode
Material 304 Stainless Steel

Description

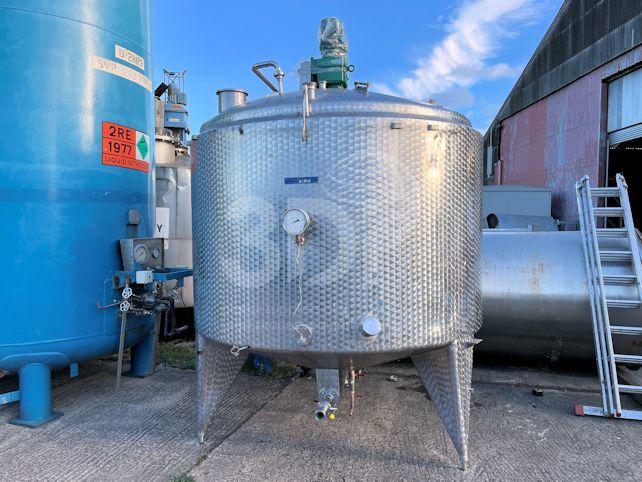

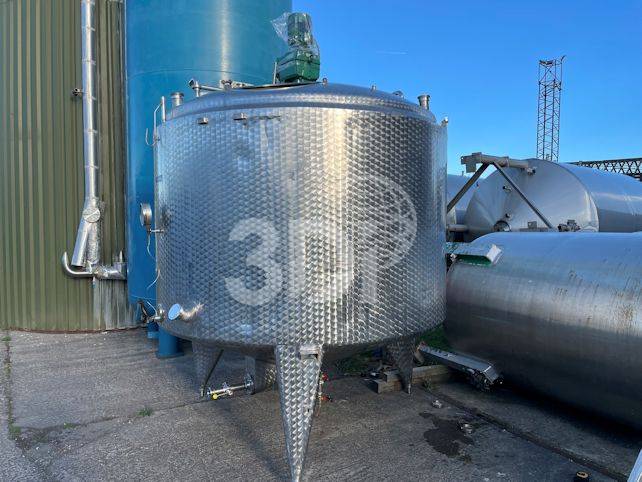

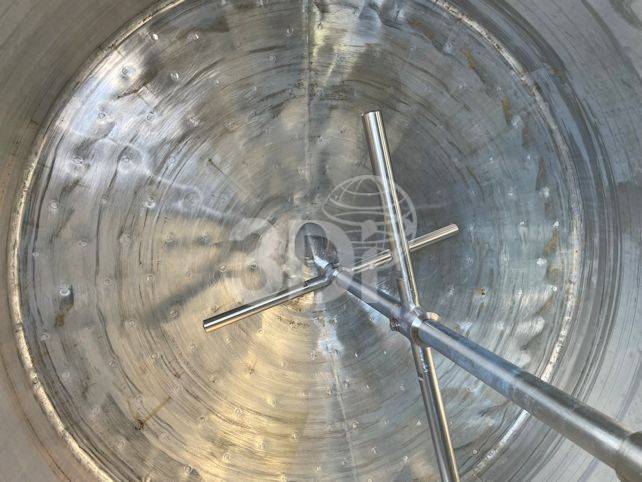

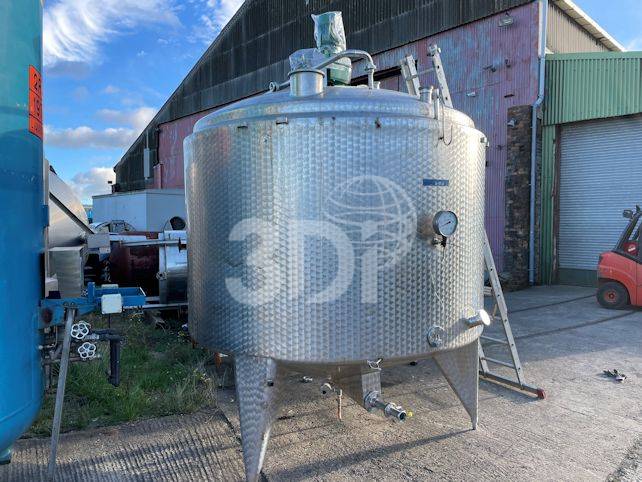

Used 6,000 Litre Jacketed Stainless Mixing Tank, manufactured by Ahrens & Bode Gmbh. Material of construction 304 stainless steel. Orientation vertical, cylindrical, dished top and bottom. Dimensions 2200mm internal diameter, 1500mm on the straight, overall width 2400mm, overall height 3500mm. Connections 2 off top mounted spray ball heads, 1 off 600mm top round manway with lid, 1 off 200mm top inlet, 2 off 80mm top inlet, 1 off 40mm top inlet, 1 off 80mm side inlet, 1 off 50mm bottom outlet, 4 off 80mm bottom jacket connections. Tank is fitted with a top centre mounted 2 bar twin flighted agitator, powered by a 2.2kw Leroy Somer electric motor (360-460v, 50-60hz, 1440-1750rpm). Previously used to mixing detergents.
