Pfaudler Balfour Glass Lined Reactor BE64000

Pfaudler Balfour Glass Lined Reactor BE64000

Stock #669
8 in stock


Capacity: 64000 litres
Condition Used
Material Mild Steel - Glass Lined
Manufacturer Pfaudler
Industry Chemical

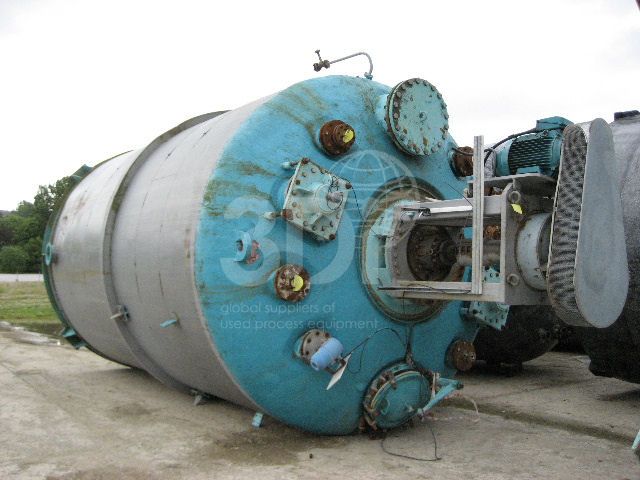

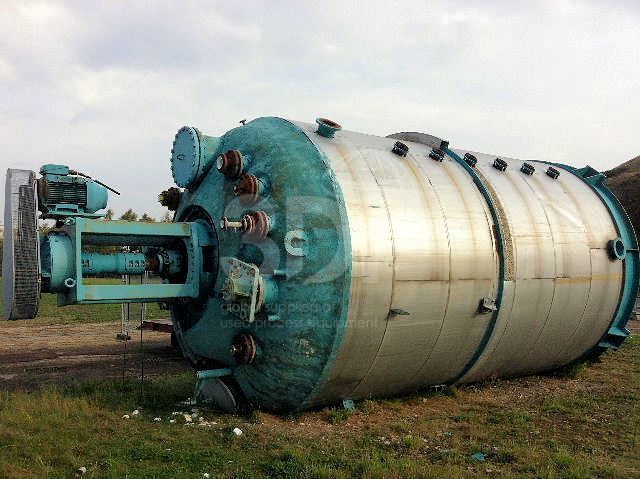

Used 64,000 Litre Pfaudler-Balfour Glass Lined Reactor, Jacketed, DIN BE64000 (DIN 51136) 1997, triple flight turbine agitator, baffle and mechanical seal, agitator VSO 64/160 unit c/w VRA-C single Duramettalic seal, 45kw Brook Hansen motor, AD225M EXN, 1470rpm, 415v, 50hz, 77 ampx, gear unit manu by Highfield, ratio 5:1, vessel dimensions 10897mm overall height including legs and drive, 5150mm tan to tan, 7044mm inside vessel ends, 1600mm ground clearance, 3950mm o/dia, glass lining 9119(dark blue), test 2000 volts, design code BS5500 CAT 2, design pressure shell & jacket -1.0bar / +6.0bar, design temp vessel & jacket -25/+200degC. Previously used on chemicals.
