66,000 Litre Stainless Steel Storage Tank

66,000 Litre Stainless Steel Storage Tank

Stock #2735
1 in stock

Specification

Capacity: 66000 litres
Condition Used
Manufacturer Ardeth Engineering
Build Year 2001
Material 316L Stainless Steel

Description

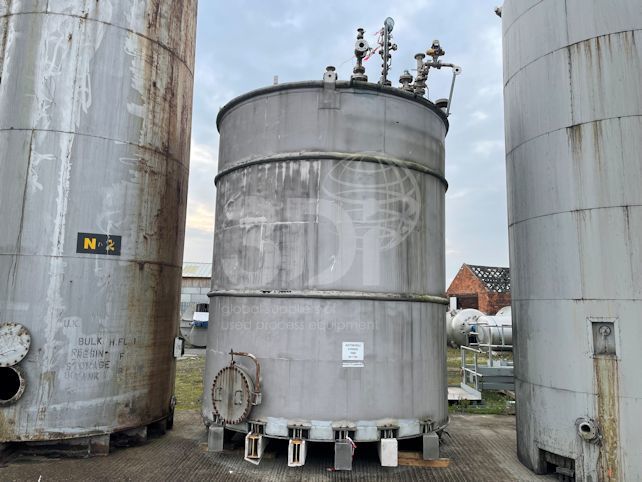

Used 66,000 Litre Stainless Steel Storage Tank, manufactured by Ardeth Engineering, 2001. Material of construction 316L Stainless Steel. Orientation vertical, cylindrical, tented top flat base, supported on 6 steel beams. Dimensions 4100mm internal diameter,  5012mm on the straight, 268mm tented top, overall height 5515mm, overall width 4300mm. Shell thickness 5mm, top head 6mm, bottom head 12.5mm. Design data: built in accordance with code BS2654, design pressure +56mbar to -6mbar, design temperature -10degC to +100degC. Tank is insulated and fitted with a side bottom and top manway, pressure/vacuum breather valve, emergency vent and manhole cover. Tank was previously used to store chemicals.
