Pfaudler Glass Lined Reactor RA84-6820

Pfaudler Glass Lined Reactor RA84-6820

Stock #1888
1 in stock


Capacity: 6820 litres
Condition Used
Material Mild Steel - Glass Lined
Manufacturer Pfaudler
Industry Chemical

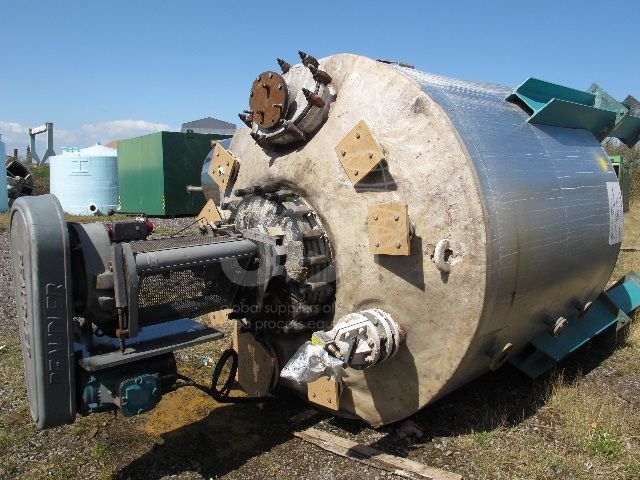

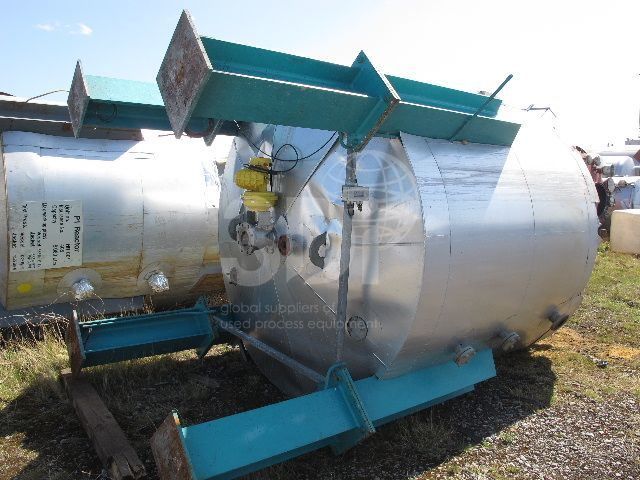

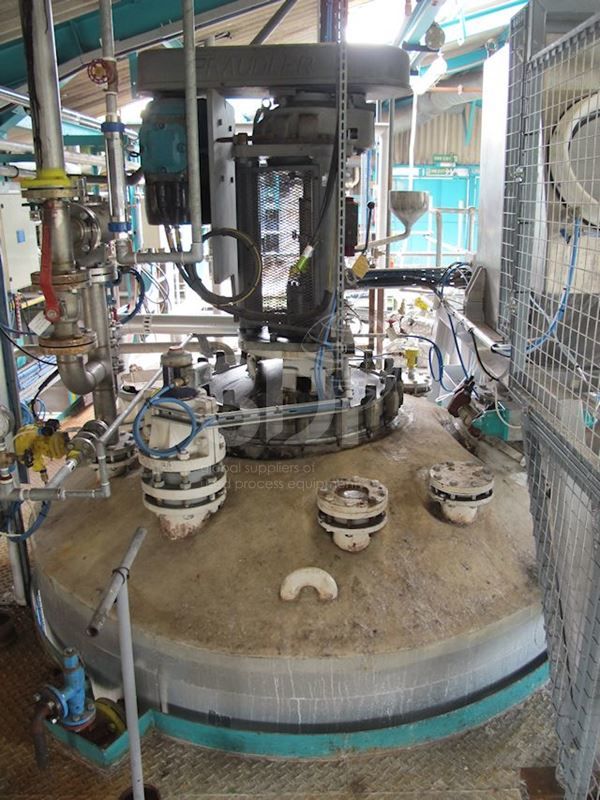

Used 6,820 Litre Glass Lined Reactor, built by Pfaudler-Balfour, 1996, Model RA84-6820.  Orientation: vertical cylindrical dished top and bottom on legs.  Dimensions: 2134mm internal diameter 1677mm tan to tan 6200mm overall length.  Design data: 6.83bar/FV design pressure, 10.25bar test pressure, -29/200degC design temperature.  Complete with glass lined impellor agitator, driven by a 11kw FLP electric motor (50hz 415v 1500rpm) and glass lined baffle. Incl spark test certificate.
