8,400 Litre Stainless Mixing Vessel

8,400 Litre Stainless Mixing Vessel

Stock #2468
1 in stock

Specification

Capacity: 8400 litres
Condition Used
Material Stainless Steel

Description

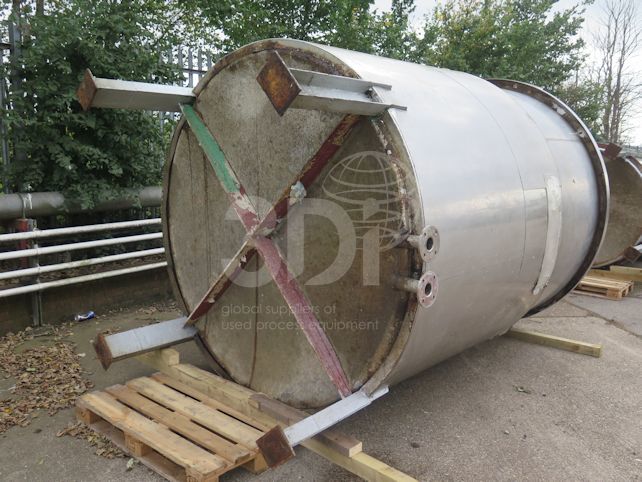

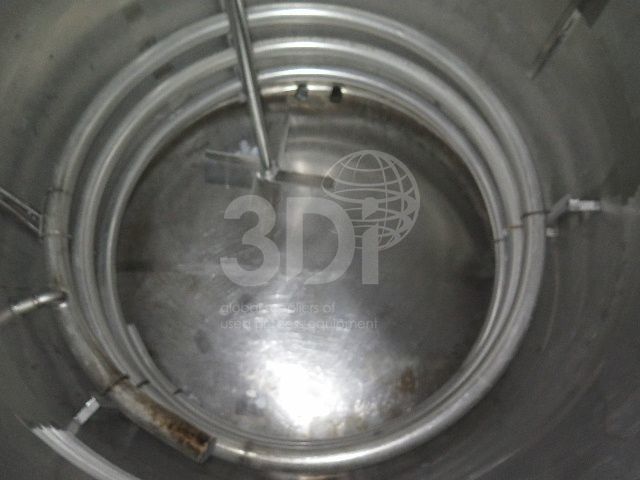

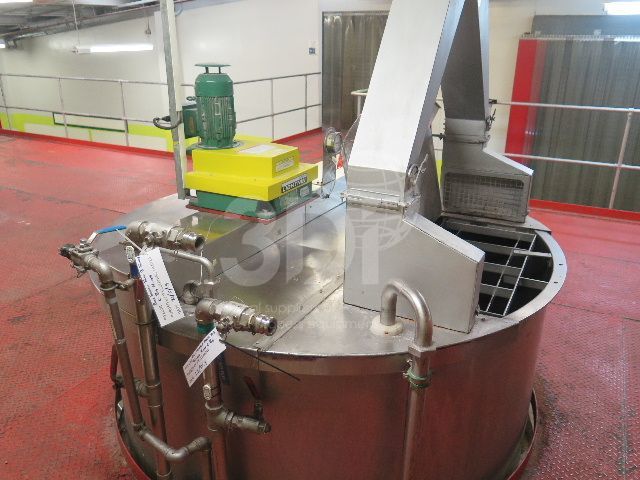

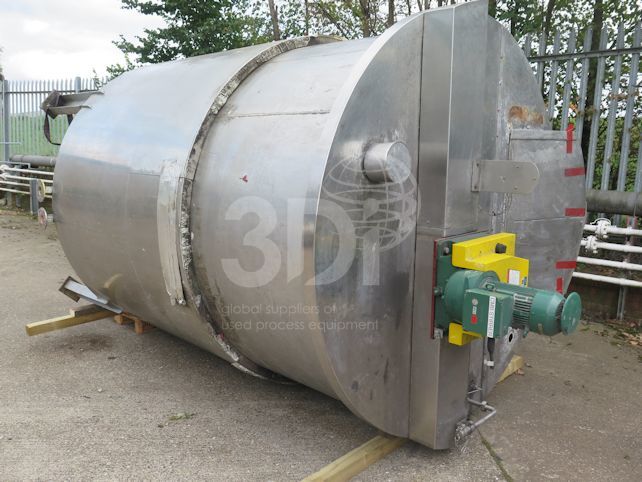

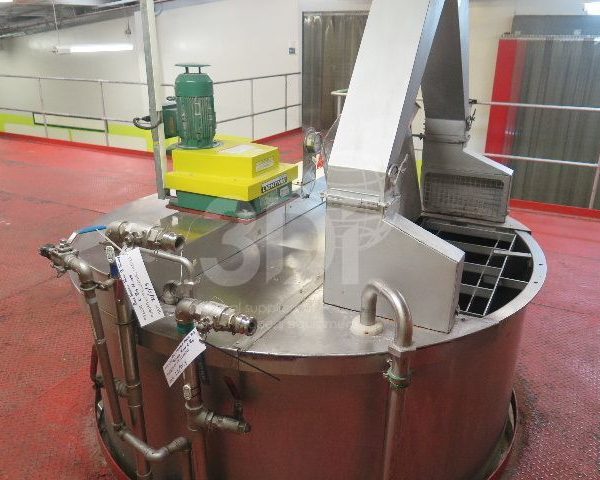

Used 8,400 Litre Stainless Mixing Vessel. Material of construction 316 stainless steel. Orientation vertical, cylindrical, flat top and bottom. Supported on 4 steel legs. Dimensions 2130mm internal diameter, 2700mm on the straight, 3000mm overall height. Fitted with a top mounted off centre 4 blade Lightnin turbine agitator powered by a 1.1kw Siemens electric ATEX motor (3ph, 50hz, 230/440v,  1410rom). Vessel has 3 wraps of internal coils and is 3/4 externally insulated. Previously used to mix personal care products.
