Blagdon Air Operated Double Diaphragm Pump X25


Blagdon Air Operated Double Diaphragm Pump X25
Specification
Description

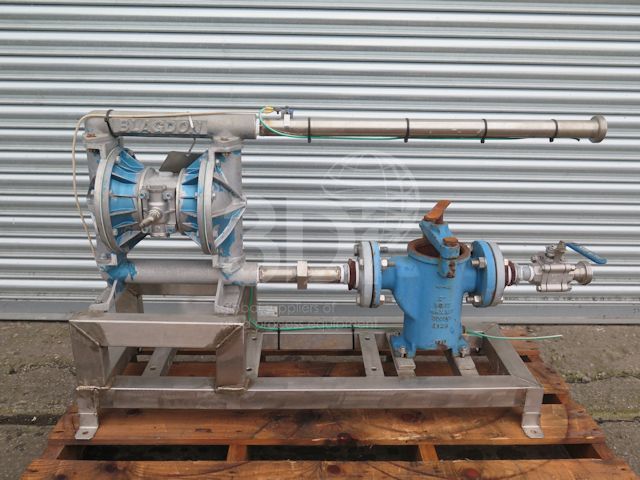

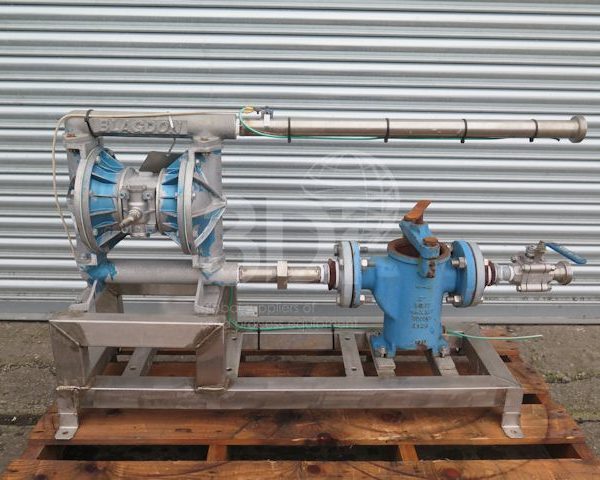

Used Blagdon Air Operated Double Diaphragm Pump X25, manufactured by Blagdon Pump, 2008, model no. X2504AABBBBS, 1inch BSP connections, wetted components aluminium, non-wetted components aluminium, valve type ball, suction orientation bottom, diaphragms Buna-N, valve balls Buna-N, valve seats 316L stainless steel, Atex Cat 2 certified, capacity 180 LPM, max working pressure 8.6bar (125psi). Pump is mounted on a stainless steel support frame and connected to an inline basket strainer.
