Bolz-Summix Conical Screw Mixer SF-600-MJB








Bolz-Summix Conical Screw Mixer SF-600-MJB
Specification
Description

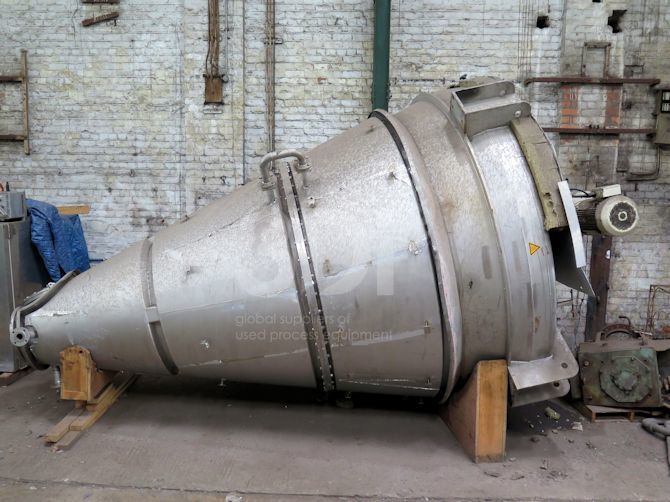

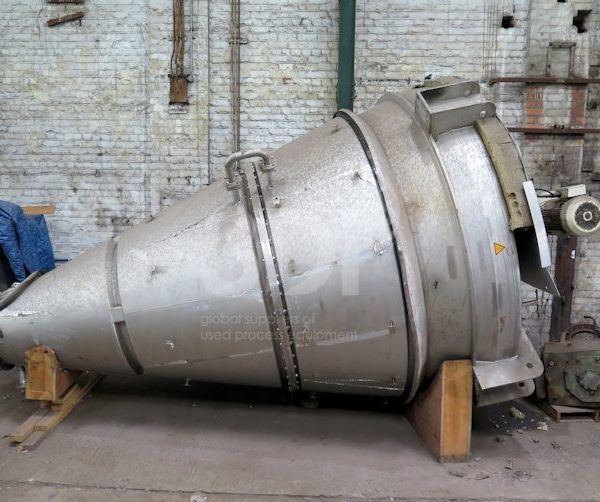

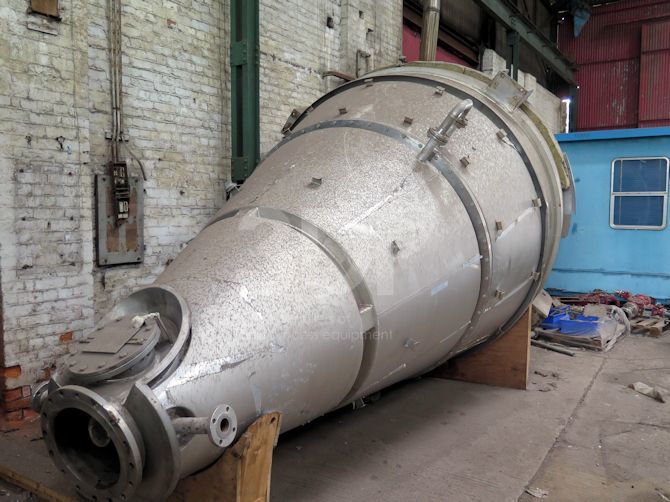

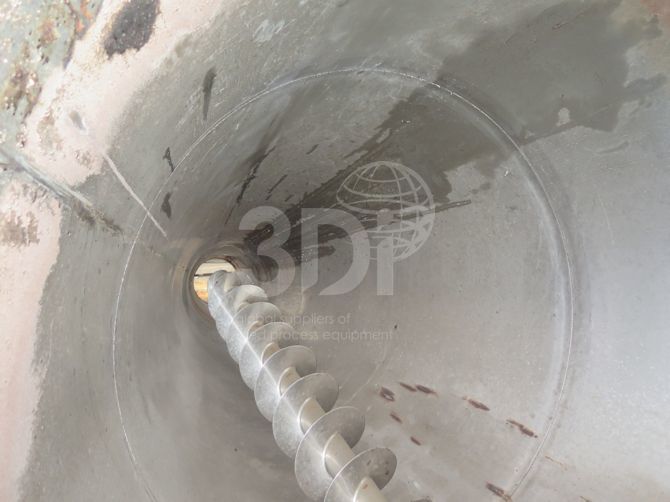

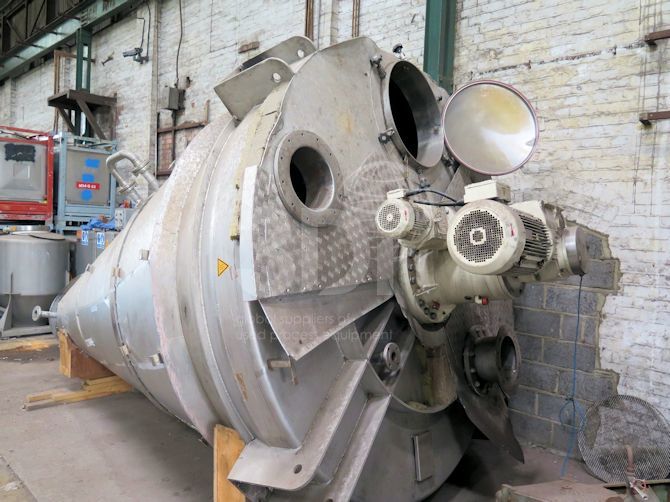

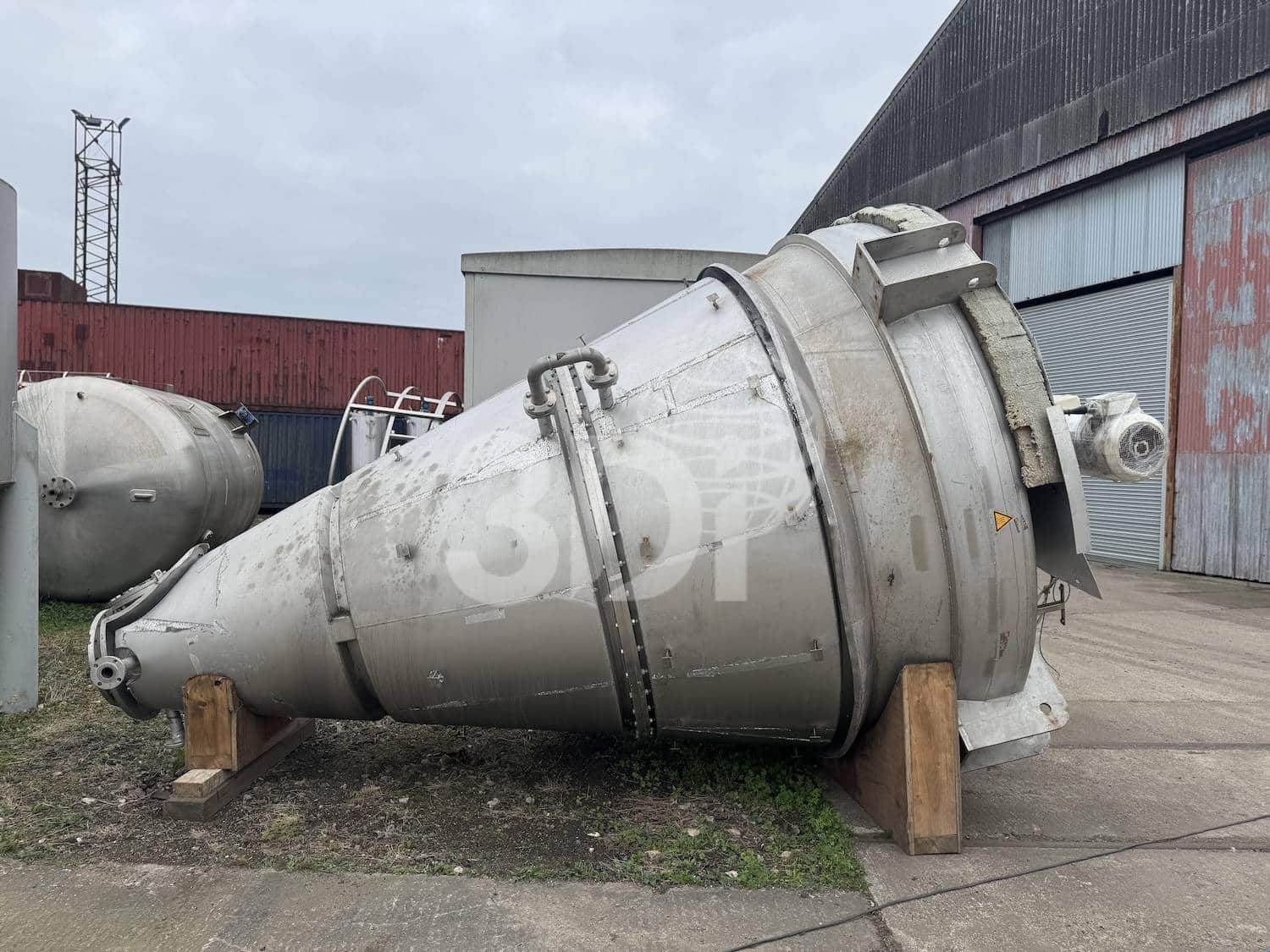

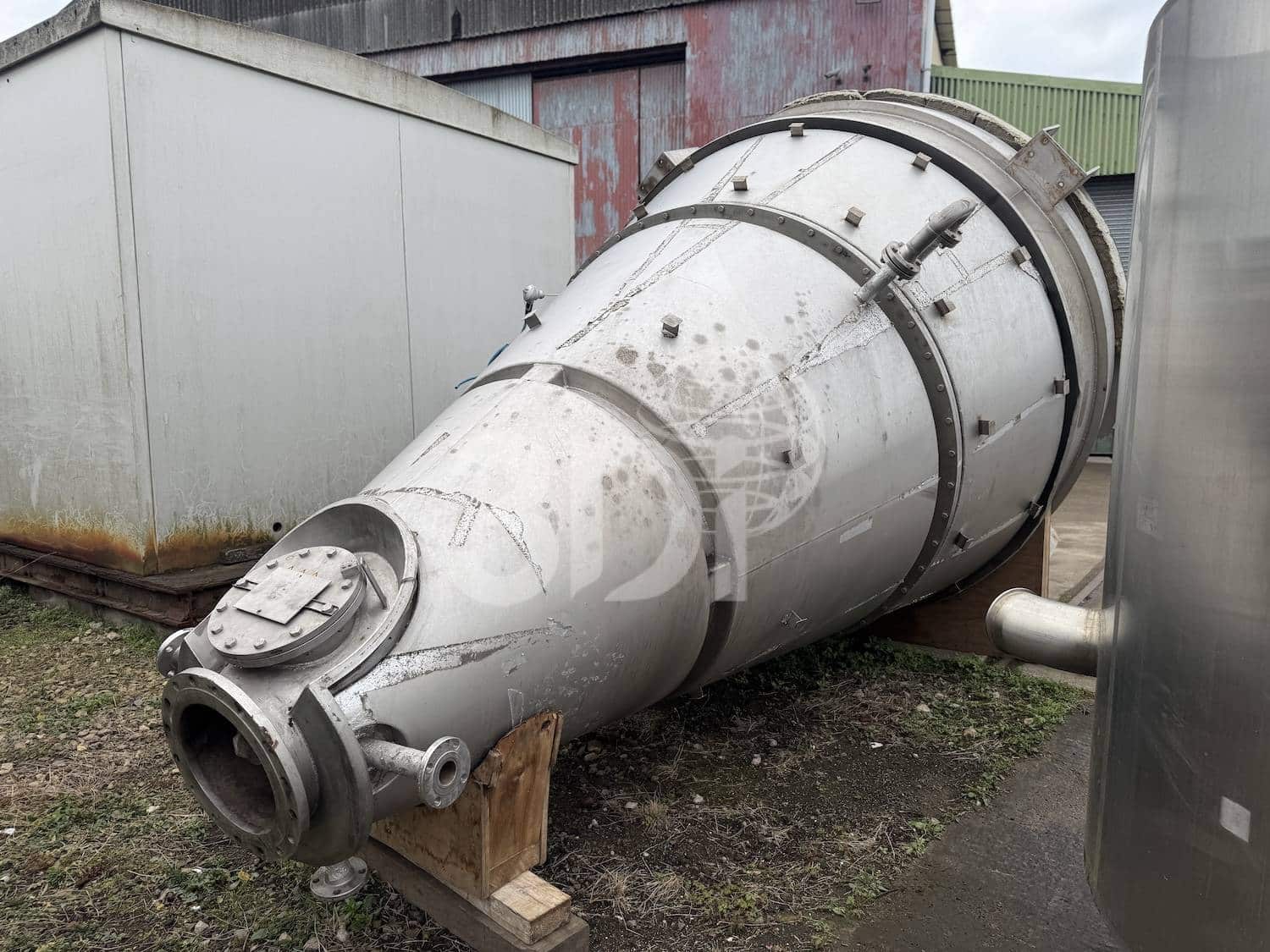

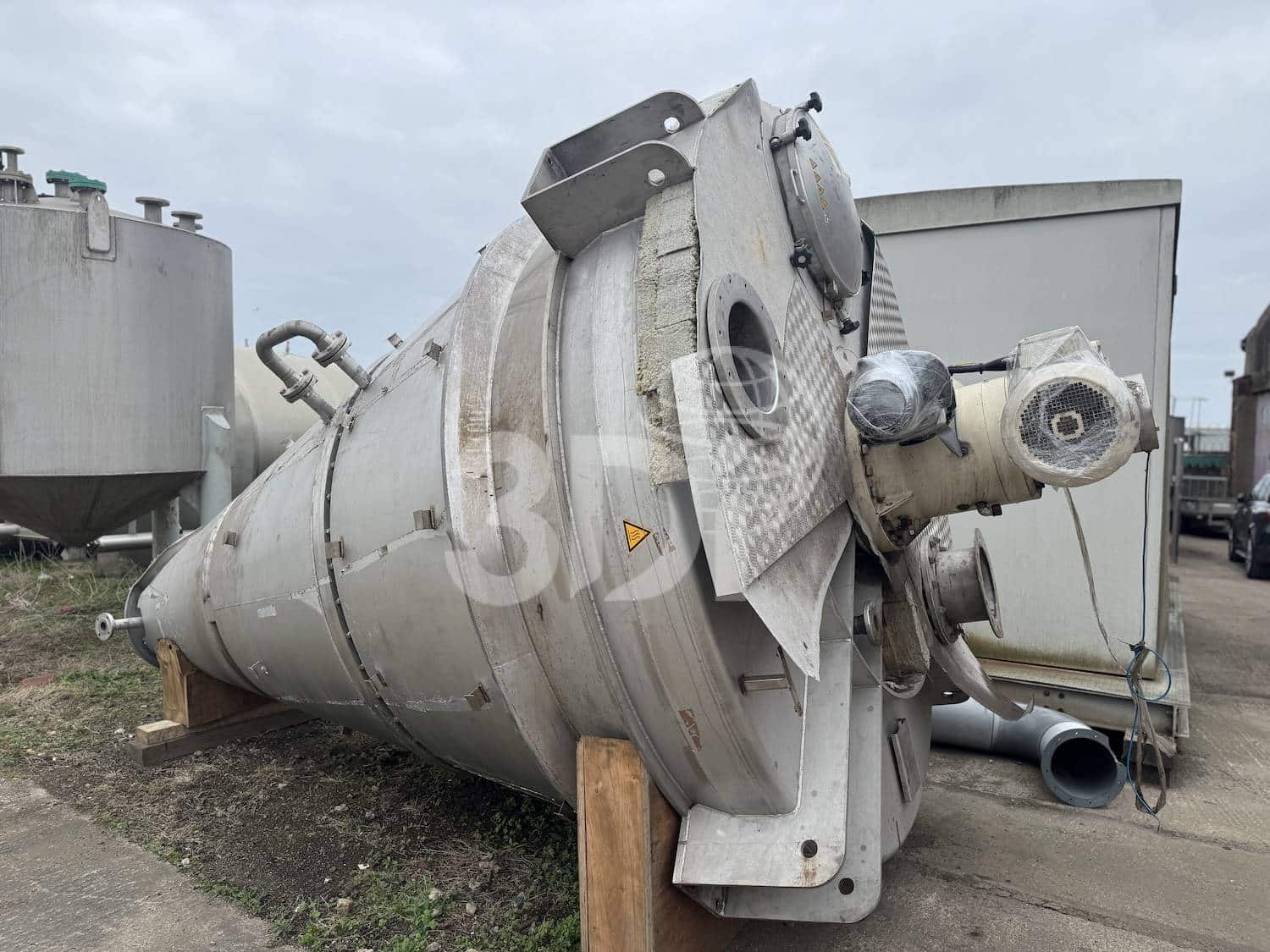

Used 6,000 Litre Conical Screw Mixer/Cooker, built by Bolz-Summix, 2008, Type SF-600-MJB. Material of construction: 304 grade stainless steel (1.4301). Dimensions: 2830mm vessel diameter, 5446mm overall height. Design date: 0-120degC design temperature, 15-105degC operational temperature, atmospheric (possibly +/- 30mbar) design pressure. Mixer/cooker drive type MJB13, screw: 18.5kw motor, orbit arm: 1.5kw motor, 3ph/415v/50hz. Mixer/cooker is complete with a 350mm product discharge valve. Previously used in the food industry.
