Eirich Batch Mixer Model DE 22

Eirich Batch Mixer Model DE 22

Stock #54
1 in stock


Capacity: 1300 litres
Condition Used
Manufacturer Eirich
Model/Type DE22

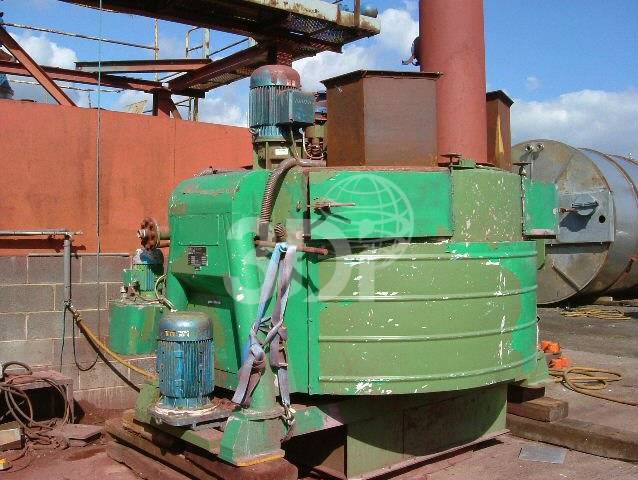

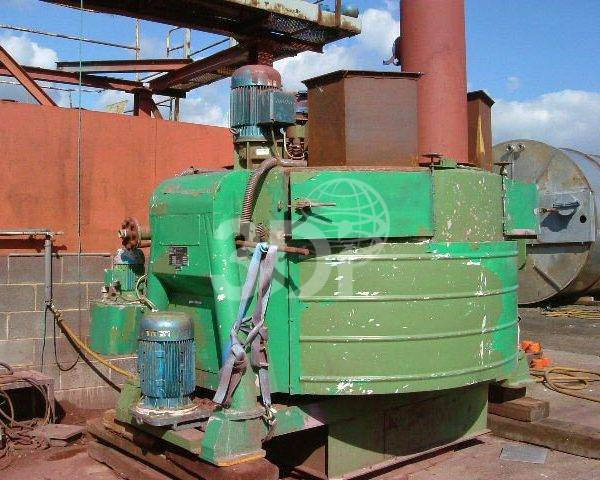

Used 1000-1300 Litre Eirich Model DE 22 c/steel counter current rapid batch mixer, serial # 22681, pan approx 2.2m diameter x 720mm straight side, pan driven by 15 kw, 3/50/380 volt, 1480 rpm motor, agitator pulley driven by 48/67 kw, 3/50/380 volt, 735-1480 rpm motor (pole changeable), (2) tool mixing rotors each driven by approx 11 kw geared motor, discharge gate driven by hydraulic powerpak with 2-speed motor, 3 kw, 3/50/220/380 volt or 3.45 kw, 3/60/440 volt, pan with bottom and wall scrapper blades, motorised lubrication system, unit includes: (2) c/steel feed silos with top mounted dust collectors, (one filling mixer while other was being refilled) + Eirich type UE 62 c/steel rotary disc feed table, serial # 15796, rotating table 2200mm diameter, scraper type agitator driven by 1.5 kw, 3/50/380 volt geared motor, scrapper speed approx 5.2 rpm, (2) discharge gates, mounted on c/steel frame.
