Fairfield Dalton 1,300 Litre Jacketed Mixing Vessel








Fairfield Dalton 1,300 Litre Jacketed Mixing Vessel
Contact us about your equipment needs
Specification
Description

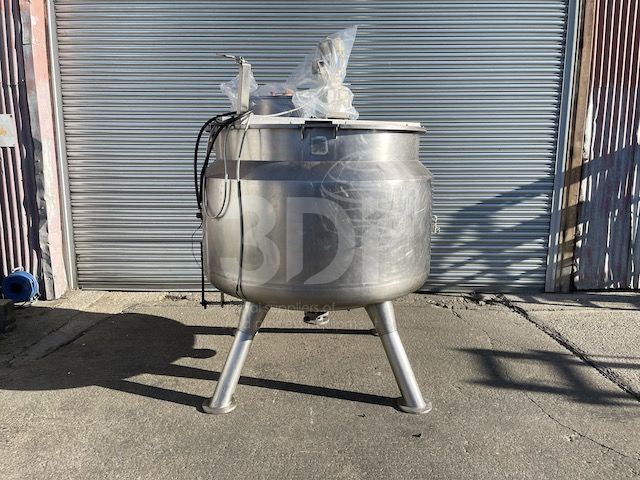

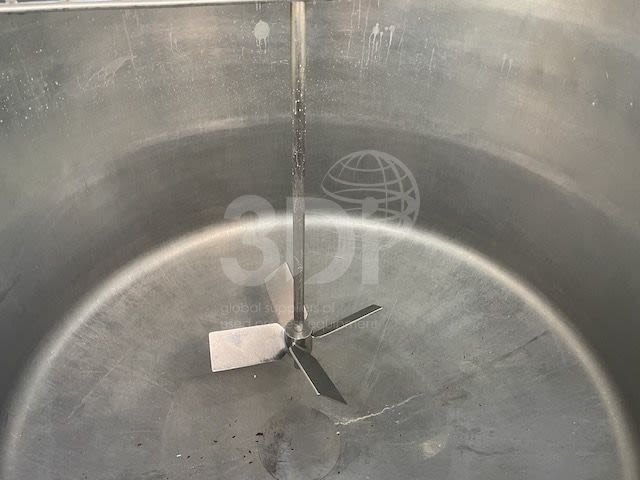

Used Fairfield Dalton 1,300 Litre Jacketed Mixing Vessel, manufactured by Fairfield Dalton, 1988. Serial no. 11009.1.88. Material of construction 304 stainless steel. Orientation vertical, cylindrical, dished bottom, flat top. Supported on 4 stainless steel legs. Dimensions 1300mm diameter, 2200mm overall height. Vessel has a steam jacket, is insulated and clad in stainless steel. Jacket working pressure is 3.52 bar. Vessel is fitted with a top mounted off centre 4 axial blade turbine agitator, powered by a 0.75kw electric motor. Vessel was previously used on cosmetics.
