Fairfield Hytec 1,400 Litre Jacketed Mixing Vessel

Fairfield Hytec 1,400 Litre Jacketed Mixing Vessel

Stock #2788
Out of stock

Contact us about your equipment needs

Specification

Capacity: 1400 litres
Manufacturer Fairfield Hytec
Material 316 Stainless Steel

Description

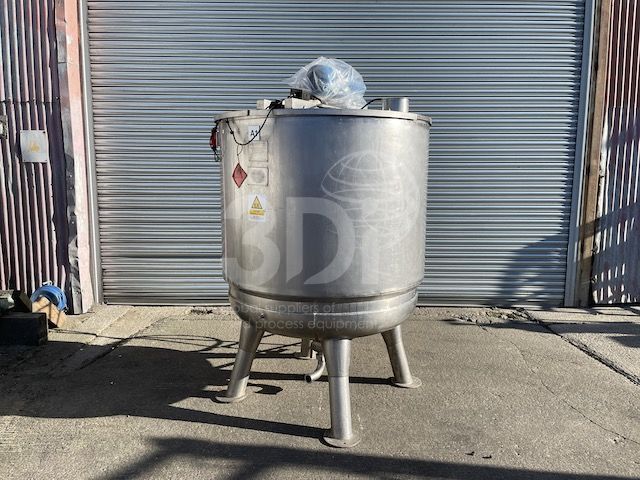

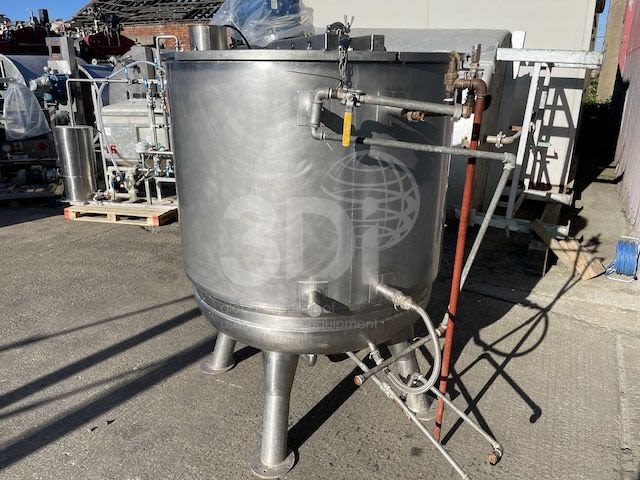

Used Fairfield Hytec 1,400 Litre Jacketed Mixing Vessel, manufactured by Fairfield Hytec, 1996. Serial no. 284/2599/96/J3605. Material of construction 316 stainless steel. Orientation vertical, cylindrical, dished bottom, flat top. Supported on 4 stainless steel legs. Dimensions 1200mm internal diameter, 1050mm on the straight, 200mm bottom dish, 2100mm overall height. 2 inch bottom outlet, with manual ball valve fitted. The vessel is jacketed, insulated and clad in stainless steel. Jacket working pressure is 2.81 bar at 141 degC. Vessel is fitted with a top mounted 4 blade turbine agitator powered by a 0.75kw Euromixers electric motor. Previously used on cosmetics.
