Flotronic Diaphragm Pump Series 710








Flotronic Diaphragm Pump Series 710
Contact us about your equipment needs
Specification
Description

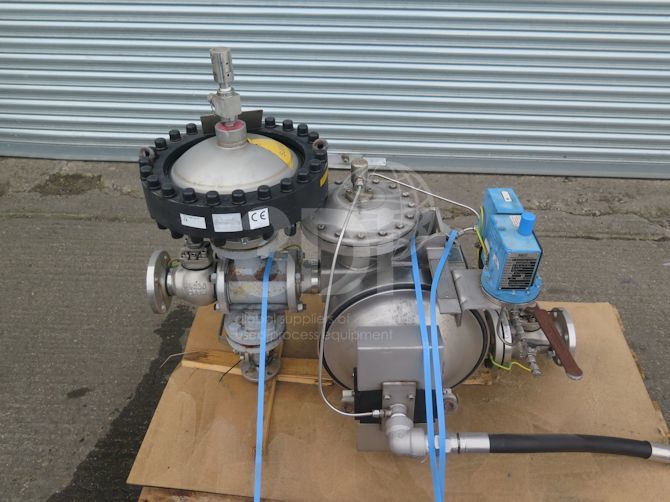

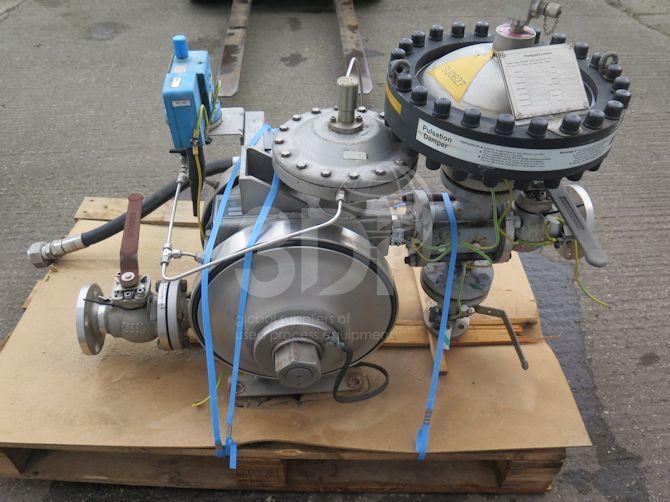

Used 544 Lpm Air Operated Double Diaphragm Pump, manufactured by Flotronic Pumps, 2003, Model 7X866ATTS150261, Serial no. 7022/03/07, connections 50mm (2 inch) ANSI 150 flanged, material of construction(wetted parts): pump body and manifolds 316 stainless steel, thrust tube 316 stainless steel, diaphragms anti-static PTFE/EPDM rubber backing, divider seal/bruch anti static PTFE, balls virgin PTFE, valve seats 316 stainless steel/PTFE O-rings. Air system: 5 p[ort, anti-static PTFE, bolt on spool valve, stainless steel air inlet ball valve. Additional features: integral pulsation damper, guardian diaphragm rupture protection system, guardian chamber pressure switch, ATEX certification. Weight 140kgs. Previous used on chemicals (Ethly Acetate).
