Fluko In-Line Dispersing Machine DMS 3.2/50-20

Fluko In-Line Dispersing Machine DMS 3.2/50-20

Stock #2391
2 in stock


Capacity: 30 m3/hr
Condition Used
Manufacturer Fluid Kotthoff Gmbh
Build Year 2010
Model/Type DMS3.2/50-20
Industry Paint and Coating

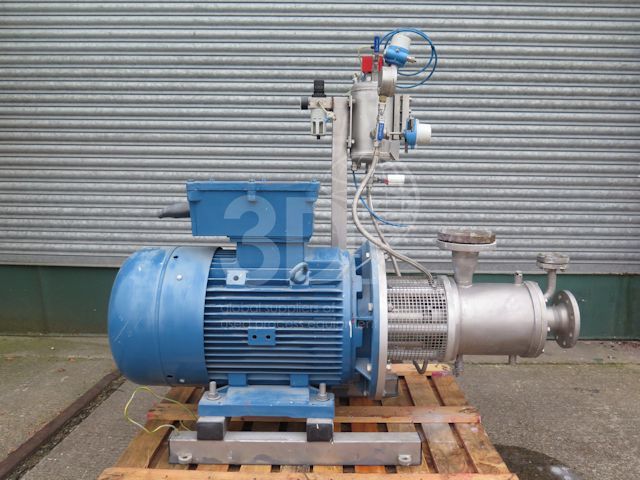

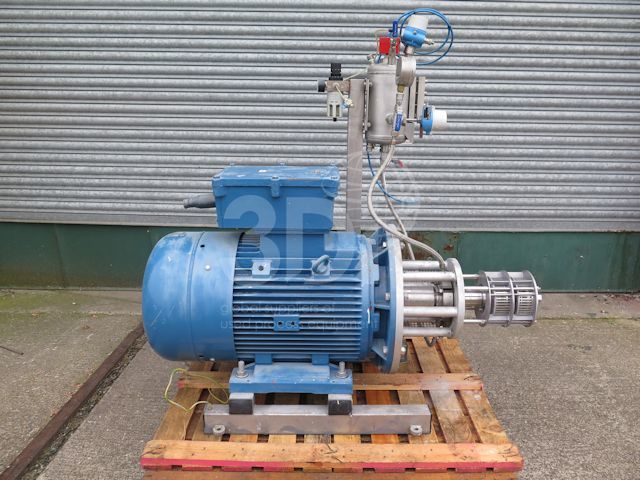

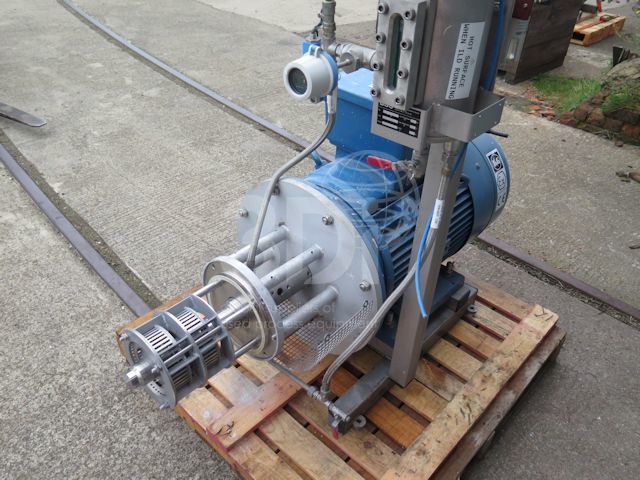

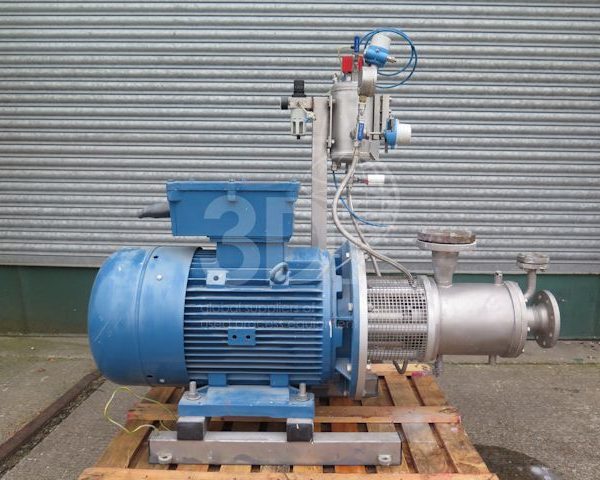

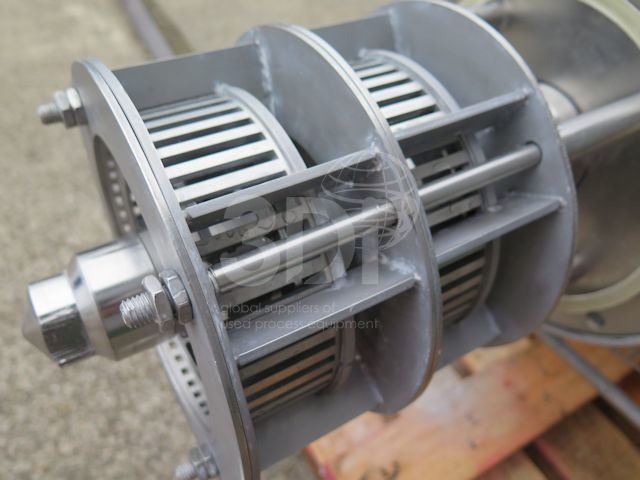

Used Fluko In-Line Dispersing Machine DMS 3.2/50-20, manufactured by Fluid Kotthoff Gmbh, 2010. Machine No. 17434. Material of construction: housing, shaft, all product contacting parts in 1.4571 (AISI316Ti). Flow rate 30m3/hr. Rotor speed 20m/sec. 2 mixing chambers with cooling jacket on mixing chamber. Rotor type: 2 x AN 10/50. Stator type: 2 x B50. Stator inlet: 2 x BE48/50. Inlet/outlet connections: flanged DN80 PN16 DIN2642. Cartex cartridge type double mechanical seal. Fitted with a 55kw ATB electric motor (3ph, 415v,50hz, 2850rpm), ATEX rated. Machine is fitted with a mixing chamber silencer DMS3. Previously used in the paint and coating industry.

Dimension (LxWxH): 150 x 120 x 150 cm
Weight (kg): 950
