Stock #1997
1 In Stock
Mac Process Rotary Valve FTA200
Specification
Condition | Unused |
---|---|
manufacturer | Mac Process |
Model Type | FTA200 |
Description

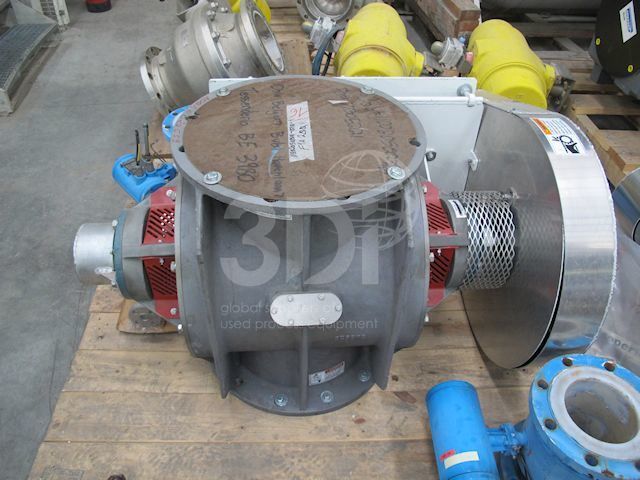

Unused Rotary Valve, manufactured by Mac Process (Schenck Process), 2012, Model FTA200 Airlock, Serial no. 1100205000-010-1, material of construction: grey cast iron housing bore and inlet/outlet hard chromium plated, rotor stainless steel. Flange inlet/outlet 350mm. Flange to flange height 680mm. 8 flange holes, PCD 480mm, overall flange width 535mm. Valve is complete with a NIDEC Electric Motor (3hp, 50hz, 1455rpm) and SEW Eurodrive (40rpm).
