R&B Filtration Recessed Plate Filter Press

Stock #2289
Not in stock

Contact us about your equipment needs

Specification

Condition Used
Manufacturer R&B Filtration
Build Year 1997
Model/Type 10/10 MEH-W

Description

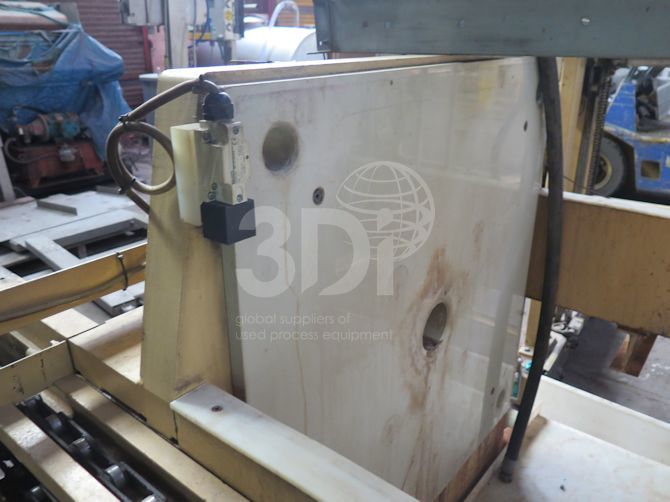

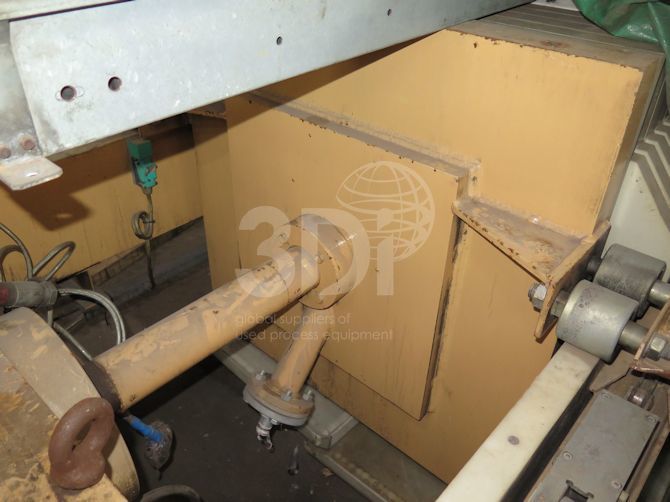

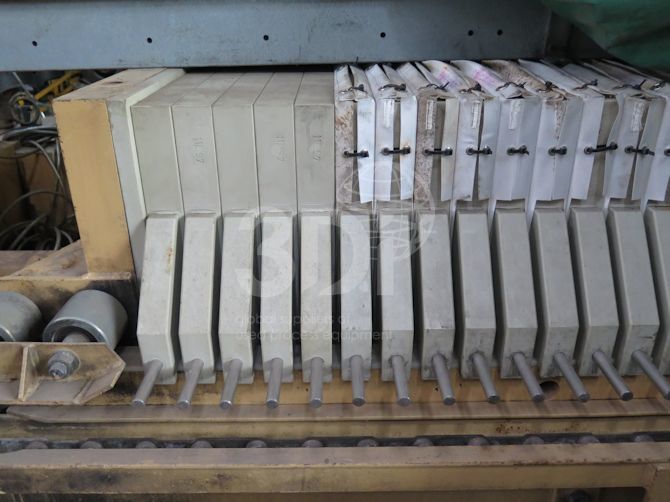

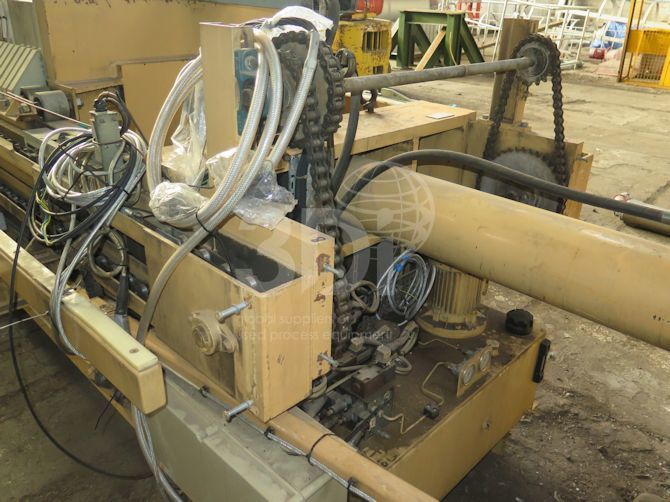

Used Recessed Plate Filter Press, manufactured by R&B Filtration Systems Ltd (Andritz), 1997. Machine Type 10/10 MEH-W. Side-bar design. Centre fill, four corner discharge. (65) 1000mm x 1000mm polypropylene recessed plates. Plates are fitted with intermediate filter cloths. 25mm recess gap. Overall dimensions: 1800mm wide, 7000mm long, 1460mm high. Filter press comes with top mounted cloth wash system, control panel, support legs (1000mm high), guards and galvanised steel access platform. Complete with manufacturers O&M manual, (3) new double intermediate filter cloths, (1) new double feed head filter cloth, (1) drape over tail end filter cloth. Previously used on chemicals.
