Ultrafilter Compressed Air Dryer ALG 100SM


Ultrafilter Compressed Air Dryer ALG 100SM
Specification
Description

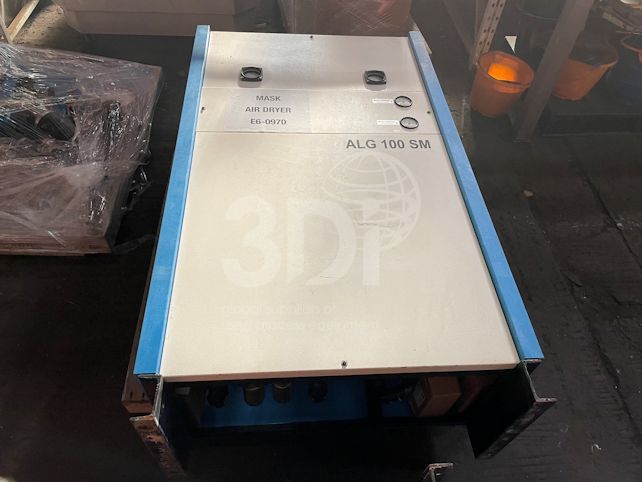

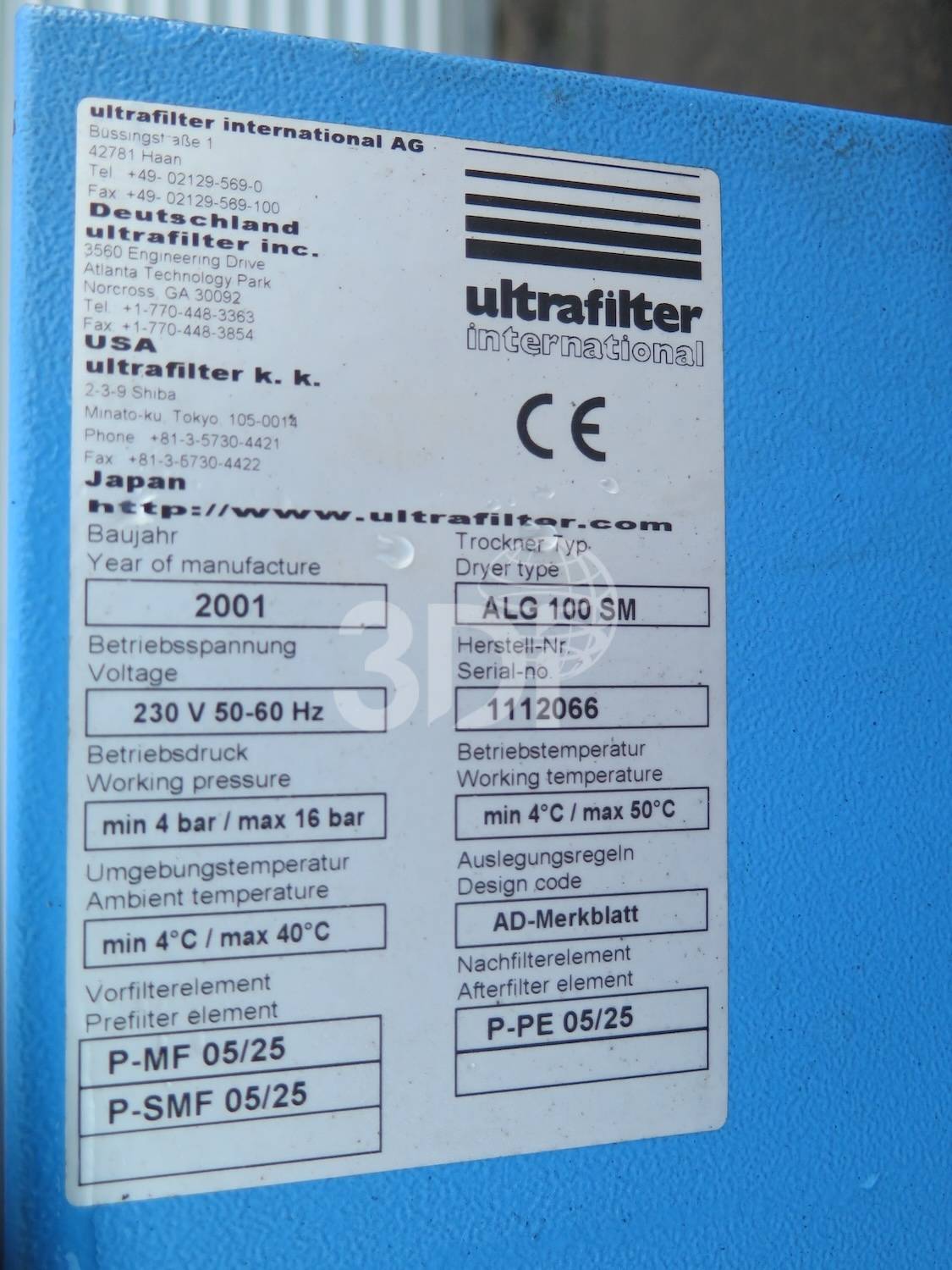

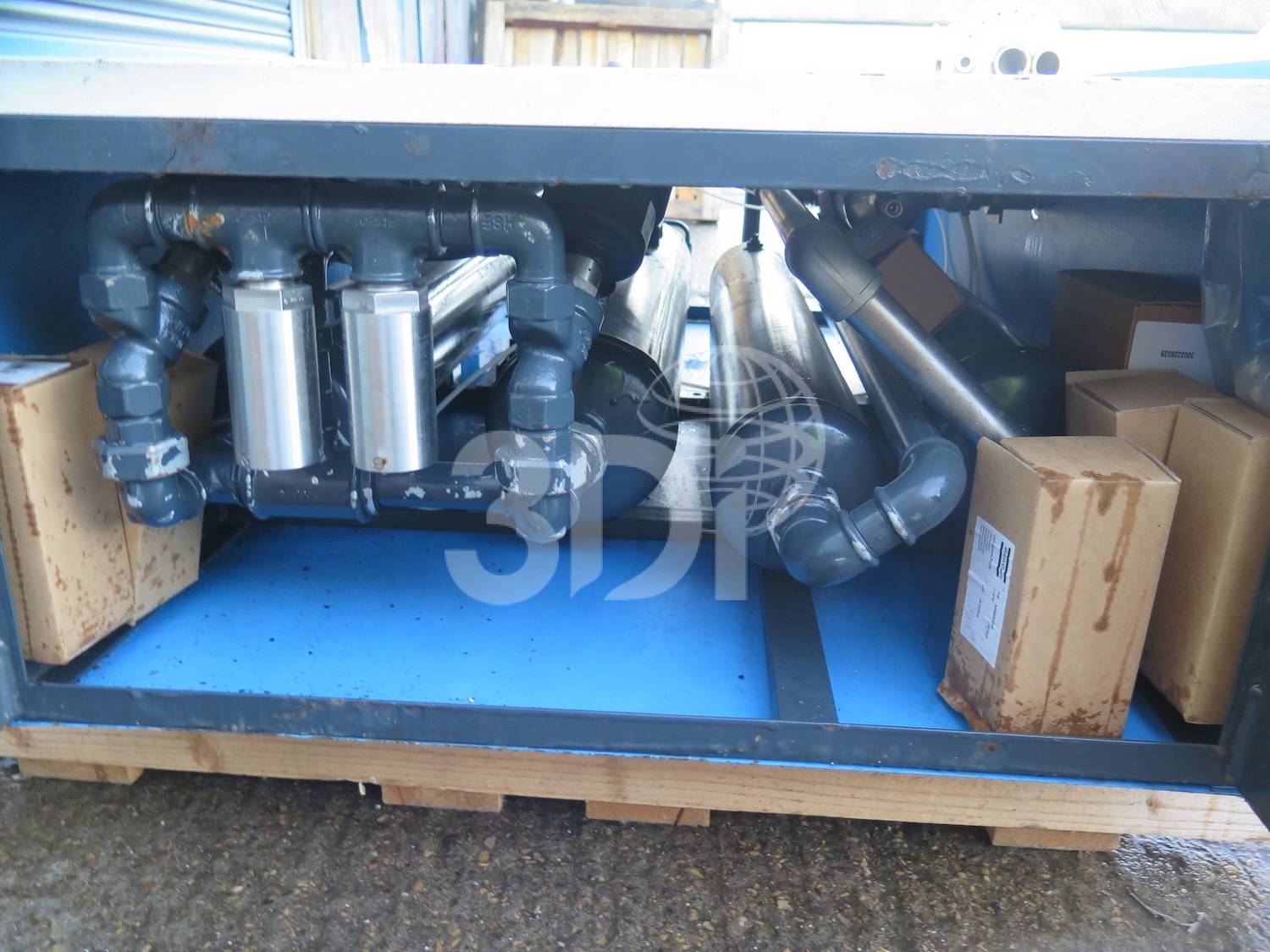

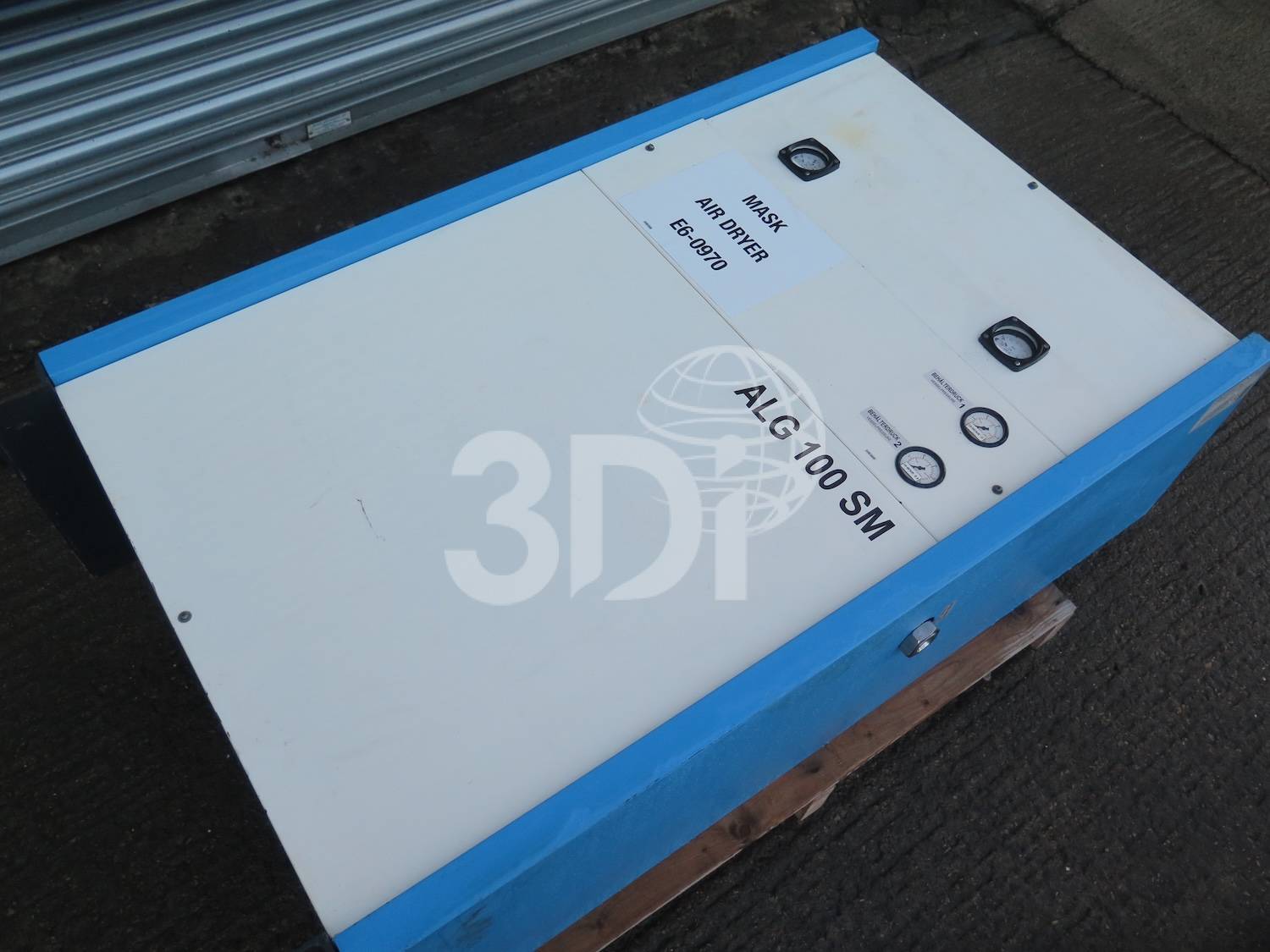

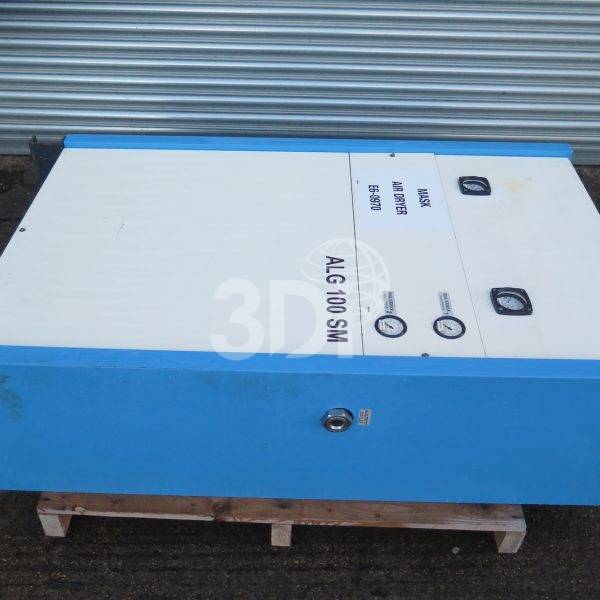

Used Ultrafilter Compressed Air Dryer ALG 100SM, manufactured by Ultrafilter International (Donaldson), 2001. Dryer type ALG 100SM. Serial No. 1112066. Volume flow inlet 100m3/hr at 1 bar and 20degC, volume flow outlet 81.6m3/hr at 1 bar and 20degC. Dimensions 1610mm height, 940mm width, 460mm depth. Weight 240kg. Voltage 230 v, 50-60hz. Design code AD-Merkblatt, working pressure min 4 bar / max 16 bar. working temperature min 4 degC / max 50degC. Typical appliactions are for breathing air and the removal of oil and particles as well as tastes and odours, CO, CO2, SO2 and NOx.
