Ultrafilter MSD 100M Compressed Air Dryer


Ultrafilter MSD 100M Compressed Air Dryer
Specification
Description

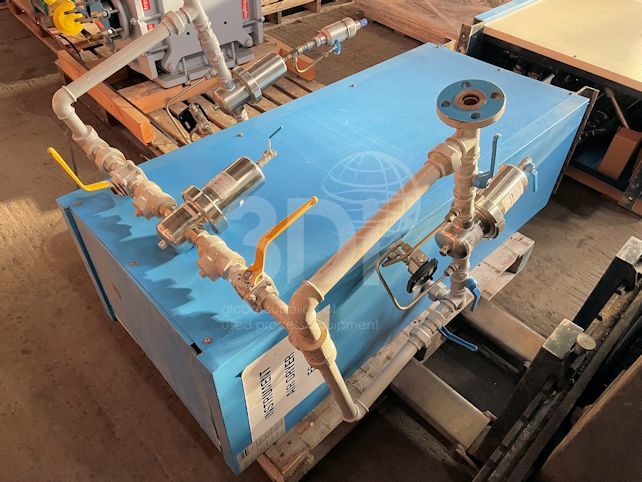

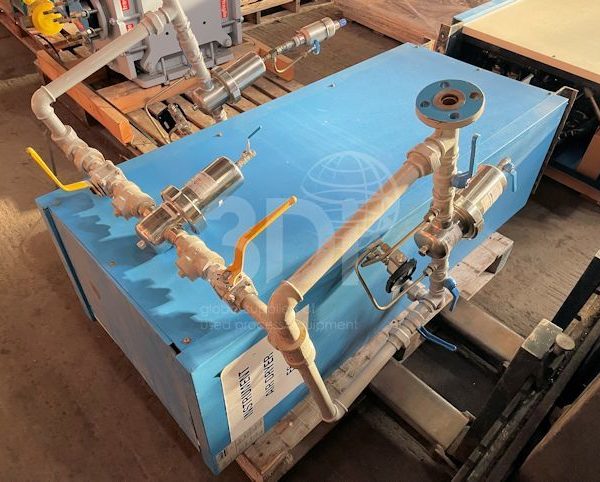

Used Ultrafilter MSD 100M Compressed Air Dryer, manufactured by Ultrafilter International (Donaldson), 2001. Dryer type MSD 100M. Serial no. 1112067. Volume flow in 100m3/hr at 1 bar at 20degC, volume flow out 75.4m3/hr at 1 bar at 20degC. Dimensions 1610mm height, 670mm width, 450mm deep. Weight 169kg. Voltage 230v, 50-60hz. Design code AD-Merkblatt, working pressure min 4 bar/max 16bar, working temperature min 4 degC / max 40degC. Typical applications are central compressed air purification, generation of dry, oil-free and particulate free compressed air, point of use applications drying and purification of control and instrument and process air, automotive industry purification of compressed air for painting applications.
