Ultrasonic Cleaner Tank
















Ultrasonic Cleaner Tank
Specification
Description

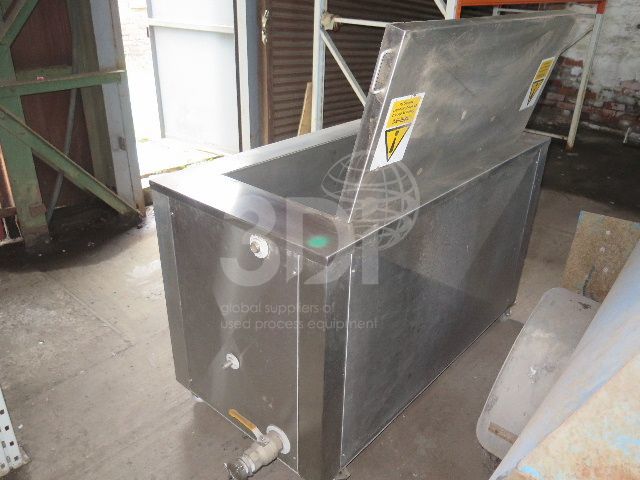

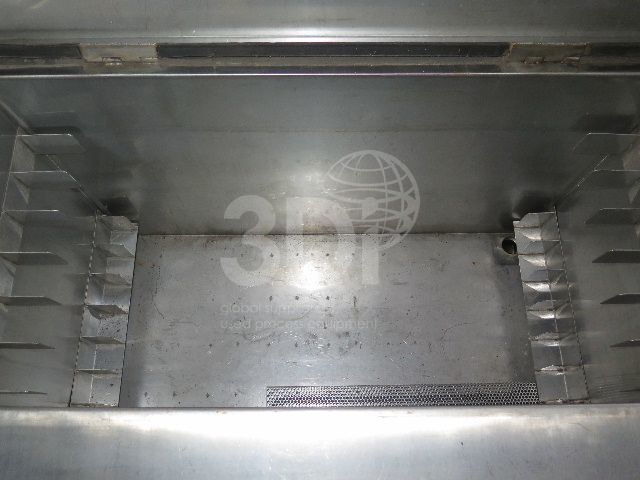

Used Ultrasonic Cleaner Tank, manufactured by Sonic Solutions Ltd, 2001. Model No. SS1150 RC. Serial No. SS1079. Orientation: horizontal, rectangular. Dimensions: 1150mm inside length, 500mm inside width. Construction: 316L stainless steel. Power supply: 415v/3ph/50Hz and neutral 20amp per phase supply. Power rating: ultrasonic 2400 watt @ 8amp total, heaters 6kw @ 27amp total. Air supply: 80 psi. Ultrasonic transducer configuration: 24bar 100 watt modules bonded and mechanically fastened to sides of tank. Heater type: 1 x 6kw immersion heater thermostatically controlled. Complete with control panel and manufacturers dossier.
