100 Litre Jacketed Mixing Tank

Specification

Condition	Used
capacity	100
Capacity Type	Litres
material	304 Stainless Steel

Description

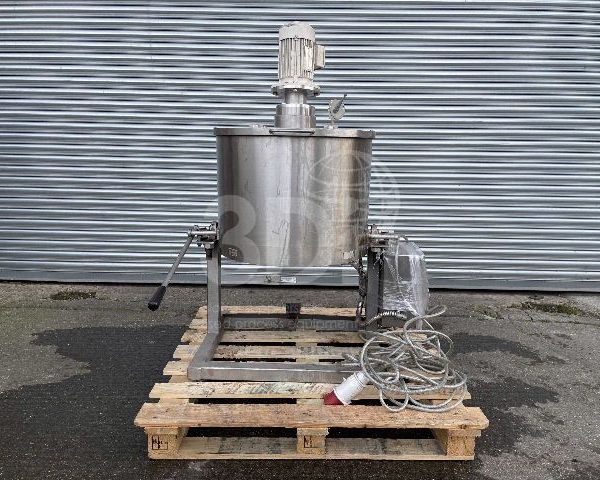

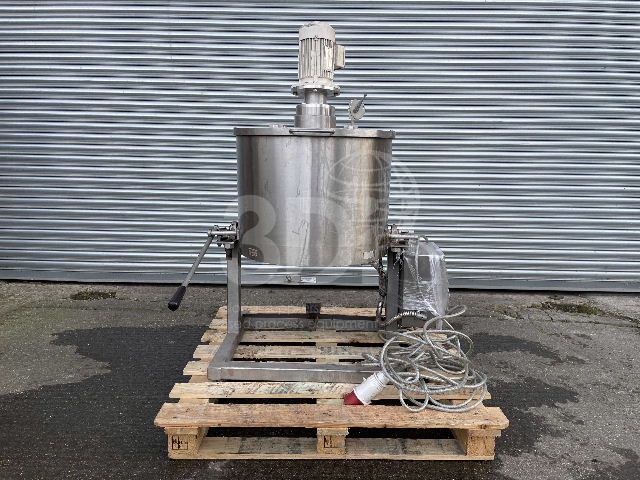

Used 100 Litre Jacketed Mixing Tank. Material of construction 304 stainless steel. Orientation vertical, cylindrical, flat bottom and top. The tank is heated internally with a electrically heated jacket (400 volts, 8220 watts, 3ph, 50hz) and is fitted with a Chromalox 1603E temperature controller which goes up to 375degF. The tank is supported on a manually operated tilting frame. Dimensions 600mm internal diameter, 400mm deep, 1320mm overall high, 1000mm wide. Connections: 1 x 50mm side bottom outlet, 30mm BSP top inlet, spray ball. Tap is fitted with a top mounted high speed disperser mixer powered by a 0.55kw electric motor. Previously used in the food industry.
