1,000 Litre Jacketed Stainless Steel Mixing Vessel
Specification
| Condition | Unused |
|---|---|
| capacity | 1000 |
| Capacity Type | Litres |
| manufacturer | Stamford Fabrications |
| Build Year | 2003 |
| material | 316L Stainless Steel |
Description

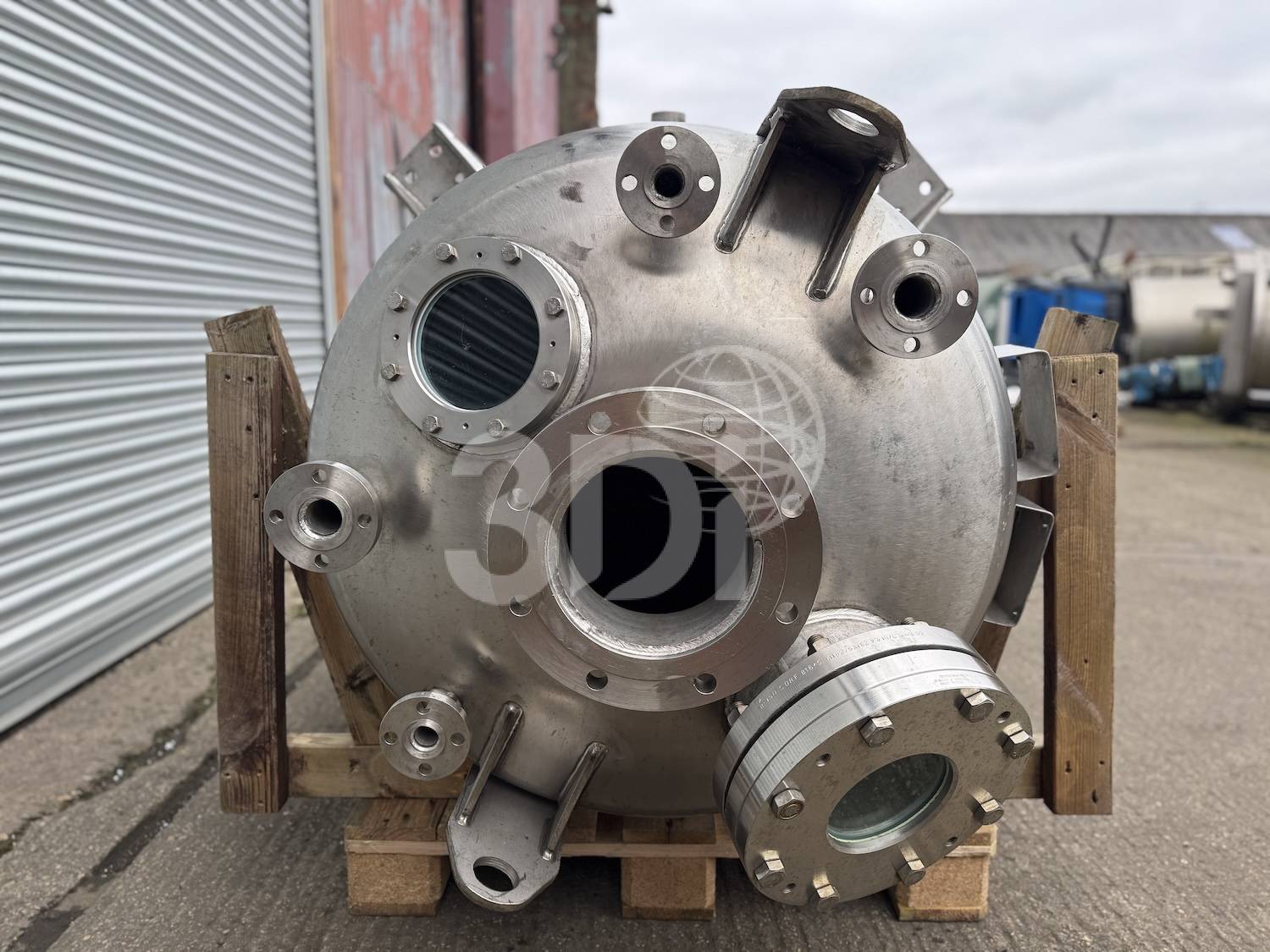

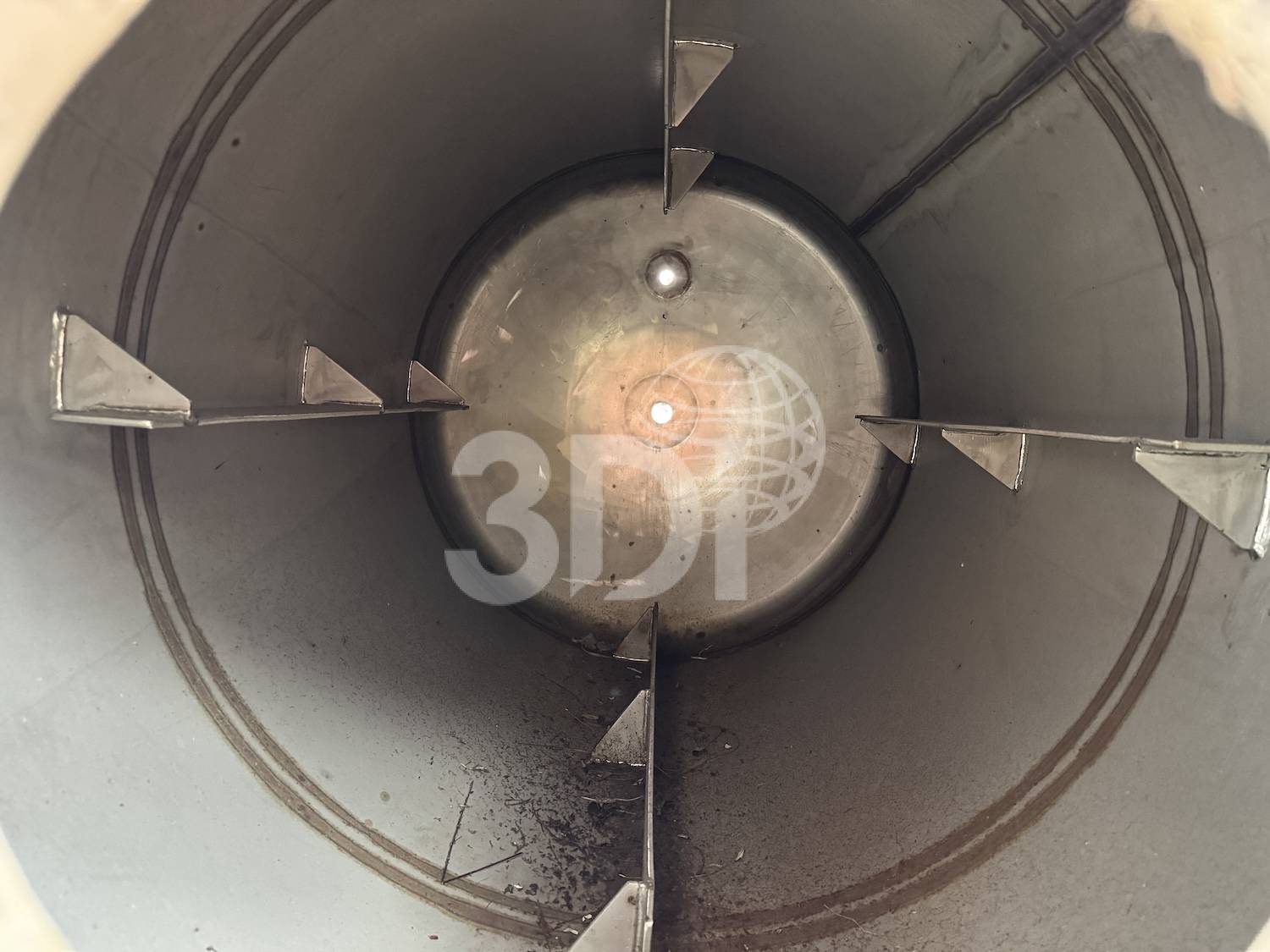

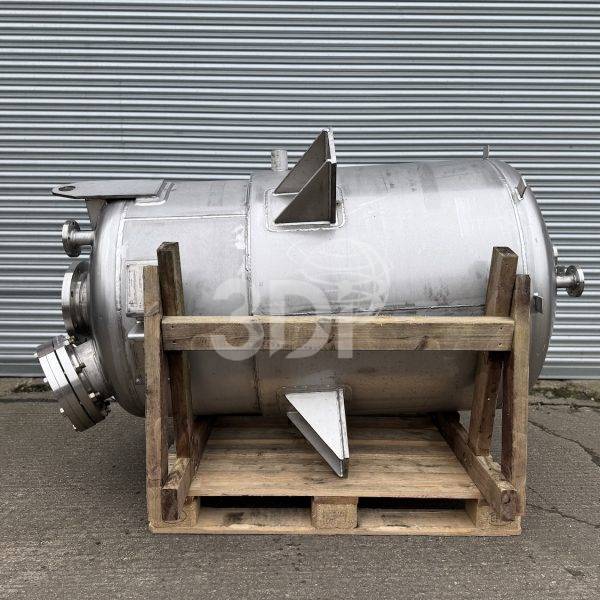

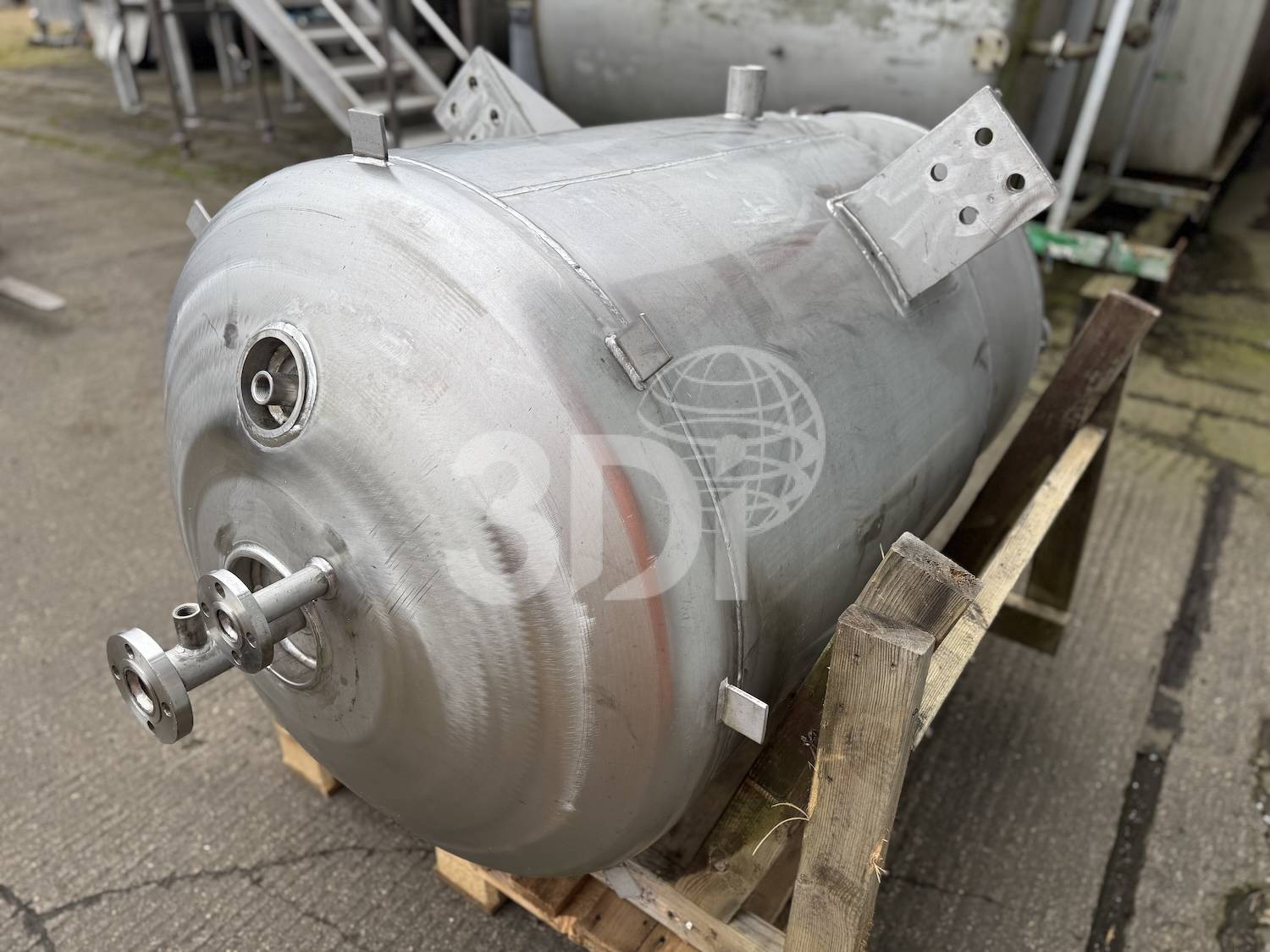

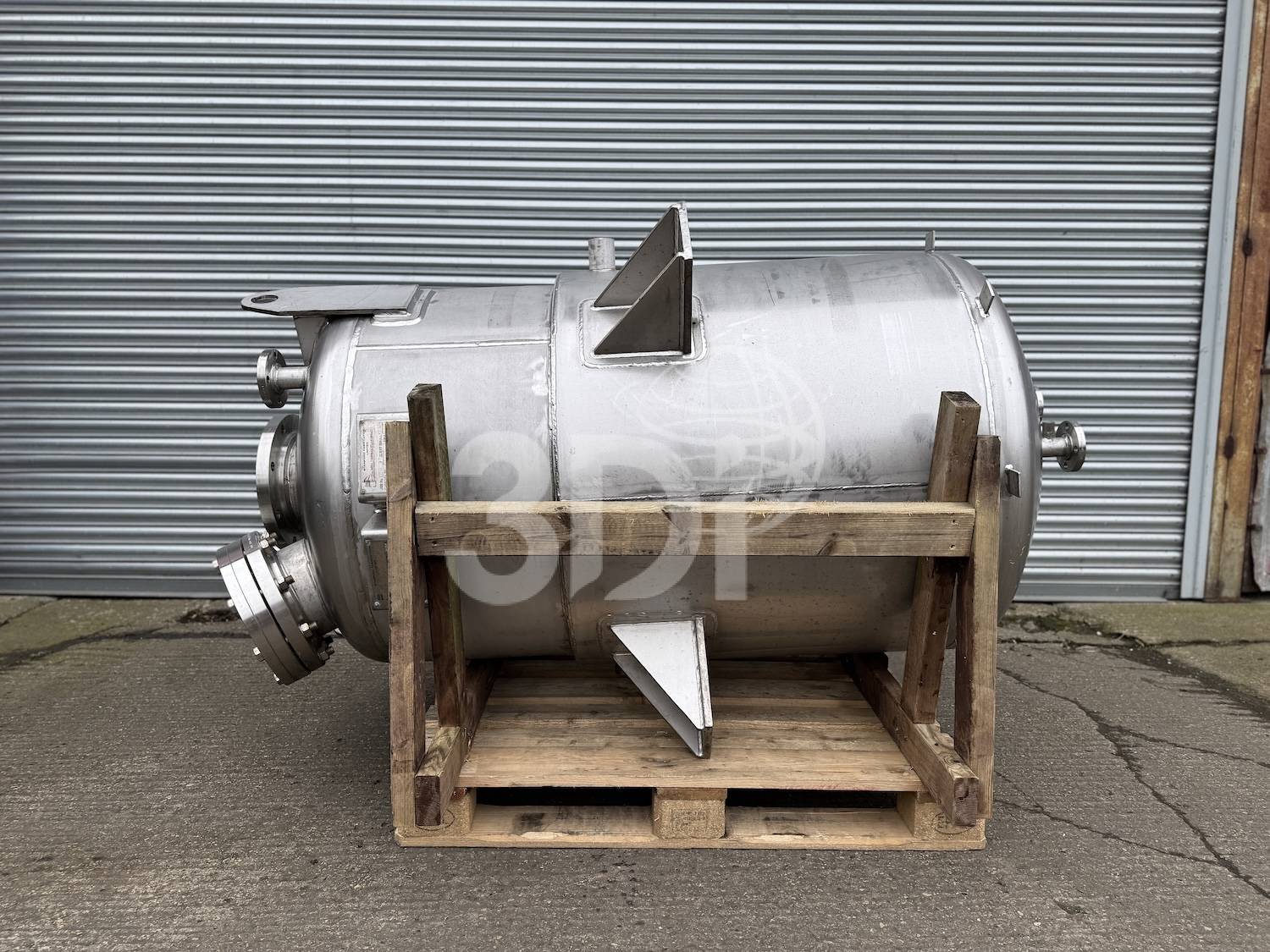

Unused 1,000 Litre Jacketed Stainless Steel Mixing Vessel, manufactured by Stamford Fabrications Ltd, 2003. Material of construction 316L Stainless Steel. Orientation vertical, cylindrical, dished ends. Supported on 4 x stainless steel side supports. Vessel dimensions are 900mm diameter, 1280mm on the straight, 2100mm overall height. Connections: 1 x 200mm top centre inlet, 1 x 200m top sight glass, 1 x 150mm top sight glass, 2 x 40mm top inlet, 2 x 25mm top inlet, 1 x 40mm bottom outlet. The vessel is fitted with 4 off internal baffles. The vessel was built in accordance with design code BS5500 CAT3, vessel design pressure ATMOS, vessel test pressure 0.38bar, vessel design pressure -40/+38degC, jacket design pressure 4,83 bar, jacket design temperature -40/+38degC. Please note this vessel does not come with an agitator, gearbox or motor.
