Stock #1422
1 In Stock
10,000 Litre Stainless Steel Mixing Vessel
Specification
| Condition | Used |
|---|---|
| Capacity Type | Litres |
| material | 316 Stainless Steel |
| industry | Chemical |
Description

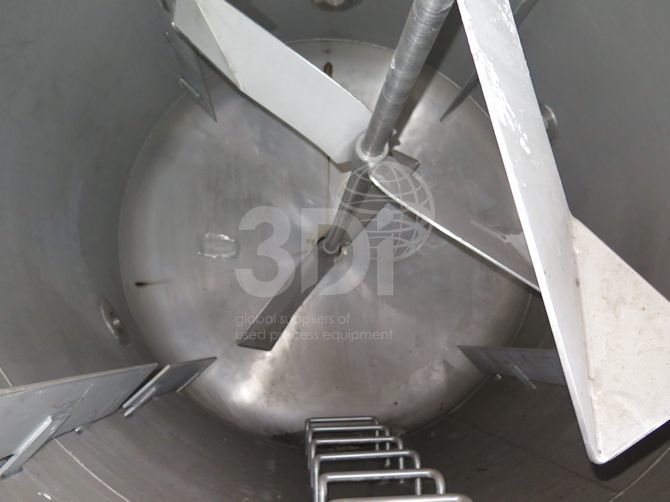

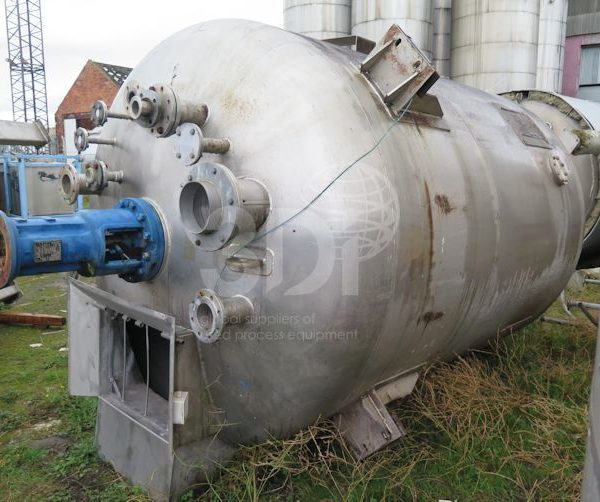

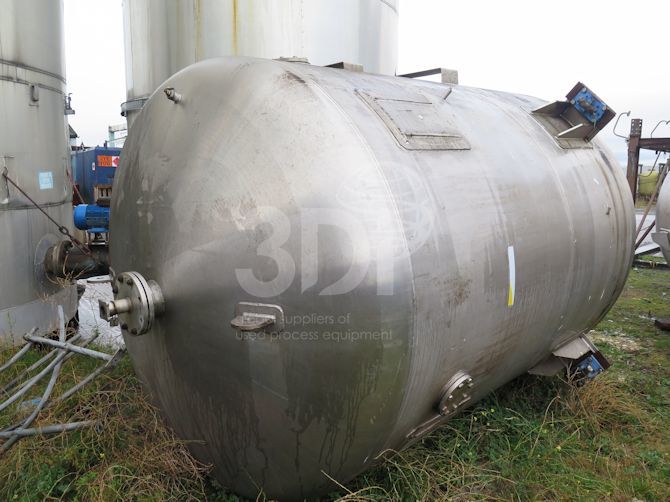

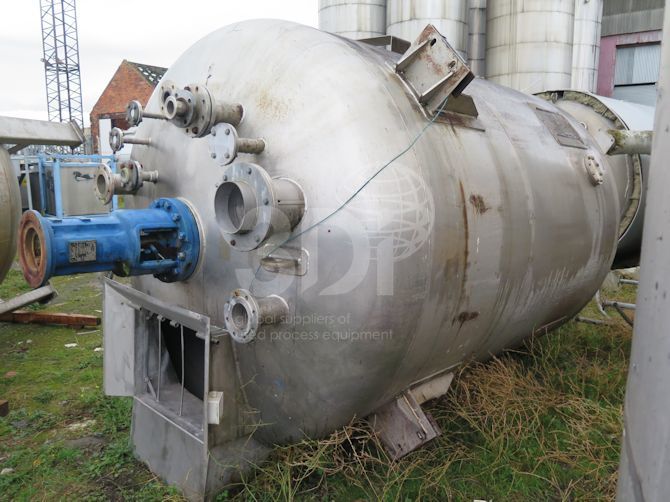

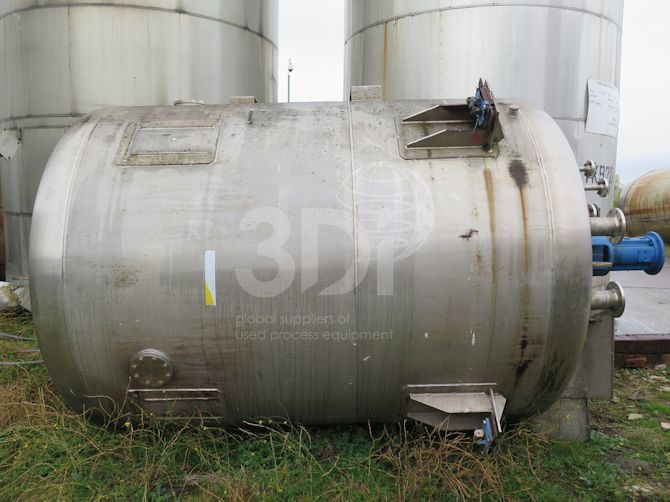

Used 10,000 Litre Stainless Steel Mixing Vessel. Material of construction 316 stainless steel. Orientation: vertical, cylindrical, dished top and bottom, with side supports. Dimensions: 2160mm internal diameter, 2500mm tan to tan, 4800mm overall length excluding motor, 2700mm overall dia. Vessel is complete with a triple flight twin blade turbine agitator driven by a Stelzer drive type SNR25/06, 1992, with 4kw electric motor. Connections: (1) 700mm x 500mm top charge hatch, top connections (4) 100mm, (1) 100mm, (2) 25mm, (1) 50mm, (2) 80mm. Previously used on chemicals.
