10,820 Litre Stainless Steel Mixing Tank

Specification

Condition	Unused
capacity	10820
Capacity Type	Litres
manufacturer	Biomashin
Build Year	2022
material	316L Stainless Steel

Description

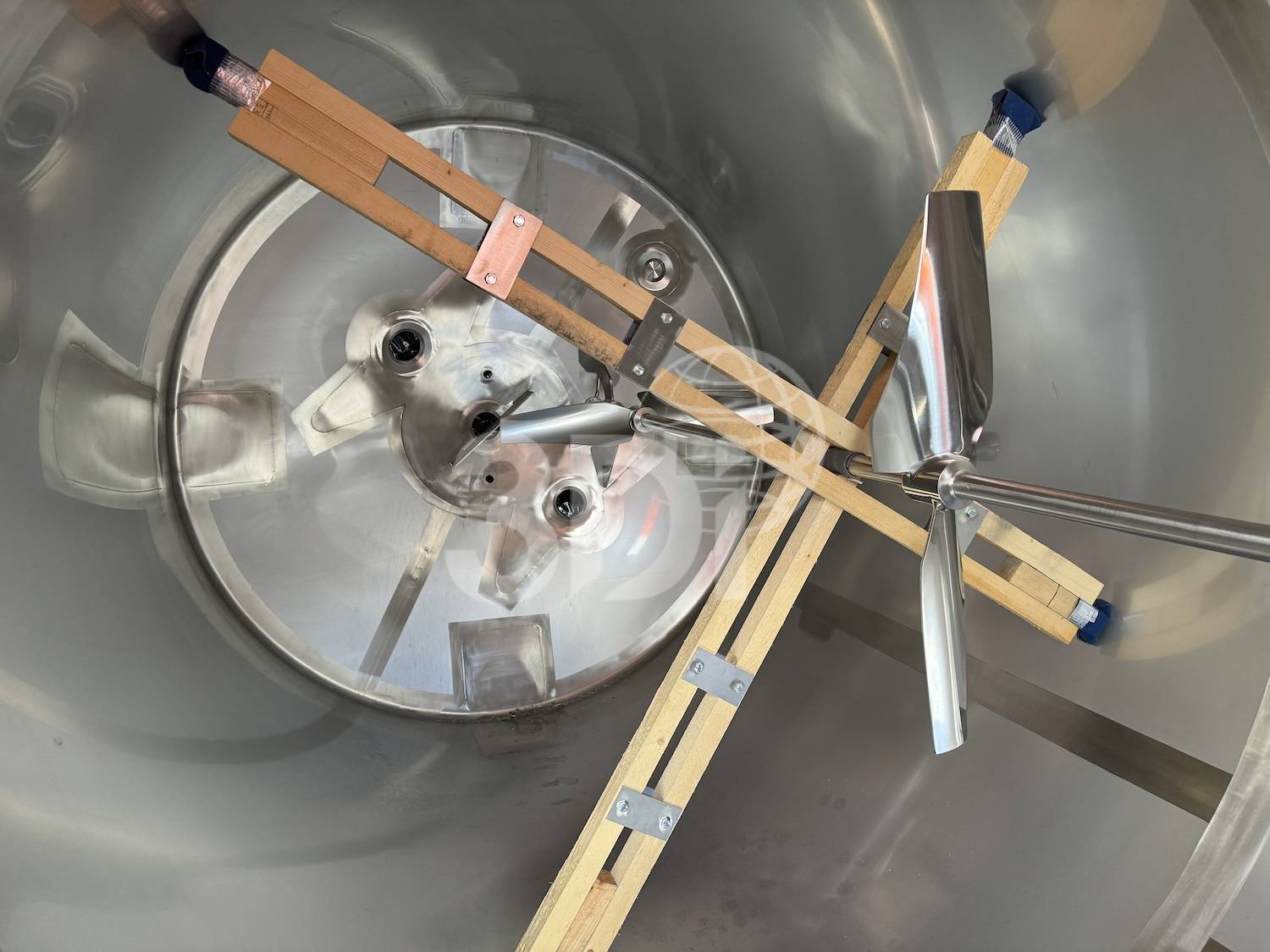

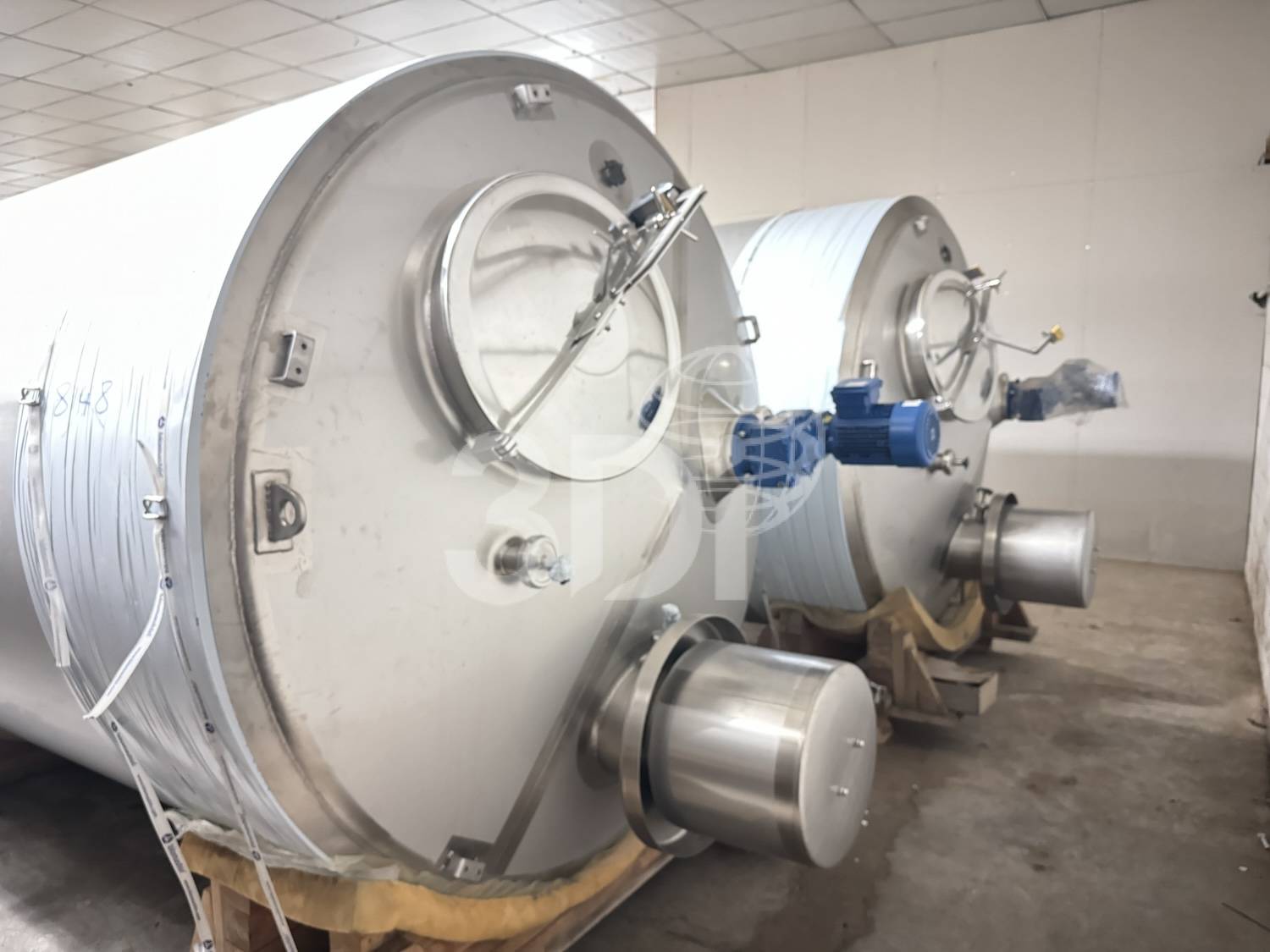

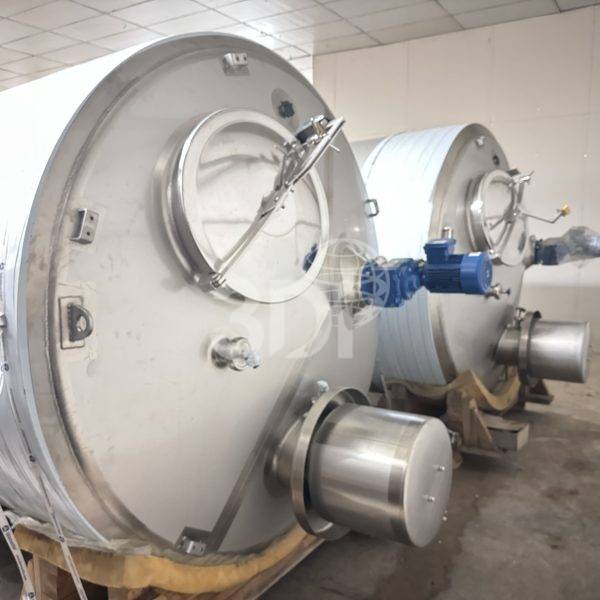

Unused 10,820 Litre Stainless Steel Mixing Tank, manufactured by Biomashin, 2022. Material of construction 316L (1.4404) stainless steel. Orientation vertical, cylindrical, dished ends. Supported on 4 stainless steel legs with adjustable feet. Dimensions 2050mm id, 3000mm on the straight, 5656mm overall height. Working volume 10000 litres, working temperature 95degC, design temperature 100degC, working pressure ATMOS. The mixing tank is insulated with mineral wool and clad in stainless steel. The tank is fitted with an off centre top mounted Alfa Laval twin flighted turbine blade agitator which is powered by a 1.5kw Nord electric motor (3ph, 230/400v, 50hz, 85rpm). The tank has a spray ball, sample valve, air vent and top access hole. Condition as new. Overall dimensions for transport 2200mm width, 2300mm height, 5200mm length.
