2,266 Litre Contra Rotating Mixing Vessel
Specification
| Dimensions | 215 × 215 × 320 cm |
|---|---|
| Condition | Used |
| capacity | 2266 |
| Capacity Type | Litres |
| manufacturer | Websters |
| Build Year | 1994 |
Description

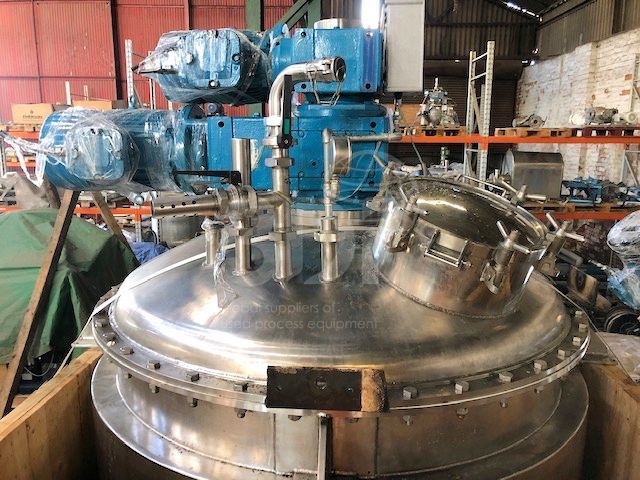

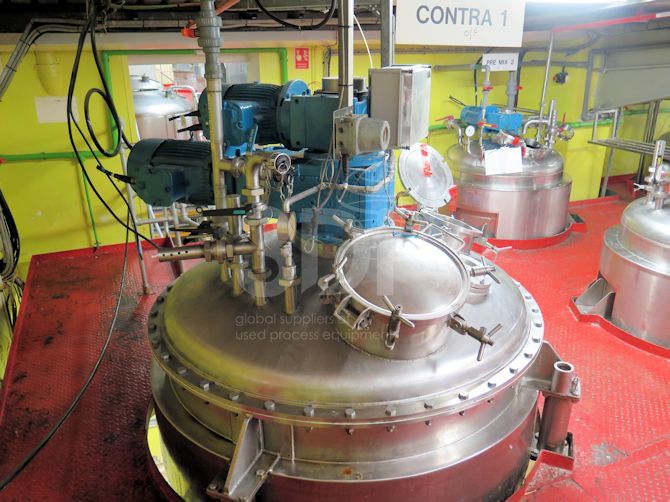

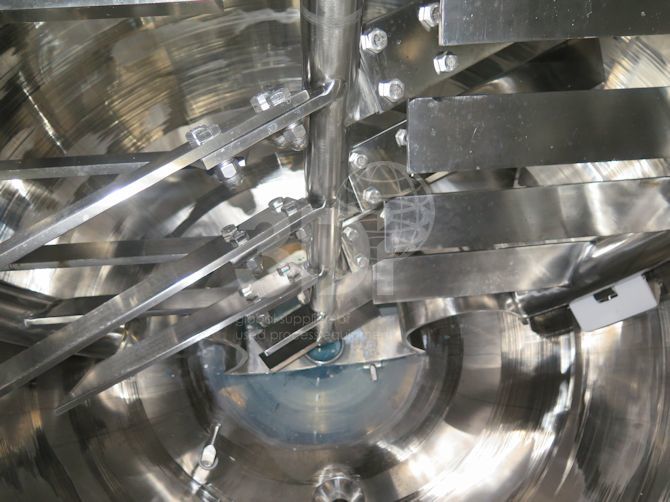

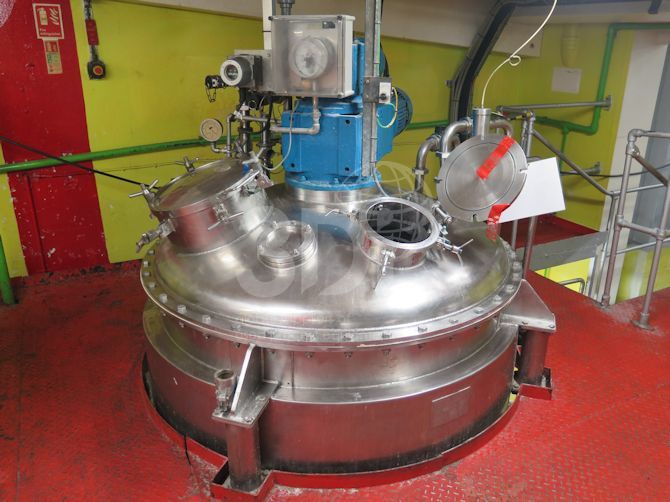

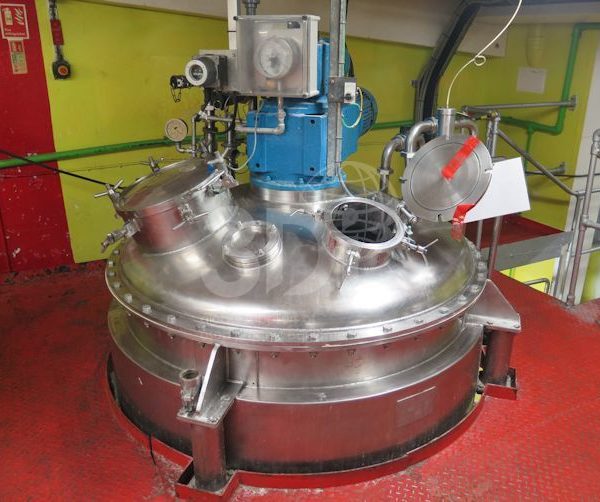

Used 2,266 Litre Contra Rotating Mixing Vessel, manufactured by Websters, 1994. Material of construction 316 stainless steel. Orientation vertical, hemispherical base and dished bolted top. Supported with 4 side supports. Dimensions 1650mm internal diameter, 2600mm overall height. Design code BS5500 Cat 3, vessel design pressure 1.1bar/FV, jacket design pressure 3.3bar/FV, design temperature 147degC, test pressure vessel 3.3bar, test pressure jacket 5.26bar. Vessel is fitted with a top mounted scraped surface mixer and contra rotating mixer. The contra rotating agitator is powered by a variable speed 1.1kw/5.5kw electric motor. The scraped surface agitator is powered by a variable speed 5.5kw/11kw electric motor. Previously used on gels.
