31,750 Litre Stainless Steel Storage Tank
Specification
| Condition | Used |
|---|---|
| capacity | 31750 |
| Capacity Type | Litres |
| manufacturer | Sinclair Stainless |
| Build Year | 1998 |
| material | Stainless Steel |
Description

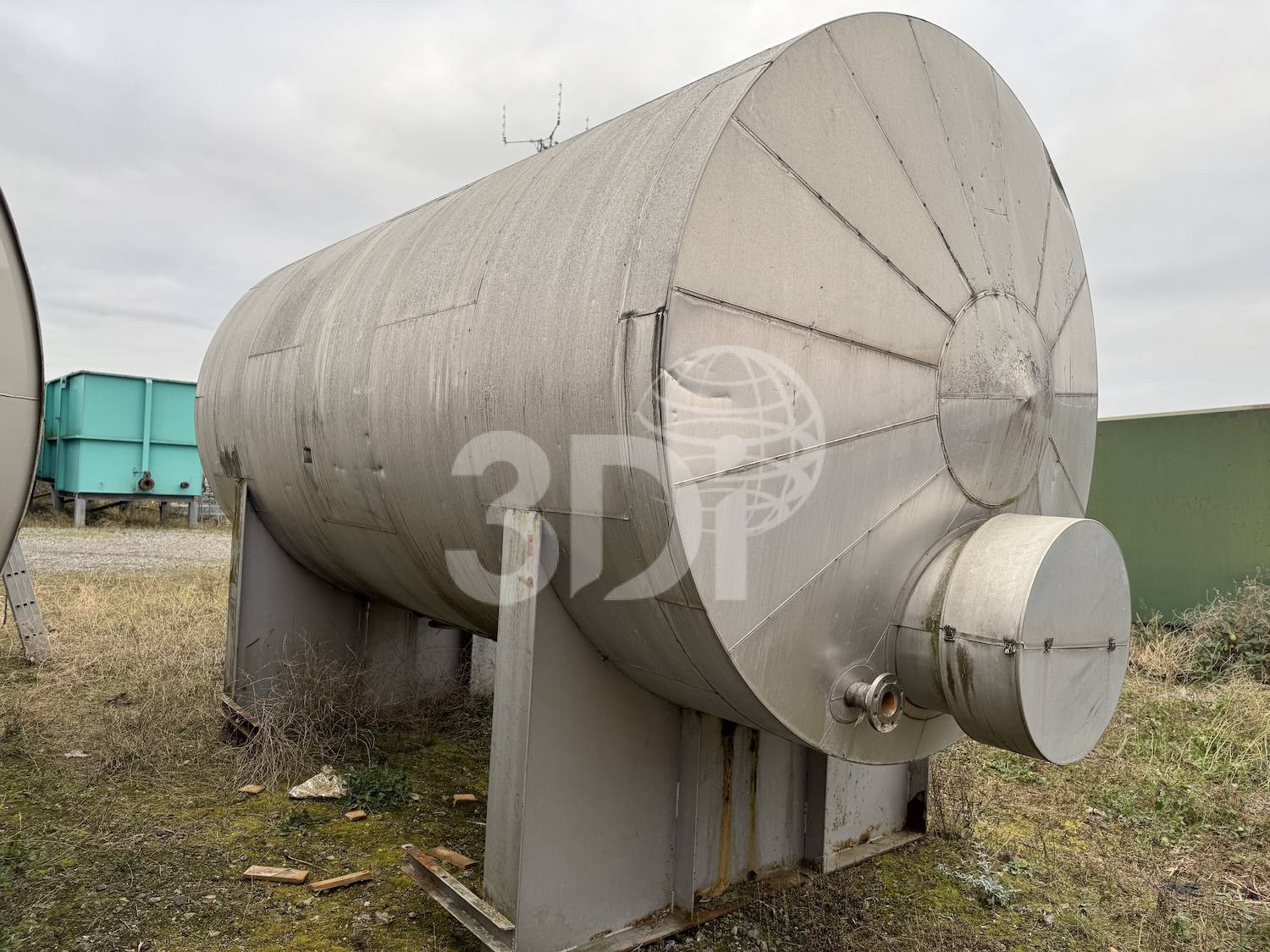

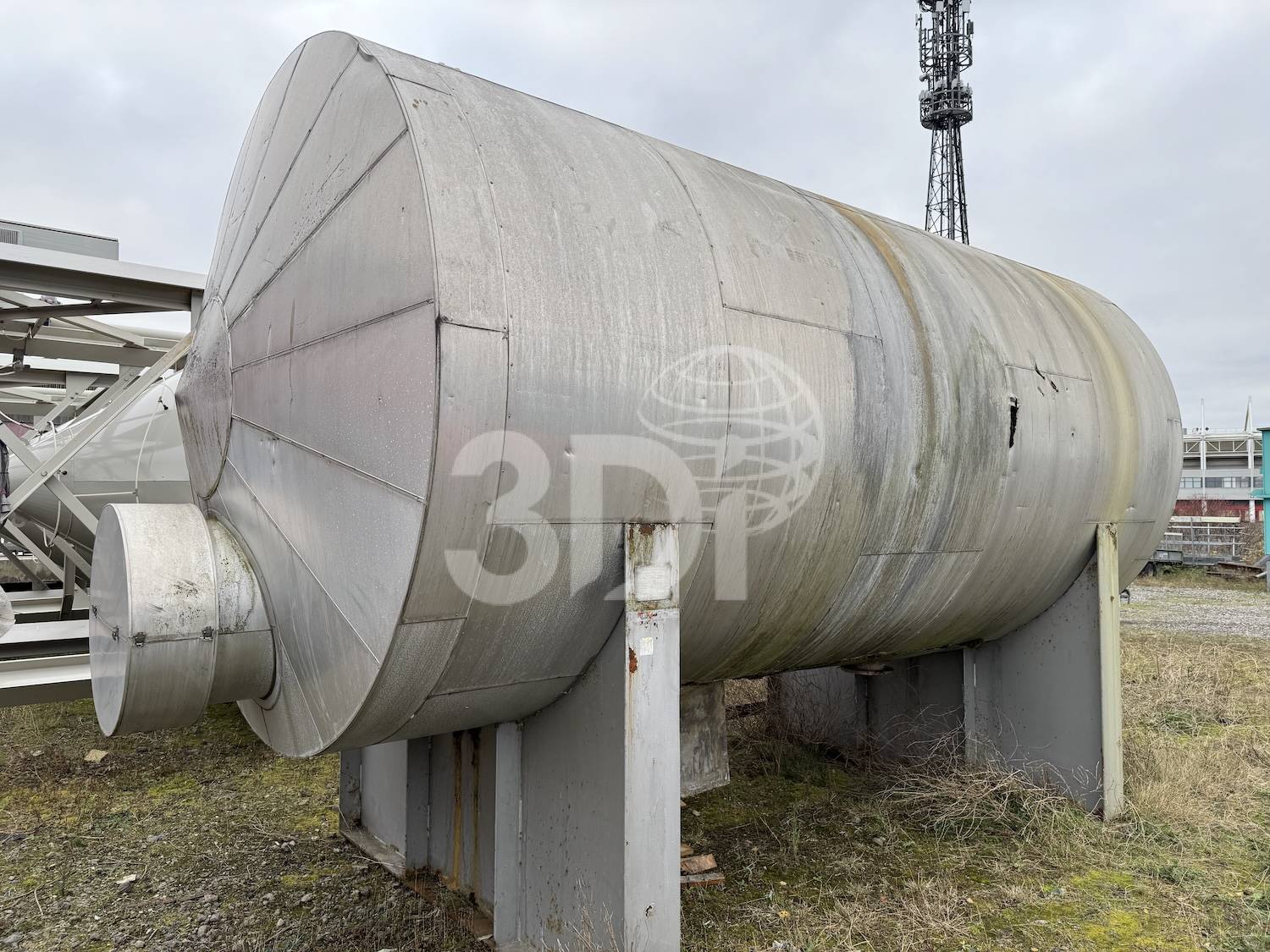

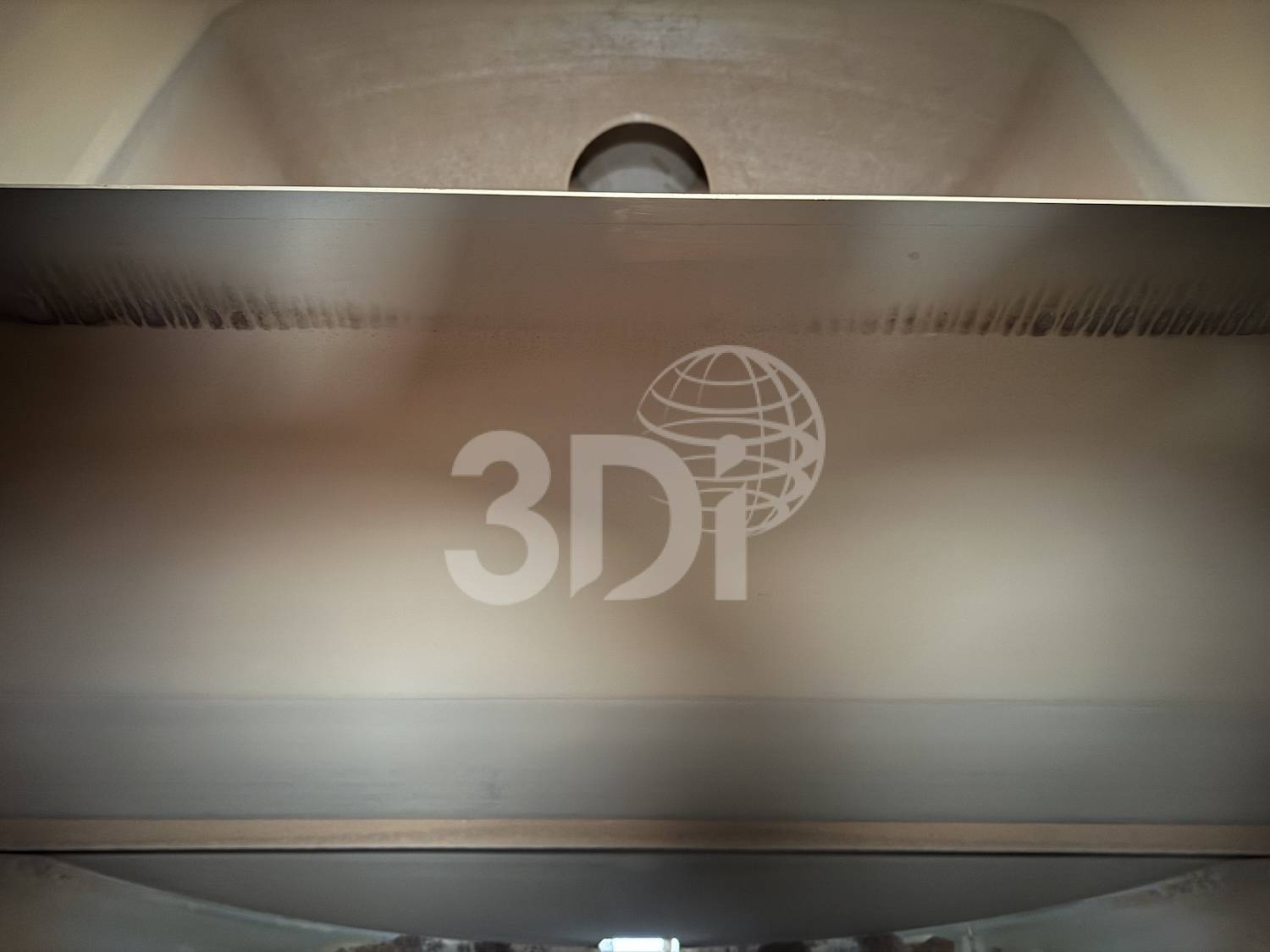

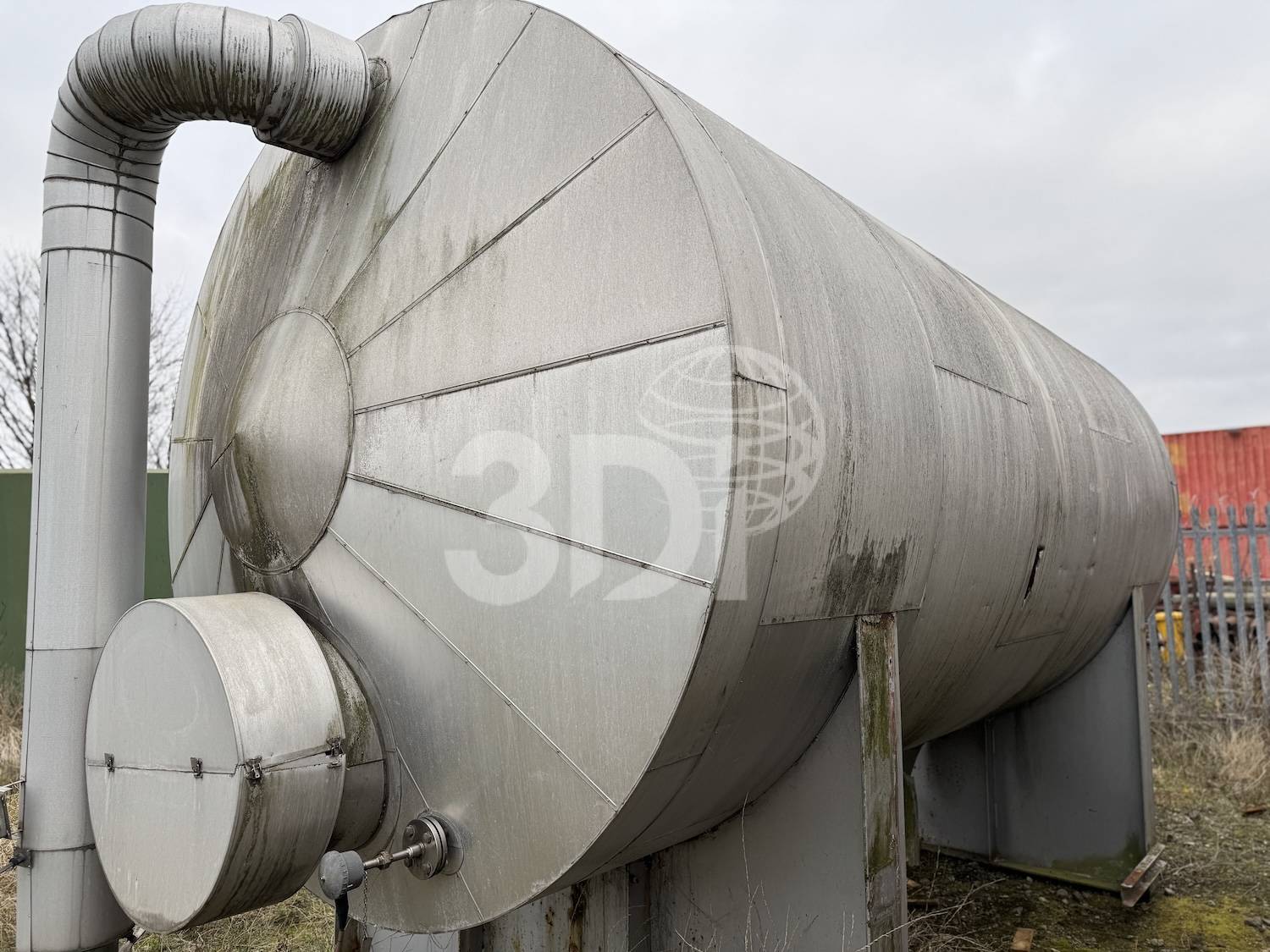

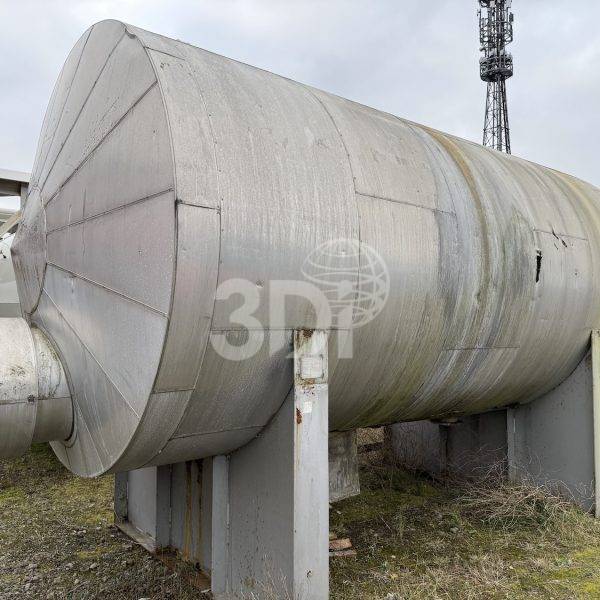

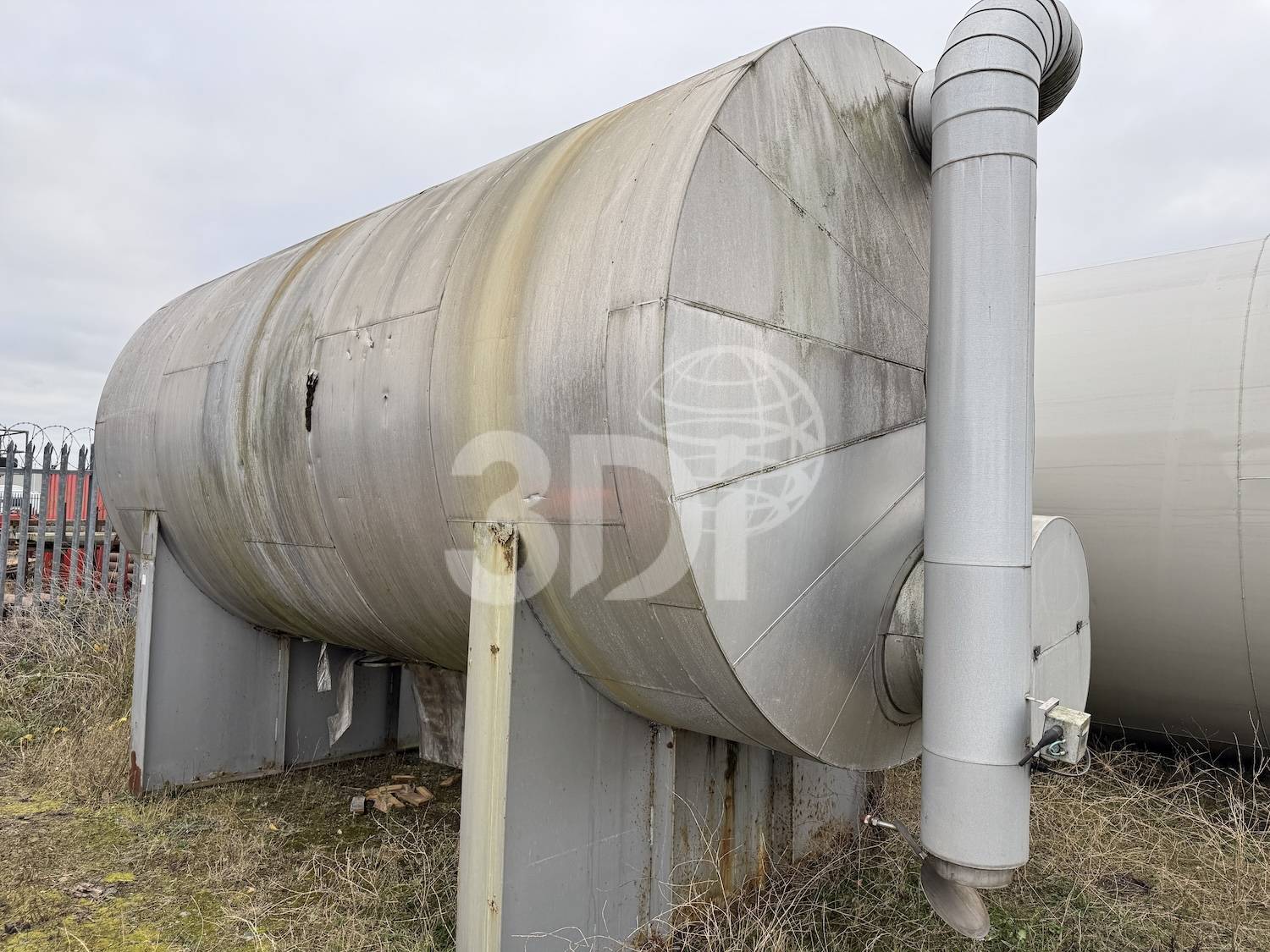

Used 31,750 Litre Stainless Steel Storage Tank, manufactured by Sinclair Stainless Fabrications Ltd, 1998. Material of construction stainless steel. Orientation horizontal, cylindrical, dished ends. Support on two cradles. Design code Good engineering practice, design pressure atmospheric, design temperature -22 to 128degC. Dimensions 2950mm width, 5345mm on the straight, 3800mm height, 6800mm overall length, 3550mm cradle centre, 250mm wide cradle, 800mm flanged outlet to floor. Connections: 2 x 200mm bottom outlet, 1 x 80mm dished end outlet, 2 x dished end access hatch, 2 x 260mm top fill pipe, 2 x 215mm top inlet, 1 x 50mm top inlet, 1 x 25mm top inlet, 1 x 200mm overflow pipe. The storage tank is fitted with a baffle internally and is trace heated, insulated and clad in aluminium. Previously used as a chilled water receiver tank.
