32,400 Litre Stainless Steel Mixing Vessel
Specification
| Condition | Unused |
|---|---|
| capacity | 32400 |
| Capacity Type | Litres |
| manufacturer | Sinclair Stainless |
| Build Year | 2014 |
| material | 304L Stainless Steel |
Description

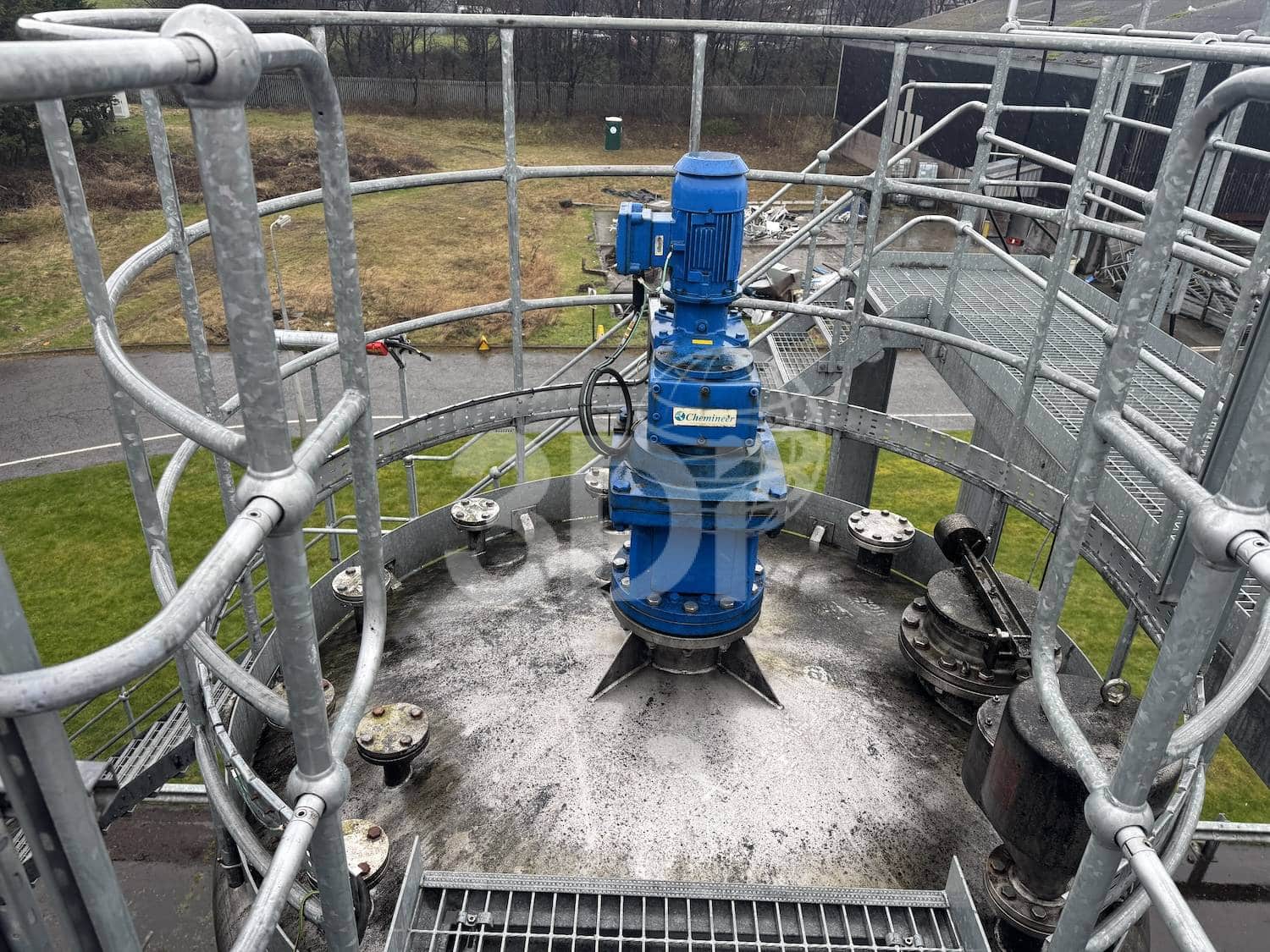

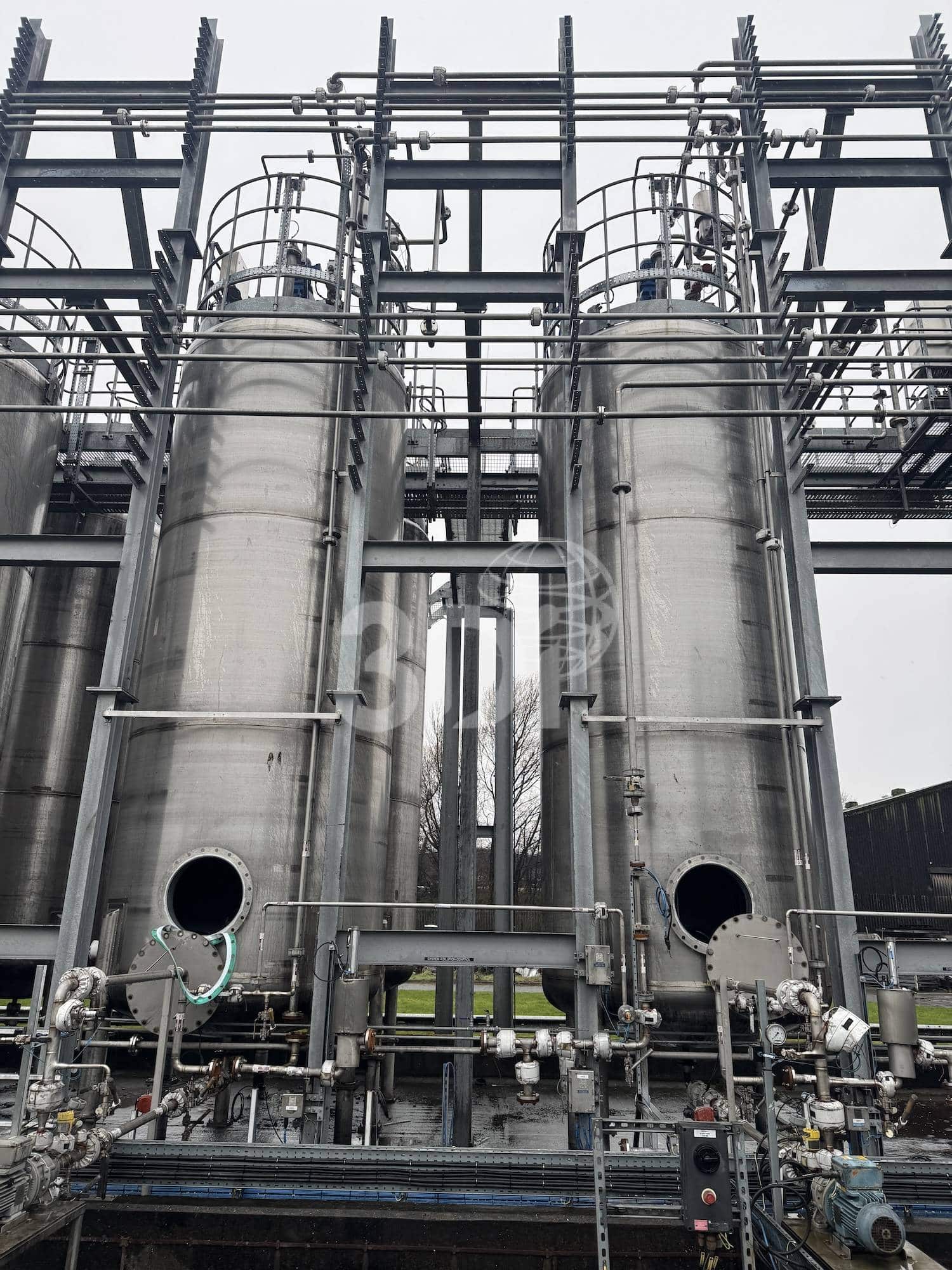

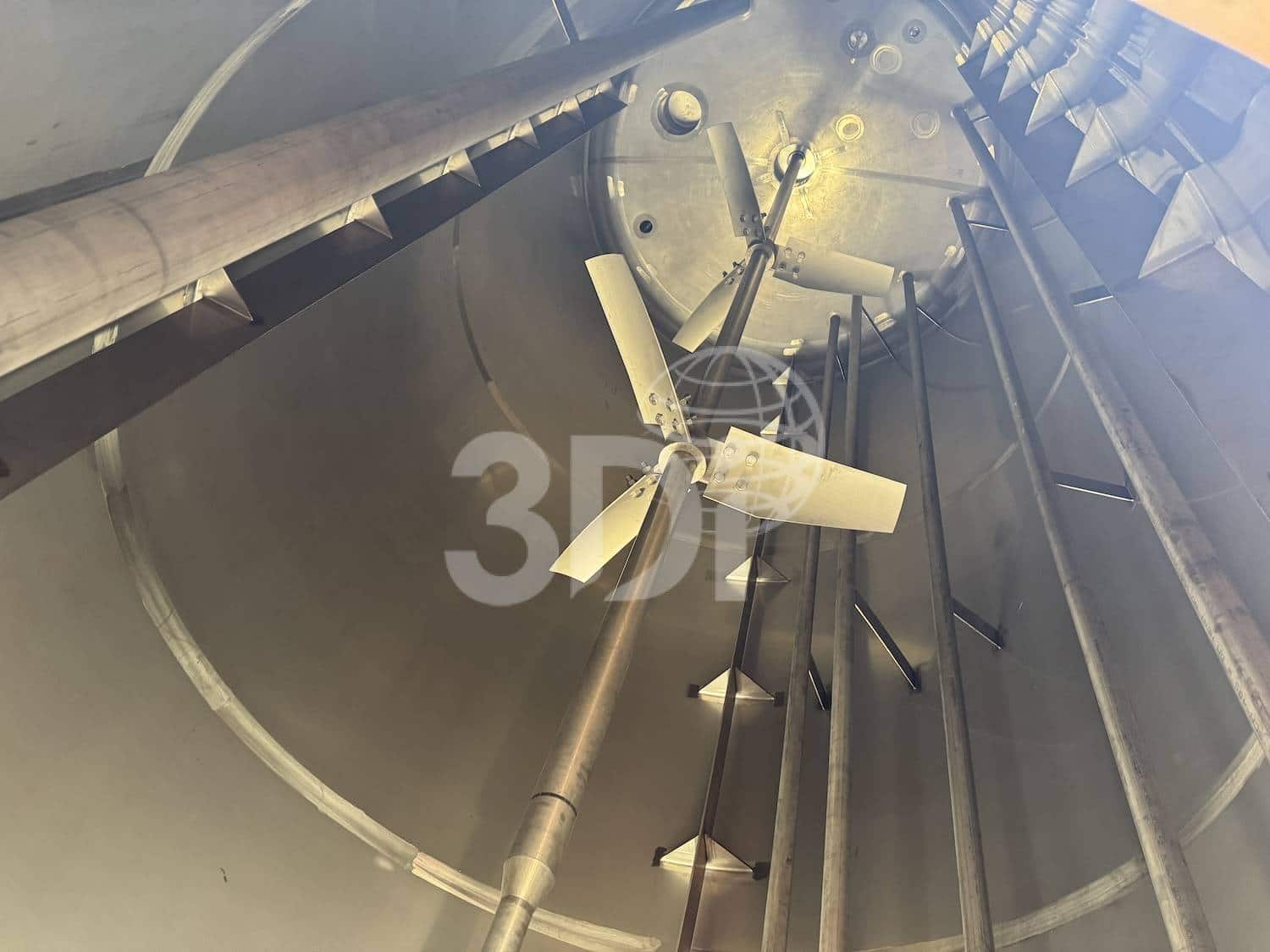

Unused 32,400 Litre Stainless Steel Mixing Vessel, manufactured by Sinclair Stainless Fabrications Ltd, 2014. Material of construction 304L grade stainless steel. Orientation vertical, cylindrical, dished top and bottom. Support on 4 stainless steel legs. Dimensions 2500mm internal diameter, 6100mm on the straight side, 9950mm overall height. Design code BS EN13445/ASME, design pressure 0.1/-0.01 bar, design temperature 50/-20degC, operating pressure Atmospheric. The mixing vessel is fitted with a top centre mounted Chemineer triple flighted 3 bladed turbine agitator, powered by a 1.5kw WEG ATEX electric motor, internal fill pipes, internal baffles. The mixing vessel has a top mounted Universal DN250 emergency vent valve and a Protego VD/SV80 pressure and vacuum relief valve. The mixing vessel is unused and in good condition.
