Stock #2991
4 In Stock
32,400 Litre Stainless Storage Tank
Specification
| Condition | Used |
|---|---|
| capacity | 32400 |
| Capacity Type | Litres |
| manufacturer | Sinclair Stainless |
| Build Year | 2014 |
| material | 304L Stainless Steel |
Description

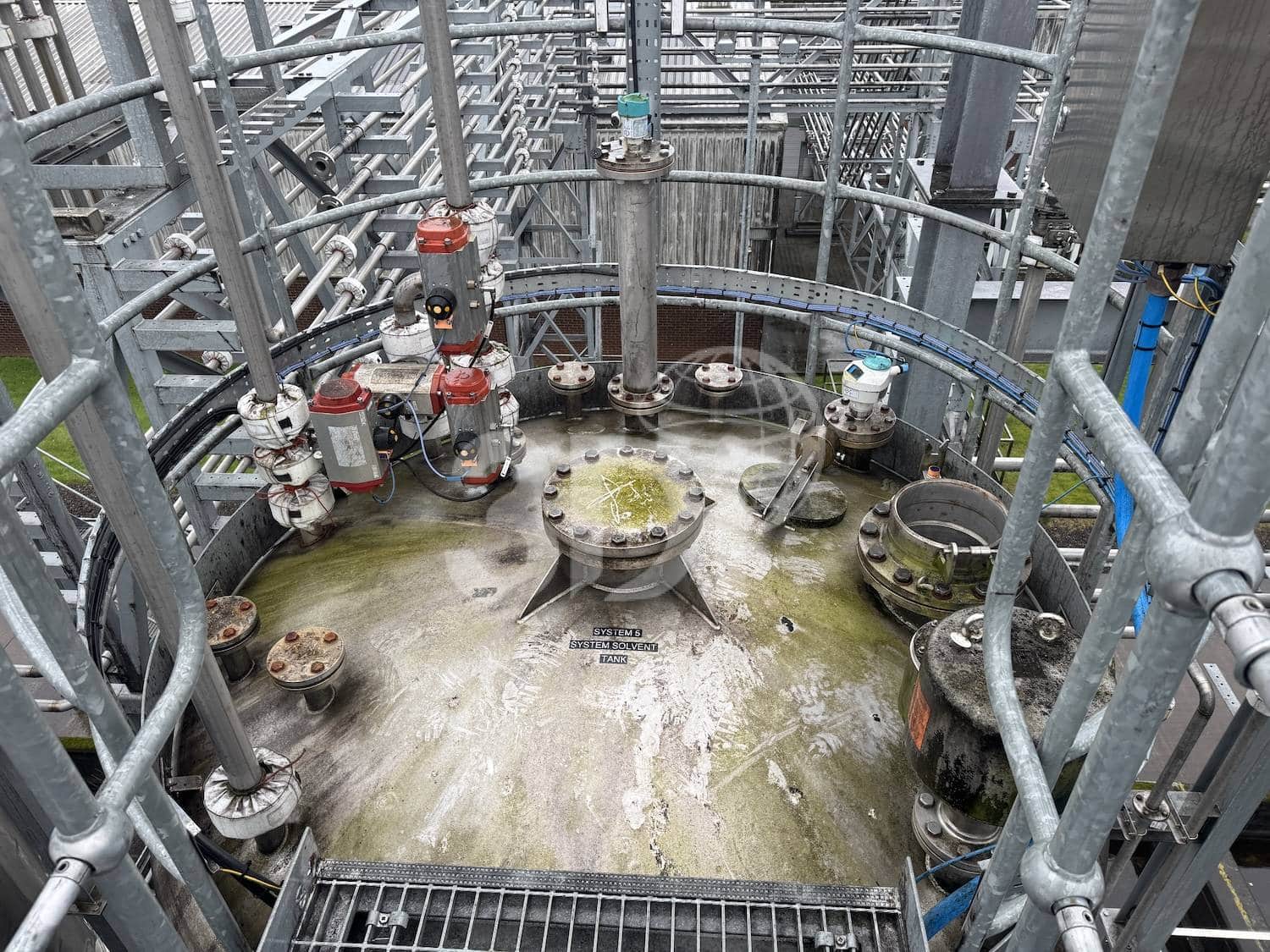

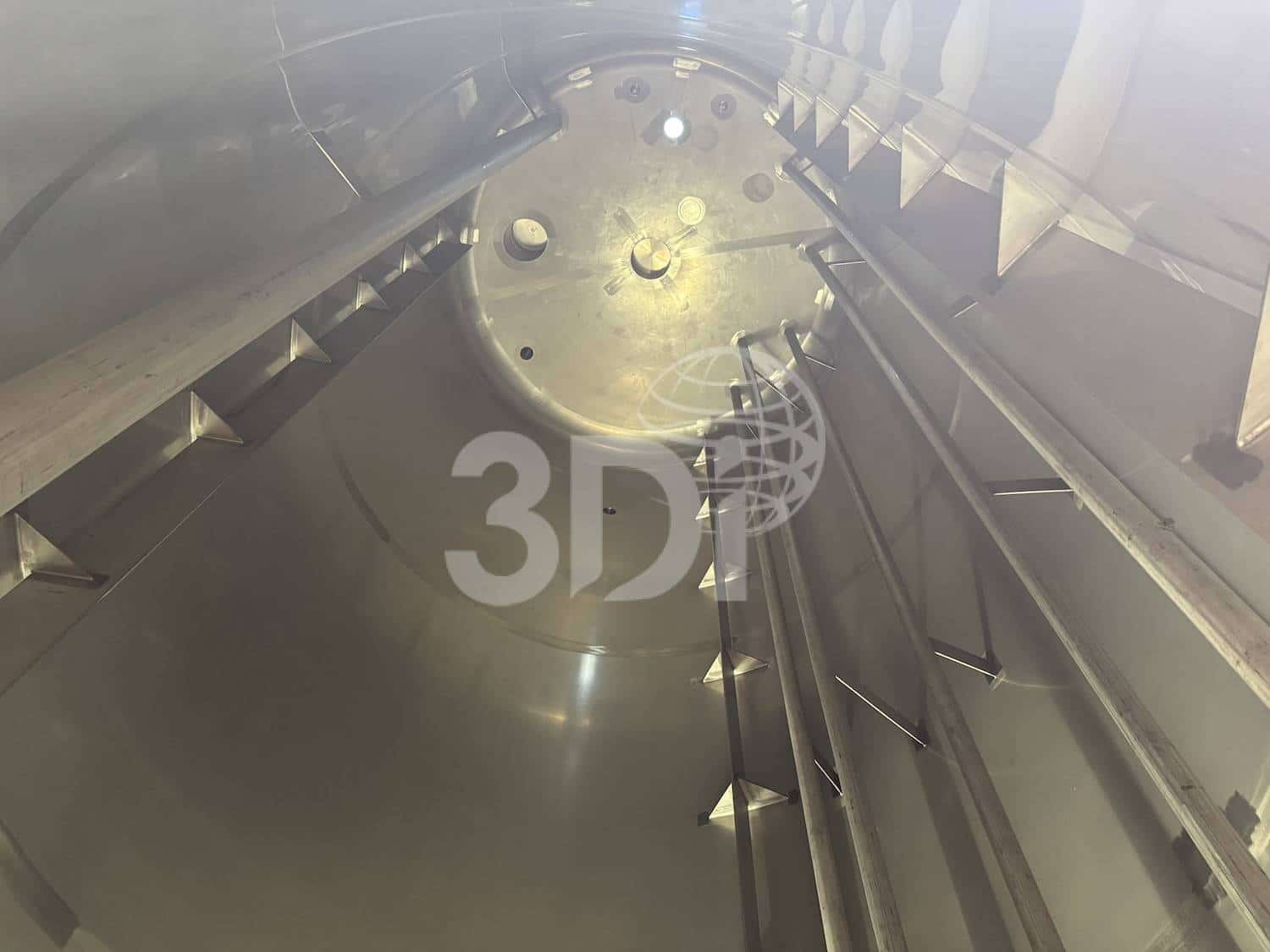

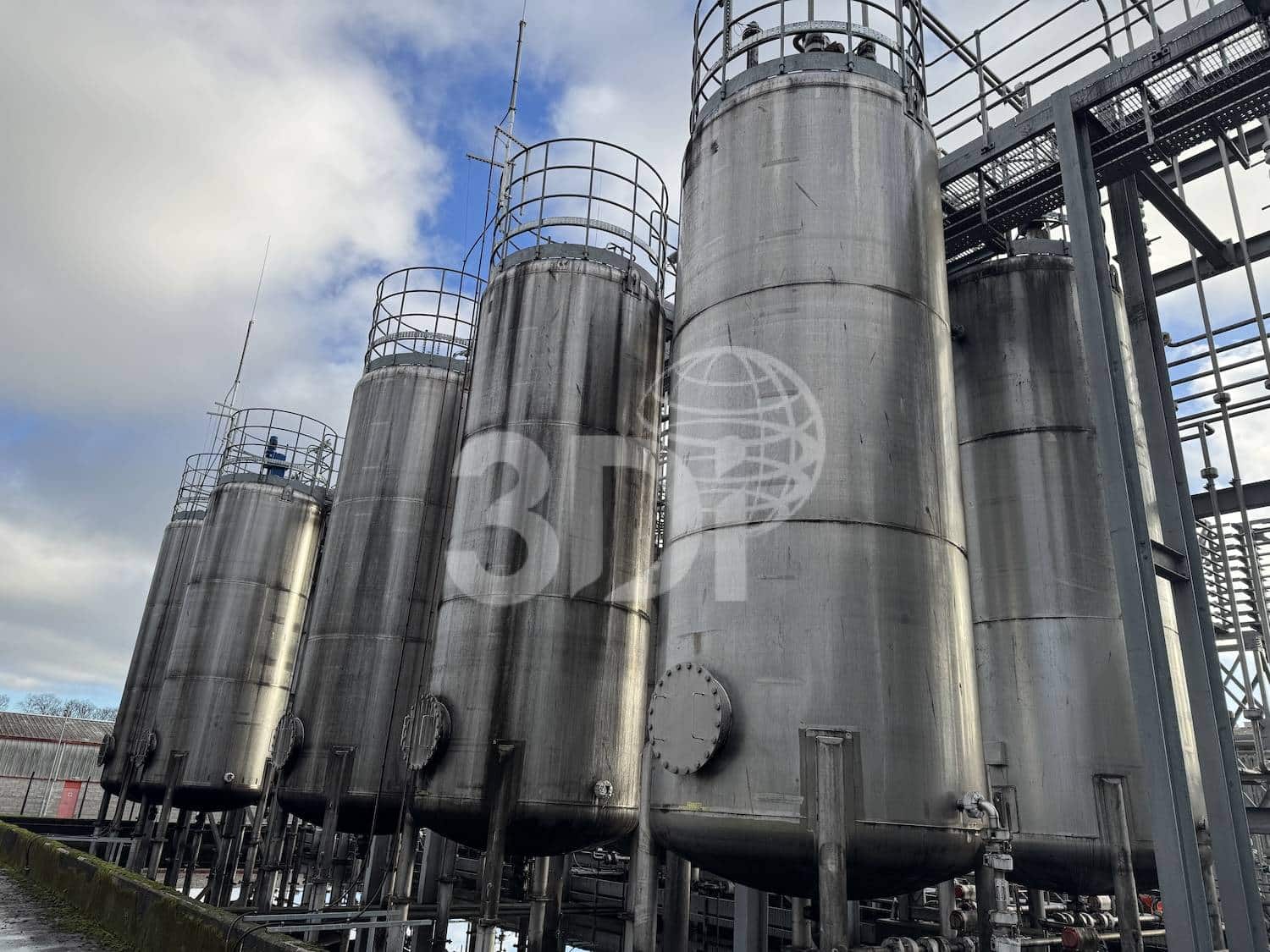

Used 32,400 Litre Stainless Storage Tank, manufactured by Sinclair Stainless Fabrications Ltd, 2014. Material of construction 304L grade stainless steel. Orientation vertical, cylindrical, dished top and bottom. Support on 4 stainless steel legs. Dimensions 2500mm internal diameter, 6100mm on the straight side, 9950mm overall height. Design code BS EN13445/ASME, design pressure 0.1/-0.01 bar, design temperature 50/-20degC, operating pressure Atmospheric. The storage tank is fitted with internal fill pipes, internal baffles, top mounted Universal DN250 emergency vent valve and Protego VD/SD 80 pressure and vacuum relief valve. The tank was previously used to store solvents.
