4,000 Litre Jacketed Stainless Process Vessel
Specification
| Condition | Used |
|---|---|
| capacity | 4000 |
| Capacity Type | Litres |
| manufacturer | Gilwood (Fabricators) Company |
| material | 304 Stainless Steel |
Description

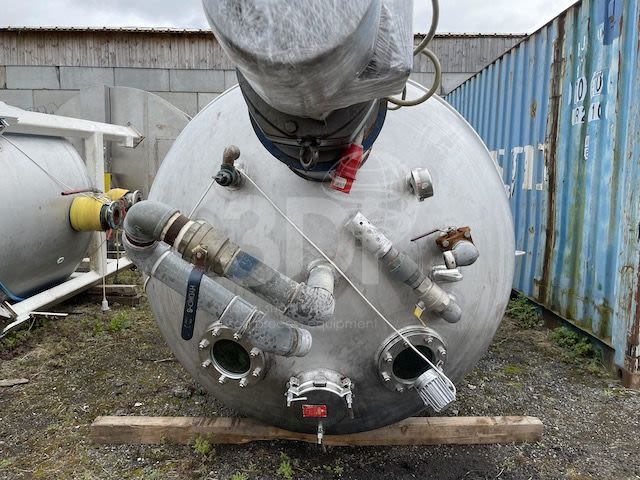

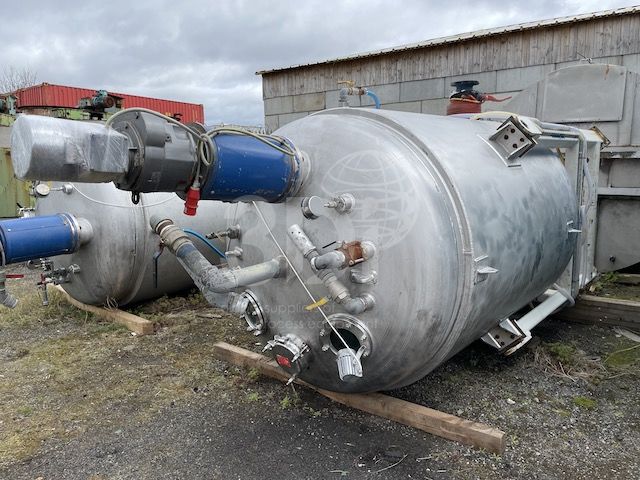

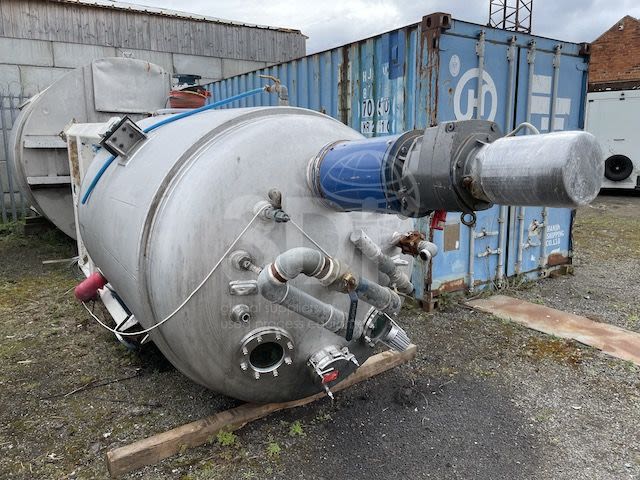

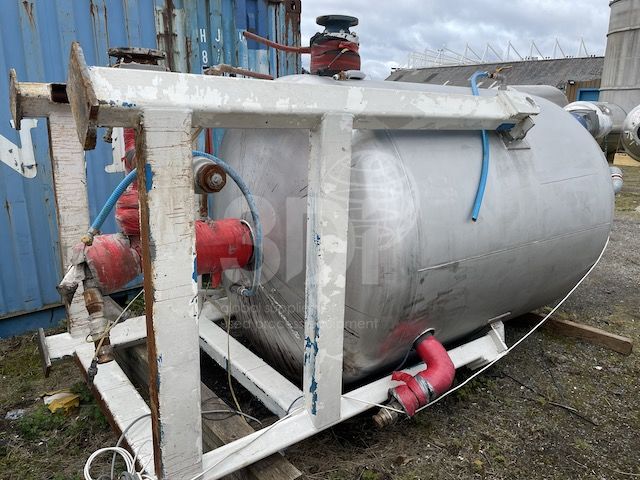

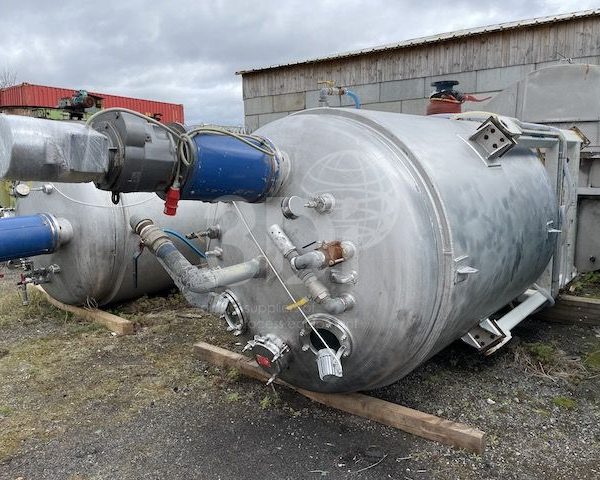

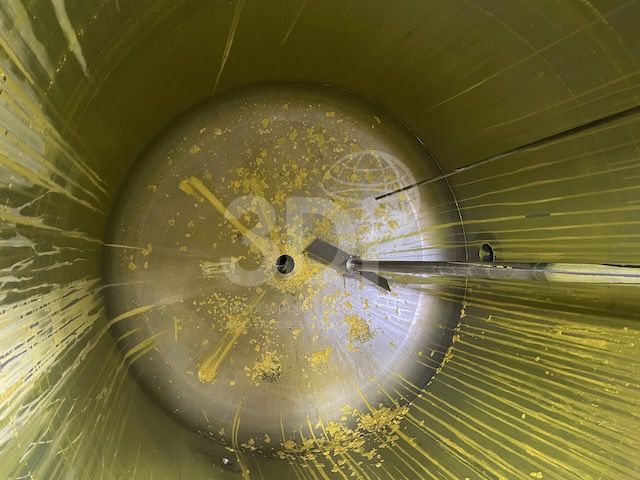

Used 4,000 Litre Jacketed Stainless Process Vessel, manufactured by Gilwood (Fabricators) Company Ltd, 1998. Material of construction 304 stainless steel. Orientation vertical, cylindrical, dished ends. Supported on a steel framed base. Design code BS5500 CAT 2 (1997), vessel design temperature 10degC/+40degC, jacket design temperature 20degC/+45degC, design pressure 6 bar, jacket design pressure 1 bar. The vessel is fitted with a top mounted off-centre agitator with two blade axial flow impeller. The agitator is powered by a 4kw Brook Hansen electric motor (3ph, 50/60hz, 1420/1710rpm) and Brook Hansen gearbox, Type SCE44B, 139.5 rpm. Vessel shell and dish thickness 7.8mm, jacket thickness 3.8mm. The vessel was previously used to mix chemicals.
